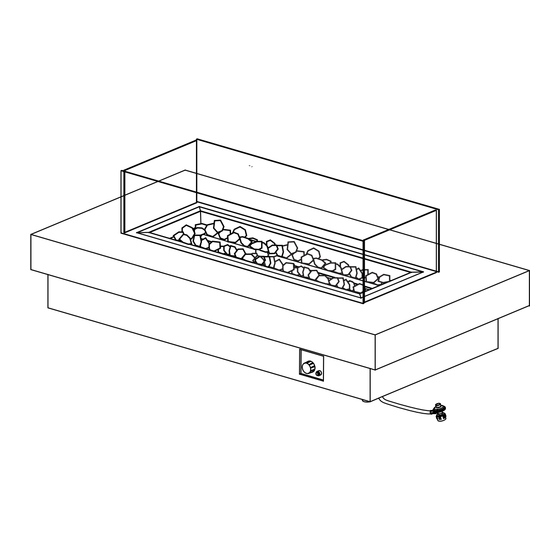

Makena Propane Fire Table Owner's Manual

Large Rectangle Style # 42100271/ 42100130

For Technical Support call

1-800-654-1704

Warning:

For outdoor use only

DO NOT use for cooking

DO NOT use under any

overhead enclosure

Designed and Engineer

Real Flame. Manufactured as

Model # 11564LP

020417

If the information in this manual is not

followed exactly, a ﬁre or explosion

may result causing property damage,

personal injury or loss of life.

Installation and service must be

performed by a qualiﬁed installer,

service agency or gas supplier.

Improper installation, adjustment,

alteration, service or maintenance can

cause injury or property damage.

DANGER

If you smell gas:

1. Shut oﬀ gas to the appliance.

ed by

away from the appliance and

immediately call your gas supplier

or ﬁre department.

Warning:

Read the installation, operation

and maintenance instructions

thoroughly before installing or

servicing this equipment.

Save these instructions for future

reference. If you are assembling

this unit for someone else, give

this manual to him or her to read

and save for future reference.

WARNING

Do not store or use gasoline or other

ﬂammable vapors and liquids in the

vicinity of this or any other appliance.

An LP-cylinder not connected for use

should not be stor

this or any other appliance.

PO: ______________

ed in the vicinity of

Table of Contents

Need help?

Do you have a question about the 11564LP1 and is the answer not in the manual?

Questions and answers

Summary of Contents for RealFlame 11564LP1

Page 1 PO: ______________ Makena Propane Fire Table Owner’s Manual Large Rectangle Style # 42100271/ 42100130 For Technical Support call 1-800-654-1704 Warning: Warning: If the information in this manual is not Read the installation, operation For outdoor use only followed exactly, a ﬁre or explosion and maintenance instructions may result causing property damage, thoroughly before installing or...
Page 2: Table Of Contents
Never use this appliance in an enclosed space such as a camper,tent,car or home. SPECIFICATIONS Product Name Type of Gas Makena Rectangle Extra Large Propane (LP) Model No. Gas Supply 11564LP1 20 lb LP-Gas Cylinder Rated Heat Output 65,000 btu/hr...
Page 3: Important Safety Information
Important Safety Information WARNING FIRE TABLE IS FOR OUTDOOR USE ONLY • WARNING Failure to follow the dangers, warning and cautions in this manual may result in serious bodily injury or death, or in a ﬁre or an explosion causing damage to property. •...
Page 4 Important Safety Information (Continued) • This gas ﬁre table must be used ONLY outdoors in a well-ventilated space and shall NOT be used inside a building, garage, or any other enclosed area. • DO NOT use this outdoor gas ﬁre table for indoor heating. TOXIC carbon monoxide fumes can accumulate and cause asphyxiation.
Page 5: Propane (Lp) Gas Dangers And Warnings
Important Safety Information (Continued) • Prior to each ﬁre table operation, check the hose for evidence of excessive abrasion or wear. Use a handheld mirror to see hose sections located under the unit. If the hose is damaged, cracked or cut, it must be replaced before using the gas ﬁre table. The hose assembly can only be replaced with a hose assembly speciﬁed by the manufacturer.
Page 6 Propane (LP) Dangers And Warnings (Continued) • The LP gas tank must have a tank collar to protect the tank valve. Cylinder Valve Outlet and Inlet Connection, ANSI/CGA-V-1-1977, CSA B96. • The LP gas tank should not be dropped or handled roughly. •...
Page 7: Hose And Regulator Assembly And Replacement
Hose & Regulator Assembly And Replacement 1. This ﬁre table comes equipped with a standard LP gas hose and regulator including the appliance side connection for a CGA No 791 Cylinder Connection Device. The LP gas hose and regulator supplied with this ﬁre table must be used. Only a hose and regulator speciﬁed by manufacturer can be used for replacement.
Page 8: Parts List
Parts List Table Top LMST 115644796A Control Knob 95600939 WSLT 115644396A Tank Seat 95600940 Table Base LMST 115644796B LP Hose and 95600934 WSLT 115644396B Regulator Glass Panels 49510992 Lava Rock (20lb) 66450999 2 boxes Feet 95600931 1 set AA Battery Igniter Button 95600938 Touch-up Paint...
Page 9: Assembly Instructions
Assembly Instructions Place lava rock by hand. DO NOT dump bag out into tray to avoid clogging the burner with dust. Position the lava rock across the burn pan to a level about 1” above the top of the burner. Make sure that you do not block the igniter housing with lava rock to ensure proper ignition.
Page 10 Assembly Instructions 3.) Install the AA battery as shown in the diagram below. 4.) Place LP tank a. Place the tank seat on the ground and place a 20lb. propane tank into the tank seat. a. Tighten down the screw on the side of the tank seat to secure the propane tank.
Page 11 Assembly Instructions 5.) Connecting the LP Gas Tank Check to make sure there is no debris in the head of the LP gas tank or in the head of the regulator valve. Make sure you check the burner and burner ports as well. Connect gas line to tank by turning knob clockwise.
Page 12 Pre-Use Instructions WARNING Before using this outdoor ﬁre table, make sure you have read, understand and are following all information provided in the Important Safety Information section of this manual. Failure to follow those instructions can cause death, serious injury or property damage. Prior to each gas ﬁre table operation, check the hose and valve for evidence of excessive abrasion or wear.
Page 13 Lighting Instructions Using the igniter 1. Read and understand all operating instructions before lighting. 2. Burner control knob must be in the “OFF” position. 3. Connect propane (LP) cylinder (see previous pages). 4. Slowly open valve on LP gas cylinder. 5.
Page 14: Care And Cleaning
Care and Cleaning Inspecting product life. WARNING DO NOT inspect this outdoor re table until the re is COMPLETELY out. 1. Make sure all parts are securely fastened in place. If a part moves when touched, check its connection points to see if they are lose.
Page 15: Gas Component Connection Checks
Gas Component Connection Checks If the burner will not light or stay lit, please perform the following checks. 1. Make sure the electrode wire is correctly and completely connected. Back of Electronic Ignition 2. Make sure that the igniter housing is unobstructed. Clear any debris on top of the igniter housing and make sure there is no debris between the igniter pin, thermocouple and the burner tube.
Page 16 Gas Component Connection Checks Gas Component Connection Checks Thermocouple Thermocouple Igniter Pin Igniter Pin 3. Make sure that the igniter pin and thermocouple are correctly positioned. 3. Make sure that the igniter pin and thermocouple are correctly positioned. - The igniter pin should be pointed straight to the thermocouple. - The igniter pin should be pointed straight to the thermocouple.
Page 17: Troubleshooting
Troubleshooting Problem: Burner will not light using igniter Possible Cause 1: Electrode and burners are wet. -Wipe dry with cloth. Possible Cause 2: Igniter battery is dead or backwards. -Check that the AA battery is inserted correctly in the igniter (see page 10) or replace the battery.
Page 18 Troubleshooting Problem: Sudden drop in gas ﬂ ow, or a reduced ﬂ ame height Possible Cause 1: Out of gas. - Reﬁll or exchange your LP tank. Possible Cause 2: Excess ﬂ ow safety device may have been activated. if the ﬂame goes out. In order for the unit to work ﬂames must be contacting the thermocouple located in the igniter housing.
Page 19 Warranty & Return Policies Warranty Real Flame® Company warrants Real Flame gas ﬁreplaces and accessories to be free from defects in parts under normal use and service for a period of 2 years from the date of purchase and defective from ﬁnish issues for a period of 5 years from the date of purchase. In the event of such defects Real Flame will, at its option, replace the defective product or refund the purchase price.
Page 20 PO: _______________ Makena Natural Gas Fire Table Owner’s Manual Large Rectangle Style # 42100281/ 42100132 For Technical Support call 1-800-654-1704 WARNING Warning If the information in this manual is not Read the installation, operation For outdoor use only followed exactly, a ﬁre or explosion and maintenance instructions may result causing property damage, thoroughly before installing or...
Page 21: Carbon Monoxide Hazard
Table of Contents Important Safety Information Natural Gas Warnings Parts List and Descriptions Base Assembly Instructions Pre-Use Instructions Assembly Instructions Connecting to Natural Gas Source Lighting Care and Cleaning Gas Component Connection Checks Troubleshooting DANGER CARBON MONOXIDE HAZARD This appliance can produce carbon monoxide which has no odor.
Page 22 Important Safety Information WARNING FIRE TABLE IS FOR OUTDOOR USE ONLY • WARNING Failure to follow the dangers, warning and cautions in this manual may result in serious bodily injury or death, or in a ﬁre or an explosion causing damage to property. •...
Page 23 Important Safety Information (Continued) • This gas ﬁre table must be used ONLY outdoors in a well-ventilated space and shall NOT be used inside a building, garage, or any other enclosed area. • DO NOT use this outdoor gas ﬁre table for indoor heating. TOXIC carbon monoxide fumes can accumulate and cause asphyxiation.
Page 24 Important Safety Information (Continued) • Prior to each ﬁre table operation, check the hose for evidence of excessive abrasion or wear. Use a handheld mirror to see hose sections located under the unit. If the hose is damaged, cracked or cut, it must be replaced before using the gas ﬁre table. The hose assembly can only be replaced with a hose assembly speciﬁed by the manufacturer.
Page 25 Natural Gas Dangers And Warnings (Continued) Never store or use gasoline or other volatile substance in the vicinity of this ﬁre table. Natural Gas Connection tape of the type resistant to the action of the Natural Gas on all male pipe threads. Connect valve at the gas supply.
Page 26 Parts List Table Top LMST 115644777A Control Knob 95600939 WSLT 115644377A NG Hose and 95600936 Table Base LMST 115644777B Quick Connect WSLT 115644377B Lava Rock (20lb) 66450999 2 boxes Glass Panels 49510992 AA Battery Feet 95600931 1 set Touch-up Paint (.75oz) 49490991 WSLT - Igniter Button...
Page 27 Assembly Instructions Place lava rock by hand. DO NOT dump bag out into tray to avoid clogging the burner with dust. Position the lava rock across the burn pan to a level about 1” above the top of the burner. Make sure that you do not block the igniter housing with lava rock to ensure proper ignition.
Page 28 Assembly Instructions 3.) Install the AA battery as shown in the diagram below. 4.) Connecting your ﬁre table to the Natural Gas Source: socket is recommended by the National Fuel Gas Code. Socket connection must be made outdoors. The diagram below shows the main components of a standard Natural Gas system.
Page 29 Assembly Instructions 5.) Connecting the Socket Coat the gas supply pipe nipple with gas resistant pipe compound or approved teﬂon tape. Screw socket onto gas supply pipe (house gas source) as shown to the right, and wrench tighten. The quick disconnect socket should never be connected to the ﬁre table.
Page 30 Pre-Use Instructions WARNING Before using this outdoor ﬁre table, make sure you have read, understand and are following all information provided in the Important Safety Information section of this manual. Failure to follow those instructions can cause death, serious injury or property damage. Prior to each gas ﬁre table operation, check the hose and valve for evidence of excessive abrasion or wear.
Page 31 Lighting Instructions Using the Igniter 1. Read and understand all operating instructions before lighting. 2. Burner control knob must be in the “OFF” position. 3. Connect Natural Gas source (see previous pages). 4. Open the Natural Gas supply to the unit. 5.
Page 32 Care and Cleaning Inspecting product life. WARNING DO NOT inspect this outdoor re table until the re is COMPLETELY out. 1. Make sure all parts are securely fastened in place. If a part moves when touched, check its connection points to see if they are lose.
Page 33 Gas Component Connection Checks If the burner will not light or stay lit, please perform the following checks. 1. Make sure the electrode wire is correctly and completely connected. Back of electronic ignition 2. Make sure that the igniter housing is unobstructed. Clear any debris on top of the igniter housing and make sure there is no debris between the igniter pin, thermocouple and the burner tube.
Page 34 Gas Component Connection Checks (Cont.) Thermocouple Igniter Pin 3. Make sure that the igniter pin and thermocouple are correctly positioned. - The igniter pin should be pointed straight to the thermocouple. - The thermocouple should be positioned 5mm away from the burner tube. Valve Thermocouple Thermocouple Wire...
Page 35 Troubleshooting Problem: Burner will not light using igniter Possible Cause 1: Electrode and burners are wet. -Wipe dry with cloth. Possible Cause 2: Igniter battery is dead. -Check or replace the AA battery in the igniter. (Reference page 9) Possible Cause 3: Igniter Pin cracked or broken - sparks at crack. -Call Real Flame at 1-800-654-1704 for technical support.
Page 36 Troubleshooting Problem: Sudden drop in gas ﬂow, or a reduced ﬂame height Possible Cause 1: Out of Gas. -Call your local gas company. Possible Cause 2: Excess ﬂow safety device may have been activated. -Turn control knob to “OFF”, wait 30 seconds and light outdoor ﬁre table. If the control knob and the gas supply.
Page 37 Warranty & Return Policies Warranty Real Flame® Company warrants Real Flame gas ﬁreplaces and accessories to be free from defects in parts under normal use and service for a period of 2 years from the date of purchase and defective from ﬁnish issues for a period of 5 years from the date of purchase. In the event of such defects Real Flame will, at its option, replace the defective product or refund the purchase price.
