RealFlame 11511LP Owner's Manual

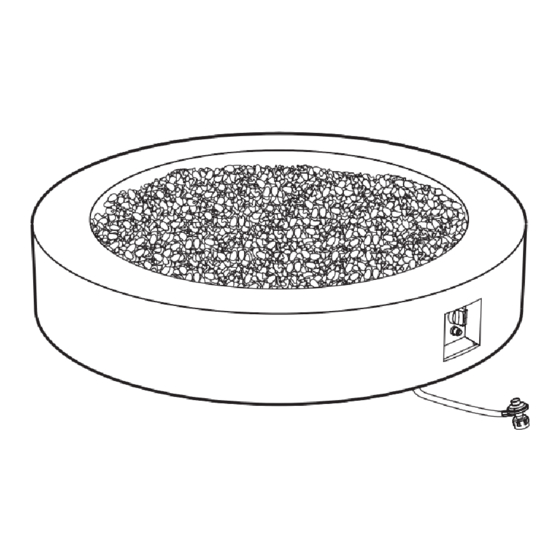

Topanga propane fire table large round style

Hide thumbs Also See for 11511LP:

Owner's manual (37 pages)

Table Of Contents

Quick Links

Download this manual

Topanga Propane Fire Table Owner's Manual

For Technical Support call

1-800-654-1704

Warning:

For outdoor use only

DO NOT use for cooking

DO NOT use under any

overhead enclosure

Designed and Engineer

Real Flame. Manufactured as

Model # 11511LP

Large Round Style # 42100126

If the information in this manual is not

followed exactly, a ﬁre or explosion

may result causing property damage,

personal injury or loss of life.

Installation and service must be

performed by a qualiﬁed installer,

service agency or gas supplier.

Improper installation, adjustment,

alteration, service or maintenance can

cause injury or property damage.

DANGER

If you smell gas:

1. Shut oﬀ gas to the appliance.

2. Extinguish any open ﬂame.

ed by

3. If odor continues, keep

away from the appliance and

immediately call your gas supplier

or ﬁre department.

Warning:

Read the installation, operation

and maintenance instructions

thoroughly before installing or

servicing this equipment.

Save these instructions for future

reference. If you are assembling

this unit for someone else, give

this manual to him or her to read

and save for future reference.

WARNING

Do not store or use gasoline or other

ﬂammable vapors and liquids in the

vicinity of this or any other appliance.

An LP-cylinder not connected for use

should not be stor

this or any other appliance.

PO:

ed in the vicinity of

Table of Contents

Need help?

Do you have a question about the 11511LP and is the answer not in the manual?

Questions and answers

Summary of Contents for RealFlame 11511LP

Page 1 3. If odor continues, keep Real Flame. Manufactured as An LP-cylinder not connected for use away from the appliance and Model # 11511LP should not be stor ed in the vicinity of immediately call your gas supplier this or any other appliance.
Page 2: Table Of Contents
Using it in an enclosed space can kill you. Never use this appliance in an enclosed space such as a camper,tent,car or home. SPECIFICATIONS Product Name Type of Gas Topanga Large Round Propane (LP) Model No. Gas Supply 11511LP 20 lb LP-Gas Cylinder Rated Heat Output 135,000 btu/hr...
Page 3: Important Safety Information
Important Safety Information WARNING FIRE TABLE IS FOR OUTDOOR USE ONLY • WARNING Failure to follow the dangers, warning and cautions in this manual may result in serious bodily injury or death, or in a ﬁre or an explosion causing damage to property. •...
Page 4 Important Safety Information (Continued) • This gas ﬁre table must be used ONLY outdoors in a well-ventilated space and shall NOT be used inside a building, garage, or any other enclosed area. • DO NOT use this outdoor gas ﬁre table for indoor heating. TOXIC carbon monoxide fumes can accumulate and cause asphyxiation.
Page 5: Propane (Lp) Gas Dangers And Warnings
Important Safety Information (Continued) • Prior to each ﬁre table operation, check the hose for evidence of excessive abrasion or wear. Use a handheld mirror to see hose sections located under the unit. to If the hose is damaged, cracked or cut, it must be replaced before using the gas ﬁre table. The hose assembly can only be replaced with a hose assembly speciﬁed by the manufacturer.
Page 6 Propane (LP) Dangers And Warnings (Continued) • The LP gas tank must have a tank collar to protect the tank valve. • LP gas cylinder must contain a shut-o valve as speciﬁed in the Standard for Compressed Gas Cylinder Valve Outlet and Inlet Connection, ANSI/CGA-V-1-1977, CSA B96. •...
Page 7: Hose And Regulator Assembly And Replacement
Hose & Regulator Assembly And Replacement 1. This ﬁre table comes equipped with a standard LP gas hose and regulator including the appliance side connection for a CGA No 791 Cylinder Connection Device. The LP gas hose and regulator supplied with this ﬁre table must be used. Only a hose and regulator speciﬁed by manufacturer can be used for replacement.
Page 8: Parts List
Parts List Fire Table LMST - 115074796G WSLT - 115074396G LP Regulator 115019602 and Hose Feet 115019602 1 set 6 boxes Lava Rock 05603408 AA Battery Tank Seat 115010006...
Page 9: Assembly Instructions
Assembly Instructions 1.) Install the AA battery as shown in the diagram below. 2.) Place the LP tank. a. Place the tank seat on the ground and place a 20lb. propane tank into the tank seat (6). b. Tighten down the screw on the side of the tank seat to secure the propane tank.
Page 10 Assembly Instructions 3.) Connecting the LP Gas Tank Check to make sure there is no debris in the head of the LP gas tank or in the head of the regulator valve. Make sure you check the burner and burner ports as well. Connect gas line to tank by turning knob clockwise.
Page 11 Assembly Instructions Place lava rock by hand. DO NOT dump bag out into tray to avoid clogging the burner with dust. Position the lava rock across the bowl to a level about 1” above the top of the burner. Make sure that you do not block the igniter box with lava rock to ensure proper ignition. Igniter box Lava Rock Warning: 1.
Page 12 Pre-Use Instructions WARNING Before using this outdoor ﬁre table, make sure you have read, understand and are following all information provided in the important Safety Information section of this manual. Failure to follow those instructions can cause death, serious injury or property damage. Prior to each gas ﬁre table operation, check the hose and valve for evidence of excessive abrasion or wear.
Page 13 Lighting Instructions Using the ignitor 1. Read and understand all operating instructions before lighting. 2. Burner control knob must be in the “OFF” position. 3. Connect propane (LP) cylinder (see above pages). 4. Slowly open valve on LP gas cylinder. 5.
Page 14: Care And Cleaning
Care and Cleaning Inspecting product life. WARNING 1. Make sure all parts are securly fastned in place. If a part moves when touched, check its connection points to see if they are lose. 2. Check all gas connections for leaks. 3.
Page 15: Gas Component Connection Checks
Gas Component Connection Checks If the burner will not light or stay lit, please perform the following checks. 1. Make sure the electrode wire is completely and correctly connected. 2. Make sure that the igniter box is unobstructed. Clear any debris on top of the igniter box and make sure there is no debris between the igniter pin, thermocouple and the burner tube.
Page 16 Gas Component Connection Checks Igniter Pin Pilot Light Thermocouple 3. Make sure that the igniter pin and thermocouple are correctly positioned. - The igniter pin should be pointed straight to the thermocouple. - The thermocouple should be positioned 5mm away from the pilot light. Valve Thermocouple Thermocouple Wire...
Page 17: Troubleshooting
Troubleshooting Problem: Burner will not light using igniter Possible Cause 1: Electrode and burners are wet. -Wipe dry with cloth. Possible Cause 2: Igniter battery is dead or backwards. -Check that the AAA battery is inserted correctly in the igniter (see page 10) or replace the battery.
Page 18 Troubleshooting Problem: Sudden drop in gas ﬂ ow, or a reduced ﬂ ame height Possible Cause 1: Out of gas. - Reﬁll or exchange your LP tank. Possible Cause 2: Excess ﬂ ow safety device may have been activated. -Your device is equipped with and automatic safety shuto to prevent gas from ﬂowing if the ﬂame goes out.
Page 19 Warranty & Return Policies Warranty Real Flame® Company warrants Real Flame gas ﬁreplaces and accessories to be free from defects in parts under normal use and service for a period of 2 years from the date of purchase and defective from ﬁnish issues for a period of 5 years from the date of purchase. In the event of such defects Real Flame will, at its option, replace the defective product or refund the purchase price.

This manual is also suitable for:

42100126
