Starkey tour Operation Manual

Mini bte (behind-the-ear)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

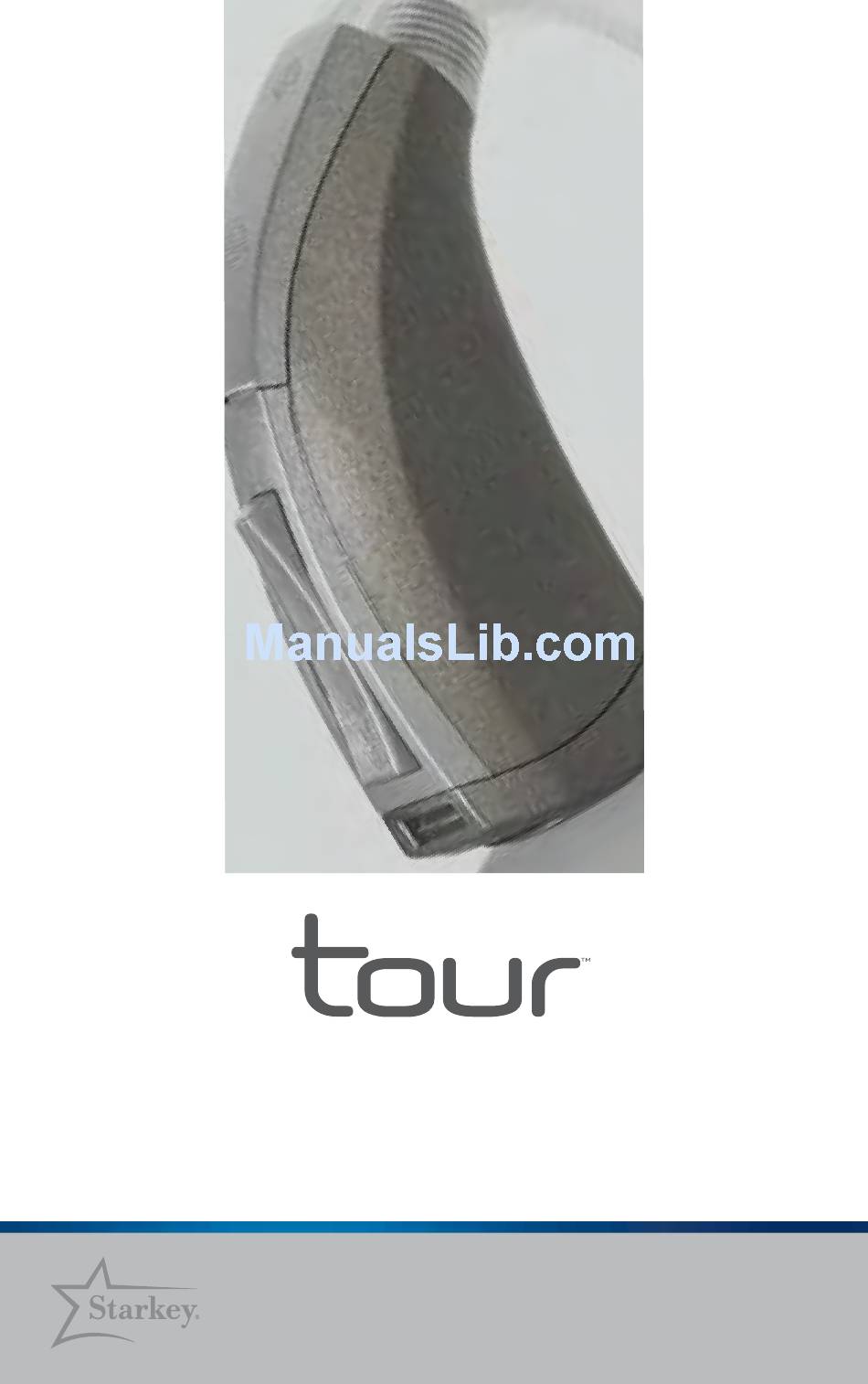

mini BTE
(Behind-The-Ear)
OPERATIONS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the tour and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Starkey tour

Summary of Contents for Starkey tour

  • Page 1 mini BTE (Behind-The-Ear) OPERATIONS MANUAL...

  • Page 3: Table Of Contents

    Table of Contents Overview Features, Controls and Identification ......... 4 mini BTE Overview ............. 5 Preparation Batteries ................6 Battery Indicator Tones............8 Tamper Resistant Battery Compartment ......8 Insertion and Removal Custom Earmold ............. 10 Instant Fit Earbud or Custom Eartip ........ 13 Operation On &...

  • Page 4: Overview

    Overview Features, Controls and Identification Your hearing instrument controls include: 1. Earhook 2. Microphones 3. Switch 4. Battery compartment (on/off control) 5. Side indicator is for RIgHT ear, BLUE is for LEFT ear. 6. Tamper resistant battery compartment lock Your hearing instrument can be identified by: 7.

  • Page 5: Mini Bte Overview

    mini BTE Overview SERIAL NUMBER 00-000000...

  • Page 6: Preparation

    Preparation Batteries Your hearing instrument uses a battery as its power source. The battery size can be identified by the brown (312) color code on the packaging. To insert or replace the battery: 1. Use the nail grip on the battery door. 2.
  • Page 7 Preparation...

  • Page 8: Battery Indicator Tones

    Preparation Battery Indicator Tones An indicator will sound when the battery’s voltage is low. You have approximately 5 minutes* to replace the battery. An indicator will sound just before the battery stops working. * Actual time between low battery indicator and shut down will vary depending on environmental noise levels and brand of battery used.
  • Page 9 Preparation Helpful Hints • NEVER FORCE THE BATTERY DOOR SHUT; this could result in serious damage; if the door will not close securely, check that the battery is inserted correctly • Do not open the battery door too far or damage is likely to occur • Dispose of used batteries immediately in the proper waste or recycling container • Batteries vary in size and performance. Your hearing care professional is your best source for lifespan estimates and verification that you are using the proper size and type.

  • Page 10: Insertion And Removal

    Insertion and Removal Custom Earmold My hearing instrument uses: A Custom Earmold. See below. An Instant Fit Earbud or Custom Eartip. See page 13. To insert the Custom Earmold and hearing instrument: 1. Hold the Custom Earmold with your thumb and forefinger on the outer side near the tubing. 2.
  • Page 11 Insertion and Removal...
  • Page 12 Insertion and Removal Helpful Hints • Minor irritation and inflammation may occur as your ear becomes accustomed to having an object in it; if so, please contact your hearing care professional • If an actual allergic reaction occurs, alternative earmold materials are available; contact your hearing care professional • Severe swelling, discharge from the ear, excessive wax, or other unusual conditions warrant immediate consultation with a physician...

  • Page 13: Instant Fit Earbud Or Custom Eartip

    Insertion and Removal Instant Fit Earbud or Custom Eartip To insert the Instant Fit Earbud or Custom Eartip: 1. Insert the Instant Fit Earbud/Custom Eartip into your ear canal. 2. Gently wrap the BTE over your ear until it rests securely behind your ear.
  • Page 14 Insertion and Removal To remove the hearing instrument and Instant Fit Earbud or Custom Eartip: 1. Remove the lock from the concha bowl of your ear. 2. Remove the hearing instrument from behind your ear. 3. Gently grasp the tubing at the opening of the ear canal and pull outward.

  • Page 15: Operation

    Operation On & Off To turn ON: Insert a battery and completely close the battery door. Your hearing instrument has a Power-On delay and may require a few seconds to power on. You may hear a tone series indicating that your device is fully powered on.

  • Page 16: Volume Control

    Operation Volume Control Your hearing system uses the switch to control volume. To increase volume, press then release the top part of the switch. To decrease volume, press then release the bottom part of the switch. Volume Settings Volume Level Tone Level 5 (More volume) Five beeps plus tone...
  • Page 17 Operation Multimemory Your hearing instrument is set up for multimemory control. Your hearing care professional can set up to four hearing programs for you. These additional programs are accessed by pressing the switch. When you press the switch, you may hear an alert indicating the device has changed to the next program.

  • Page 18: Telephone Use

    Operation Telephone Use Your hearing instrument has a telephone feature that enables you to comfortably use the telephone without removing your hearing instrument or custom earmold. My telephone feature is: Automatic Telephone Response (ATR) Automatic Telecoil (Autocoil) Manual Telecoil (Program #__________ ) Automatic Telephone and Automatic Telecoil Place the telephone handset in a normal position and then shift it slightly back.
  • Page 19 Operation Telecoil and Manual Switching Hearing instruments with a manual telecoil allow you to switch the devices to telephone mode when needed. Manually switched telecoils are activated by choosing the telecoil setting using the switch. general Telephone Use Some hearing instruments work best by holding the phone close to, but not fully covering your ear.
  • Page 20 Operation DISCLAIMER – Some hearing aid users have reported a buzzing sound in their hearing aids when they are using cell phones, indicating that the cell phone and hearing aid may not be compatible. According to the ANSI C63.19 standard (ANSI C63.19-2007 American National Standard Methods of Measurement of Compatibility Between Wireless Communications Devices and Hearing Aids), the...

  • Page 21: Direct Audio Input (Dai)

    Operation Direct Audio Input (DAI) My hearing system is set up for DAI use. My hearing system is not set up for DAI use. See page 23. Your hearing system has full direct audio input (DAI) capability. This allows you to connect your hearing system to an electronic sound source such as a wireless FM system, computer audio or an MP3 player.
  • Page 22 Operation To remove the battery with the DAI shoe attached: Hold the BTE and DAI shoe and press the tab on the lower part of the DAI shoe, then open the battery door. To remove the DAI shoe: Turn the BTE on the side. Grasp the BTE in one hand and the DAI shoe in the other.

  • Page 23: Accessories

    Accessories Wireless Accessories* There are several wireless accessories that allow you to control and maximize the full potential of your hearing system. These include a remote control as well as wireless connection to your cell phone and entertainment system. Consult with your hearing professional to determine if your hearing aids have wireless capabilities and which accessories may be best for you.

  • Page 24: Hearing Instrument Care

    Hearing Instrument Care Instrument Care Do your best to keep your hearing instrument clean at all times. Heat, moisture and foreign substances can result in poor performance. • Use a cleaning brush or soft cloth to clean debris from around the switches, microphone and battery compartment • Never use water, solvents, cleaning fluids or oil to clean your instrument My hearing instrument has: Standard tubing.

  • Page 25: Standard Tubing Care

    Hearing Instrument Care Standard Tubing 1. Separate the Custom Earmold from the BTE by gently pulling the tubing away from the earhook. – Use a soft, damp cloth or a cleaning brush to clean debris from the Custom Earmold – Wash the Custom Earmold with warm soapy water – N ever use solvents 2.

  • Page 26: Thin Tubing Care

    Hearing Instrument Care Thin Tubing 1. Unscrew the tubing from the tip of the hearing instrument. 2. Thread the cleaner through the tubing, starting at the end just removed from the hearing instrument, until it extends from the other end of the tubing.
  • Page 27 Hearing Instrument Care Helpful Hints • Make sure the Custom Earmold/Earbud/Eartip and tubing are completely dry before reconnecting to your hearing instrument earhook. • When not wearing your hearing instrument, open the battery door to allow any moisture to evaporate. • Do not take apart your hearing instruments or insert the cleaning tools inside them. • When not in use, remove the batteries completely; place your hearing instrument in the storage container and store:...

  • Page 28: Service And Repair

    Hearing Instrument Care Service and Repair If, for any reason, your hearing instrument does not operate properly, do NOT attempt to fix it yourself. Not only are you likely to violate any applicable warranties or insurance, you could easily cause further damage. Should your hearing instrument fail or perform poorly, check the guide on the next page for possible solutions.

  • Page 29: Troubleshooting Guide

    Hearing Instrument Care Troubleshooting guide SYMPTOM POSSIBLE SOLUTIONS CAUSES Low battery Replace battery Blocked Remove blockage earmold/tubing/ and clean earbud Not Loud Enough Contact your hearing Hearing change care professional Clean both Debris buildup microphone and receiver with brush Low battery Replace battery Inconsistent Blocked Performance...

  • Page 30: Tips For Better Communication

    Tips for Better Communication Your hearing care professional will recommend an appropriate schedule to help you adapt to your new hearing system. It will take practice, time and patience for your brain to adapt to the new sounds that your hearing system provides. Hearing is only part of how we share thoughts, ideas and feelings. Reading lips, facial expressions and gestures can help the learning process and add to what amplification alone may miss.

  • Page 31: For Your Family And Friends

    Tips for Better Communication • Develop realistic expectations of what your hearing instruments can and cannot do • Better hearing with hearing instruments is a learned skill combining desire, practice and patience For Your Family and Friends Your family and friends are also affected by your hearing loss. Request that they: • Get your full attention before beginning to speak • Look at you or sit face-to-face in a quiet room...

  • Page 32: Safety Information

    Safety Information Safety Information Your hearing instruments are designed to comply with the most stringent Standards of International Electromagnetic Compatibility. However, it is still possible that you may experience interference caused by power line disturbances, airport metal detectors, electromagnetic fields from other medical devices, radio signals and electrostatic discharges.
  • Page 33 Safety Information Your hearing instruments should be stored within the temperature and humidity ranges of C (-40 F) to +60 C (140 F) and 10%-95% rH. Your hearing instruments are designed to operate beyond the range of temperatures comfortable to you, from very cold up to 50 C (122 Use on Aircrafts* The optional wireless capabilities that may be...

  • Page 34: Fda Information

    FDA Information Required Information The following additional information is provided in compliance with U.S. Food and Drug Administration (FDA) regulations: WARNING TO HEARING AID DISPENSERS. A hearing aid dispenser should advise a prospective hearing aid user to consult promptly with a licensed physician (preferably an ear specialist) before dispensing a hearing aid if the hearing aid dispenser determines through inquiry, actual observation, or review of any other available information concerning...
  • Page 35 FDA Information The audiologist or hearing aid dispenser will conduct a hearing aid evaluation to assess your ability to hear with and without a hearing aid. The hearing aid evaluation will enable the audiologist or dispenser to select and fit a hearing aid to your individual needs. If you have reservations about your ability to adapt to amplification, you should inquire about the availability of a trial-rental or purchase-option program.

  • Page 36: Fcc Information

    Directive 1999/5/EC. A copy of the Declaration of Conformity can be obtained from the below addresses. Starkey 6600 Washington Ave. South Eden Prairie, MN 55344 USA Starkey European Headquarters Wm. F. Austin House, Bramhall Technology Park Pepper Road, Hazel Grove, Stockport SK7 5BX United Kingdom Waste from electronic equipment must be handled according to local regulations...

  • Page 37: Limited Warranty

    (30) days of discovering the defect. There will be no cost to you for Starkey’s repair or replacement of the instrument itself, but the hearing professional may charge a fee for services he or she provides.
  • Page 38 WHAT THIS LIMITED WARRANTY DOES NOT COVER: Batteries, earmolds, accessories, or damage to your hearing instrument caused by misuse or neglect, accident, unauthorized alteration, or failure to provide reasonable and necessary maintenance and cleaning. DISCLAIMER OF CONSEQUENTIAL AND INCIDENTAL DAMAGES: THE PURCHASER SHALL NOT BE ENTITLED TO RECOVER FROM STARKEY ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES RESULTING FROM ANY DEFECT IN THE HEARING INSTRUMENT, INCLUDING BY WAY OF EXAMPLE ONLY, EXPENSES TO DELIVER THE HEARING INSTRUMENT TO AN AUTHORIZED HEARING PROFESSIONAL, HOTEL ROOMS, OR LOST WAGES. THIS EXCLUSION...
  • Page 39 Notes...
  • Page 40 6700 Washington Avenue South Eden Prairie, MN 55344-3476 800.328.8602 www.starkey.com © 2012 Starkey. All Rights Reserved. 85243-000 3/12 BKLT0307-00-EE-ST Rev. A 0086...
