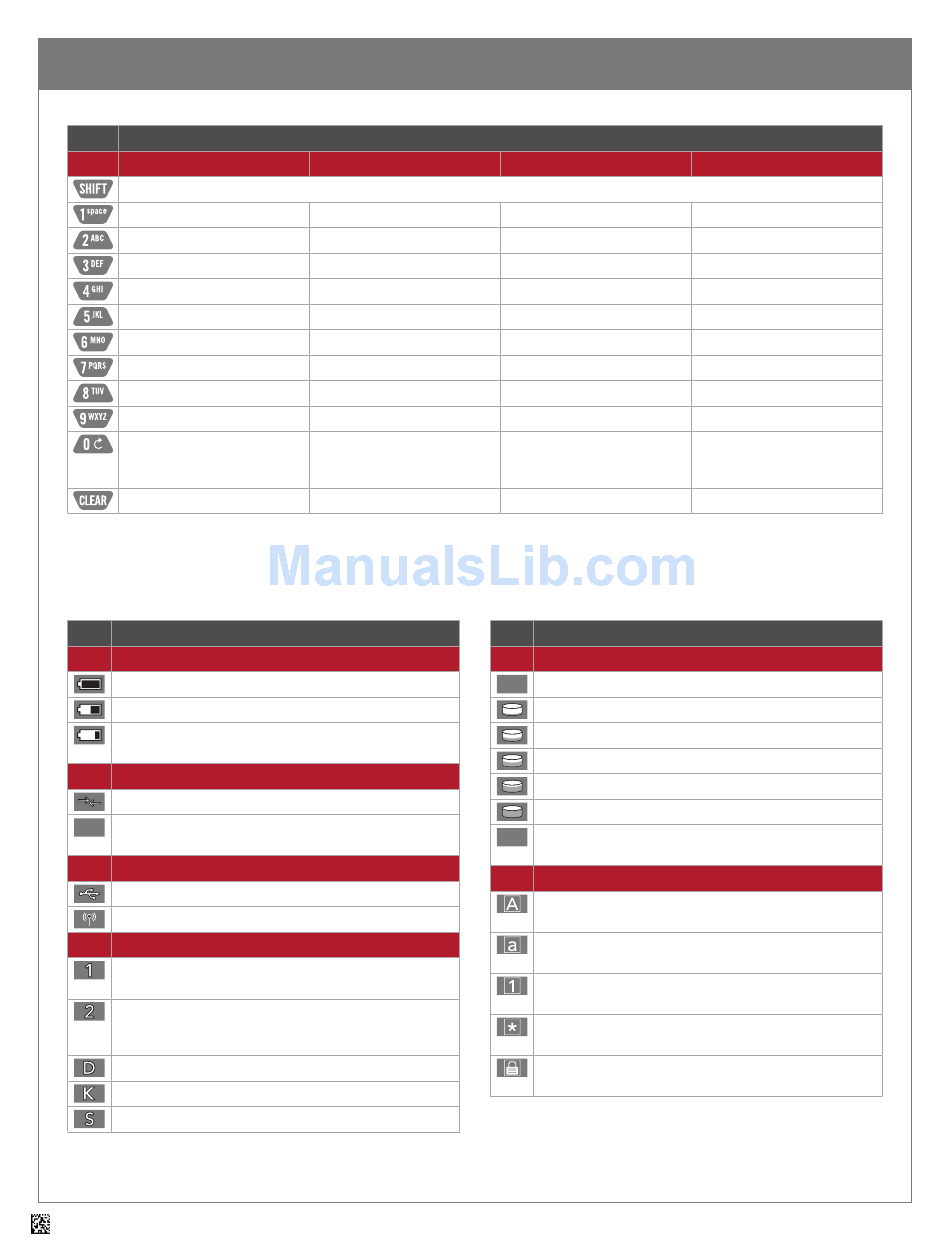

7.0 - Keypad/Icon Overview

Key
Numeric Mode
(All Modes) Toggles between numeric characters, upper case text, lower case text, and symbol character input.
1
2
3
4
5
6
7
8
9
0
Backspace and clear messages
Note: All characters represented in this table are for ASCII mode.
Icon
Power Icons
50% to 100% capacity of battery
20% to 50% capacity of battery
0% to 20% capacity of battery – recharge battery
as soon as possible
Connection Icons
Establishing a Bluetooth connection
No icon is displayed when the reader does not
detect a connection
Communication Mode Icons
USB communication mode enabled
Bluetooth communication mode enabled
Packet Mode Icons
Standard Bluetooth Reliability Mode (previously One
Way Mode) – no acknowledgement required
Additional Bluetooth Reliability Mode (previously Two
Way Mode) – packetized communication between a
CR3600 and an application
USB Downloader mode
Keyboard mode – to be used as USB keyboard input mode
Secure mode – data encryption mode enabled
D013597_03 CR3600 User Manual
Description of Button Function
Upper Case Text Mode
Space, 1
A, B, C, 2
D, E, F, 3
G, H, I, 4
J, K, L, 5
M, N, O, 6
P, Q, R, S, 7
T, U, V, 8
W, X, Y, Z, 9
0
Backspace and clear messages
Description
Lower Case Text Mode
Space, 1
a, b, c, 2
d, e, f, 3
g, h, i, 4
j, k, l, 5
m, n, o, 6
p, q, r, s, 7
t, u, v, 8
w, x, y, z, 9
0
Backspace and clear messages
Icon
Memory Icons
No stored data
Memory is at 20% full
Memory is at 40% full
Memory is at 60% full
Memory is at 80% full
Memory is at 100% full
No batch mode – data will not be stored in the reader's
memory if not connected
Input Mode Icons
Caps Lock – data entered manually on the keypad
will be in capital letters
Lower Case – data entered manually on the keypad
will be in lower case letters
Numeric – data entered manually on the keypad
will be numeric
Symbol – data entered manually on the keypad
will be symbols
Locked – buttons pushed on the reader's keypad
will be ignored*
*Note: To lock/unlock reader buttons press
Shift + Up Arrow simultaneously.
Symbol Mode
Space ) < _
! * = `
" + > {
# , ? |
$ - @ }
% . [ ~
& / \ Space
' : ] Space
( ; ^ Space
Toggles between 4 sets of
symbols – when pressed, the
current symbol set is displayed.
Backspace and clear messages
Description
