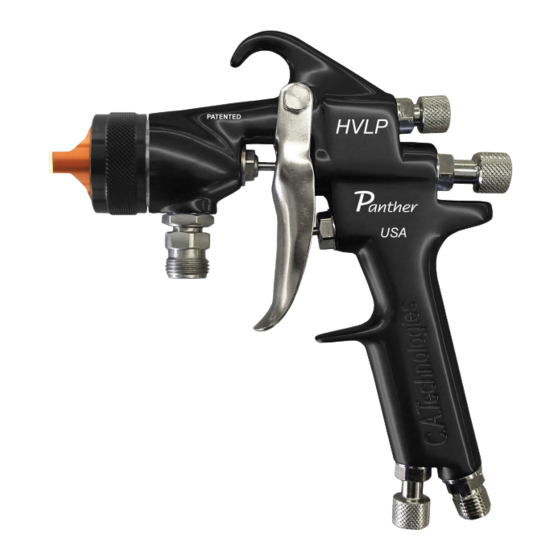

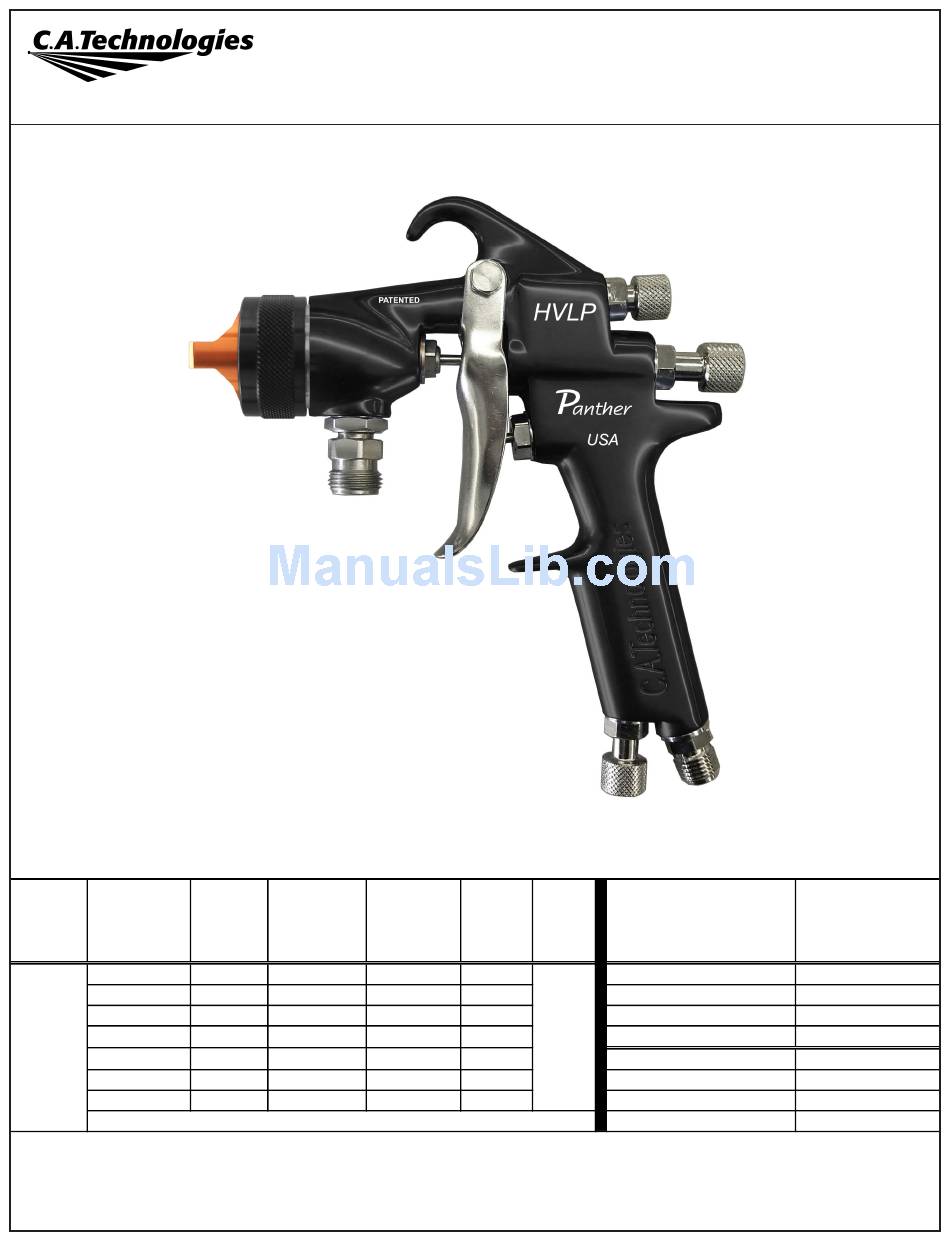

Panther 200H Panther 200H Panther 200H Panther 200H Panther 200H PRESSURE FEED SPRAY GUN PRODUCT INFORMATION HVLP AIR CAP AND FLUID NOZZLE CHART *MAX GUN SCFM @ MODEL Press / AIR CAP AVAILABLE FLUID NEEDLES / AIR CAPS INLET PRESS.
Page 2
P P P P P 200H 200H 200H 200H 200H Operation and Maintenance Instructions for Spray Guns Operation 1. Connect air supply hose at handle of gun. 2. Connect a pressurized fluid supply to the gun fluid inlet. 3. Fluid flow can be controlled using the fluid control knob, this restricts flow by limiting needle travel. It is best to control fluid flow by proper selection of fluid orifice size and use the fluid control knob to “fine tune flow rate”.
Page 3
HVLP AIR CAP TEST GAGES 22-1028-G 22-1033-G 22-1046-G P200H 22-1057-G GUNS 22-1083-G 22-1100-G ITEM NO. PART NO. DESCRIPTION ITEM NO. PART NO. DESCRIPTION See Air Cap Chart Air Cap** 60-206 Needle Return Spring (HD)* See Air Cap Chart Fluid Nozzle Tip** 60-201 Rear Bushing 32-1201...
Page 4
FLUID NOZZLE / AIR CAP SELECTION CHARTS PANTHER Series 200H - Pressure Feed Guns P200H HVLP SPRAY GUN FLUID ORIFICE x MAXIMUM MATERIAL TYPE PRESS. / SIPHON AIR CAP PATTERN WIDTH Very Thin 1.1 mm x 1028 less than 16 sec. Zahn #2 1.1 mm x 1033 inks , dyes, solvents, stains...
