Liebert GXT3 Quick Start Manual

The Liebert GXT3 is shipped with the following items:
•
Terminal Block Communication terminals
•
Compact disc with:
o
Liebert MultiLink®
o
Configuration program
o
User manual (electronic version)
•
USB cable, one; 2m (6-1/2 ft.) long
•
Rack handles with mounting hardware
•
Plastic tower support base, one set
•
Plastic Bezel
•
Warnings, safety instructions booklet and WEEE recycling sheet (ISO 14001 compliance)
•
For 700VA - 1500VA Models:
o
(2) 10A IEC C13 to C14 Output Cable, 2m (6-1/2 ft.) long
•
For 2000VA - 3000VA Models:
o
(3) 10A IEC C13 to C14 Output Cable, 2m (6-1/2 ft.) long
o
(1) CEE 7/7 (Schuko) to IEC C20 Input Cable, 2.5m (8-1/5 ft.) long
o
(1) BS1363 (UK) to IEC C20 Input Cable, 2.5m (8-1/5 ft.) long
If the installation is in the Tower orientation, locate the support base and stand the UPS up on the support base. Note the
display should be located on the upper half of the unit in the Tower orientation and to rotate the display, grasp the sides
and rotate it 90 degrees clockwise. If the UPS is to be installed in a rack enclosure, follow the instructions provided with
the rack mounting hardware for proper installation.

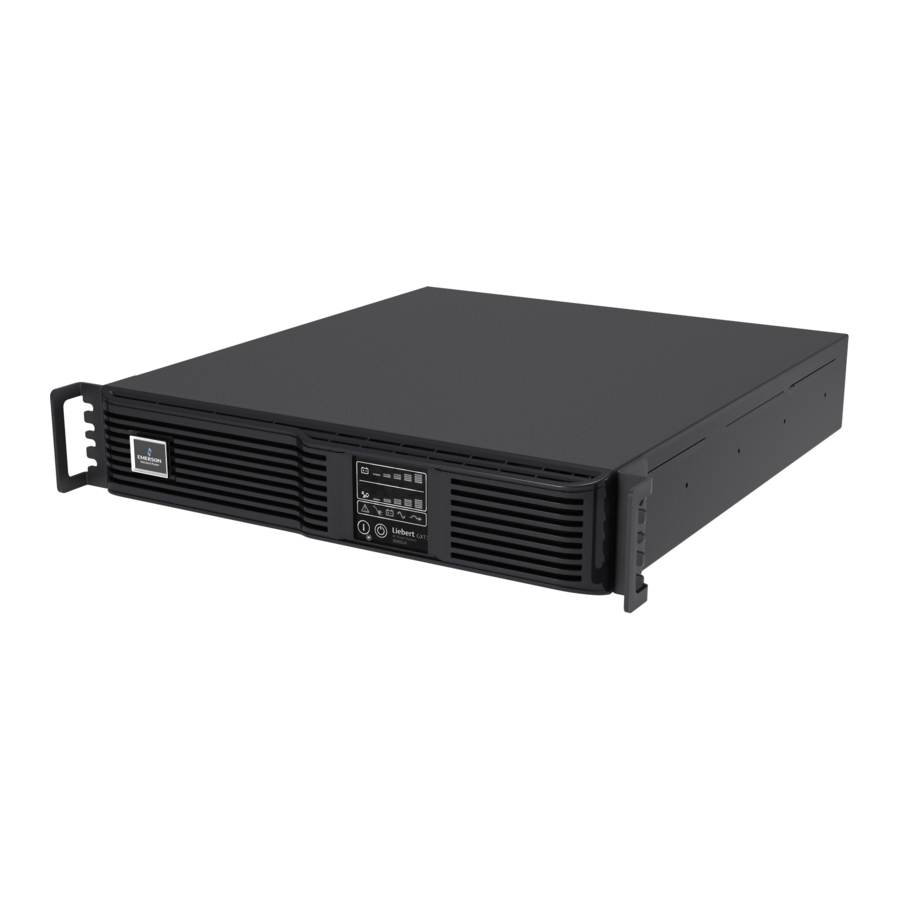

Liebert GXT3 UPS
If using an optional MicroPOD that was purchased separately, please see instructions shipped with the MicroPOD for the
installation instructions. This should be done before connecting the UPS to utility power.
If the hardwired MicroPODs are being used, conduit entry knockout are provided. Input and output wiring should be
installed in separate conduits. All wiring should be done in accordance to all local and national electrical codes. Before
wiring the UPS ensure that the breaker in the external upstream panelboard is OFF.
If an optional POD with attached input cord and output receptacles are used, connect the input plug receptacle and
connect the connected equipment to the output receptacles.
Liebert
Quick Start Guide – 700-3000VA RT230 Models
Liebert GXT3 UPS
With
External Battery Cabinet
Plastic Bezel
Status Indicators
and Controls
1
™
®
GXT3
SLI-23180QS_Rev0_09-2012
Tower
Support
Base
