Liebert GXT3 RT208 series Quick Start Manual

The Liebert GXT3 is shipped with the following items:
•
Terminal Block Communication terminals
•
Compact disc with:
o
Liebert MultiLink®
o
Configuration program
o
User manual (electronic version)
•
USB cable, one; 2m (6-1/2 ft.) long
•
Rack handles with mounting hardware
•
Plastic tower support base, one set
•
Plastic Bezel
•
Warnings, safety instructions booklet and WEEE recycling sheet (ISO 14001 compliance)

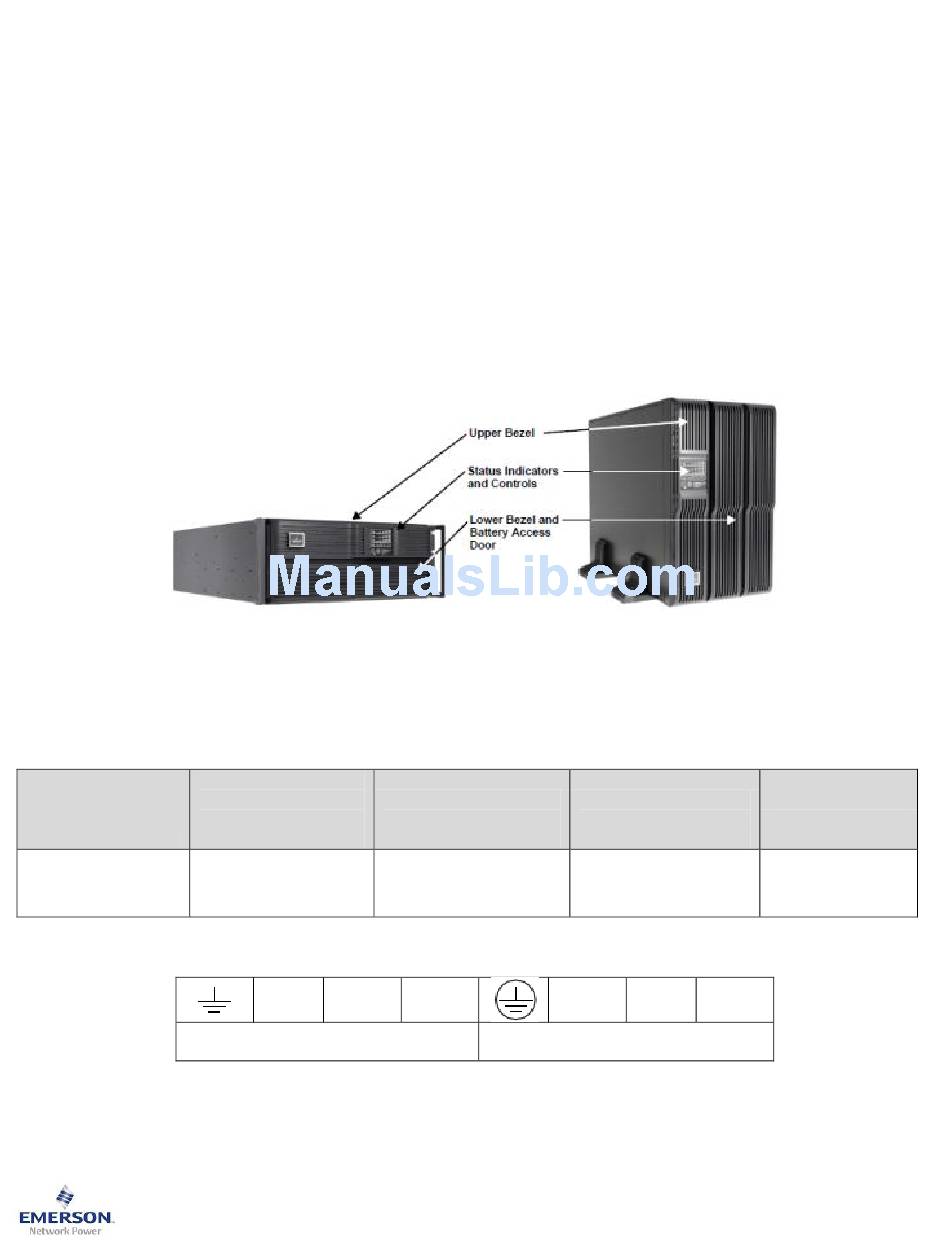

If the installation is in the Tower orientation, locate the support base and stand the UPS up on the support base. Note the
display should be located on the upper half of the unit in the Tower orientation and to rotate the display, grasp the sides
and rotate it 90 degrees clockwise. If the USP is to be installed in a rack enclosure, follow the instructions provided with
the rack mounting hardware for proper installation.
If using an optional POD that was purchased separately, please see instructions shipped with the POD for installation
instructions. This should be done before connecting the UPS to utility power.
The UPS is hardwired input with a conduit entry knockouts provided. Input and output wiring should be installed in
separate conduits. All wiring should be done in accordance to all local and national electrical codes. Before wiring the
UPS ensure that the breaker in the external upstream panelboard is OFF.
UPS Model
GXT3-8000RT208
GXT3-10000RT208
Terminal Block Connections
If an optional POD with output receptacles is used, connect the equipment to be protected to the output receptacles.
Quick Start Guide – 8000-10000VA RT208 Models
Recommended
(Maximum) External
Over Current
Protection
60A
L2 N
OUTPUT
™
®
Liebert GXT3
Recommended Wire
(All wires)
90 degC Copper Wire
2
6 AWG (10mm )
L1
1
Maximum Wire
Accepted by
Terminal Block
2
4 AWG (16mm )
L2 N L1
INPUT
SL-23185QS10_Rev0_09-2012
Terminal Block
Torque
10 in-lb
