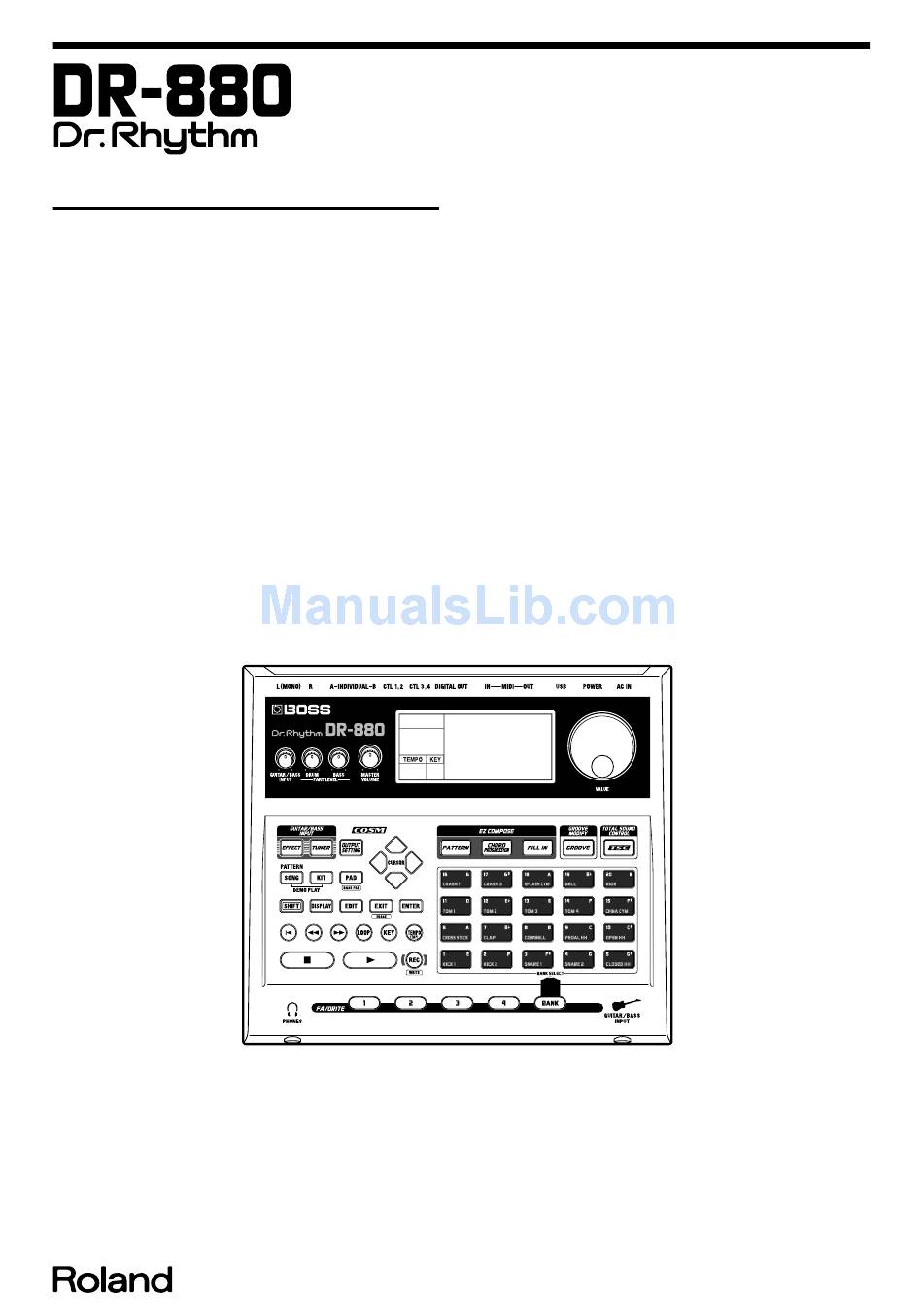

Dec.2004

TABLE OF CONTENTS

CAUTIONARY NOTES........................................................ 2
SPECIFICATIONS................................................................. 2
LOCATION OF CONTROLS............................................... 3
LOCATION OF CONTROLS PARTS LIST ....................... 3
EXPLODED VIEW 1 ............................................................. 4
EXPLODED VIEW 1 PARTS LIST ...................................... 4
EXPLODED VIEW 2 ............................................................. 5
EXPLODED VIEW 2 PARTS LIST ...................................... 5
EXPLODED VIEW 3 ............................................................. 6
EXPLODED VIEW 3 PARTS LIST ...................................... 6
EXPLODED VIEW 4 ............................................................. 7
EXPLODED VIEW 4 PARTS LIST ...................................... 7
TAPE for fixed wring............................................................ 8
WIRING DIAGRAM ........................................................... 10
WIRING DIAGRAM PARTS LIST .................................... 10
PARTS LIST.......................................................................... 12
Copyright © 2004 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission
of ROLAND CORPORATION.
CHECKING THE VERSION NUMBER ........................... 16
Computer to DR-880 connection ....................................... 16
USERS DATA SAVE AND LOAD .................................... 16
FACTORY RESET INSTRUCTIONS ................................. 17
TEST MODE.......................................................................... 18
BLOCK DIAGRAM ............................................................. 28
CIRCUIT BOARD (MAIN BOARD).................................. 30
CIRCUIT BOARD (MAIN BOARD).................................. 32
CIRCUIT DIAGRAM (MAIN, VOLUME)........................34
CIRCUIT DIAGRAM (JACK)............................................. 36
CIRCUIT DIAGRAM (POWER) ........................................ 38
CIRCUIT BOARD (SW)....................................................... 40
CIRCUIT BOARD (SW)....................................................... 42
PHONES) .............................................................................. 44
ERROR MESSAGES............................................................. 46
17058298E0
SERVICE NOTES
Issued by RJA
Printed in Japan (0500) (AS)

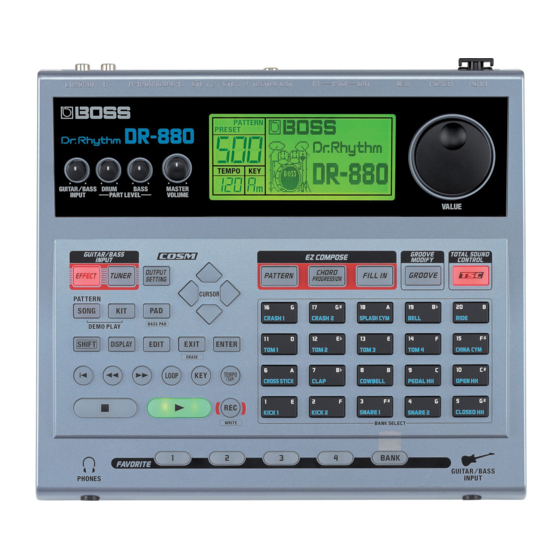

DR-880
