Hikvision Technical Manual

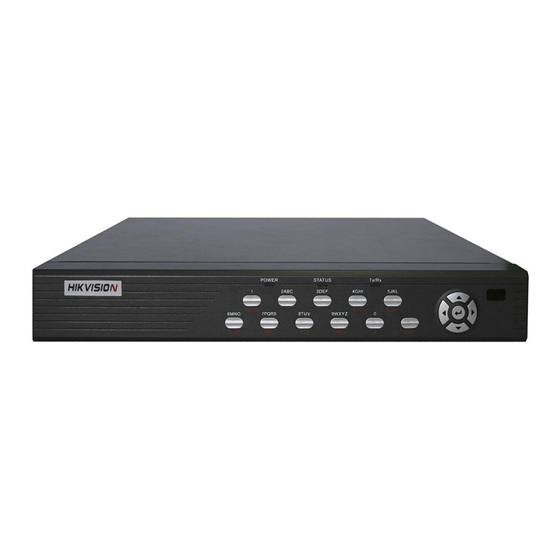

DS-7204HI-S Series Net DVR
Technical Manual
©2006 – 2010 by HIKVISION. All rights reserved.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DS-7204HI-S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-7204HI-S

Summary of Contents for HIKVISION DS-7204HI-S

  • Page 1 Hikvision Technical Manual DS-7204HI-S Series Net DVR Technical Manual ©2006 – 2010 by HIKVISION. All rights reserved.
  • Page 2 HIKVISION and then only on the condition that this notice is included in any such reproduction. No information as to the contents or subject...
  • Page 3 Hikvision Technical Manual Contents 1. Overview 2. Model Description 3. Features 4. Specifications ©2006 – 2010 by HIKVISION. All rights reserved.
  • Page 4 (DVR) and a digital video server (DVS). It can be used as a standalone video surveillance product, as well as to build up a powerful surveillance network. DS-7204HI-S Net DVR can be widely used in the verticals of banking, telecommunications, transportation sectors, and manufacturing.

  • Page 5: Model Description

    Hikvision Technical Manual 2. Model Description DS-7204HI-S: 4-ch video input and 1-ch audio input. No VGA output. SATA HDD supported. 1-ch composited video output and 1-ch spot video output. DS-7204HI-VS: 4-ch video input and 1-ch audio input. One VGA output. SATA HDD supported.
  • Page 6 Supports video signal loss alert.  Supports play forward, backward, pause, frame-by-frame, etc.  User-defined preview layout.  Supports one playback channel.  Playback by files or by time.  Display local recording status.  ©2006 – 2010 by HIKVISION. All rights reserved.
  • Page 7 View and search log through client software  Others Supports network voice talk.  IR remote control  Multi-level user management.  Automatically recovery from abnormal conditions.  Network SDK and client demo source code available  ©2006 – 2010 by HIKVISION. All rights reserved.

  • Page 8: Specifications

    1 VGA interface can support resolution: VGA interface Unavailable 800× 600/60Hz, 1024×768/60Hz, 1280 ×1024/60Hz External alarm in Relay output Voice talk 1 channel, RCA (Electrical Level: 2.0Vp-p, Resistance: 1KΩ) Dual stream Available Power supply 12VDC ©2006 – 2010 by HIKVISION. All rights reserved.
  • Page 9 -10℃ to +55℃ temperature Relative humidity 10% to 90% Size 315× 230×45 mm Weight < 8Kg (without HDD) PAL: 176×144(QCIF), 352×288(CIF), 704× 288(2CIF), 528×384(DCIF), 704×576(4CIF); NTSC: 176×120(QCIF), 352× 240(CIF), 704×240(2CIF), 528×320(DCIF), 704×480(4CIF). ©2006 – 2010 by HIKVISION. All rights reserved.

This manual is also suitable for:

Ds-7204hi-vs
