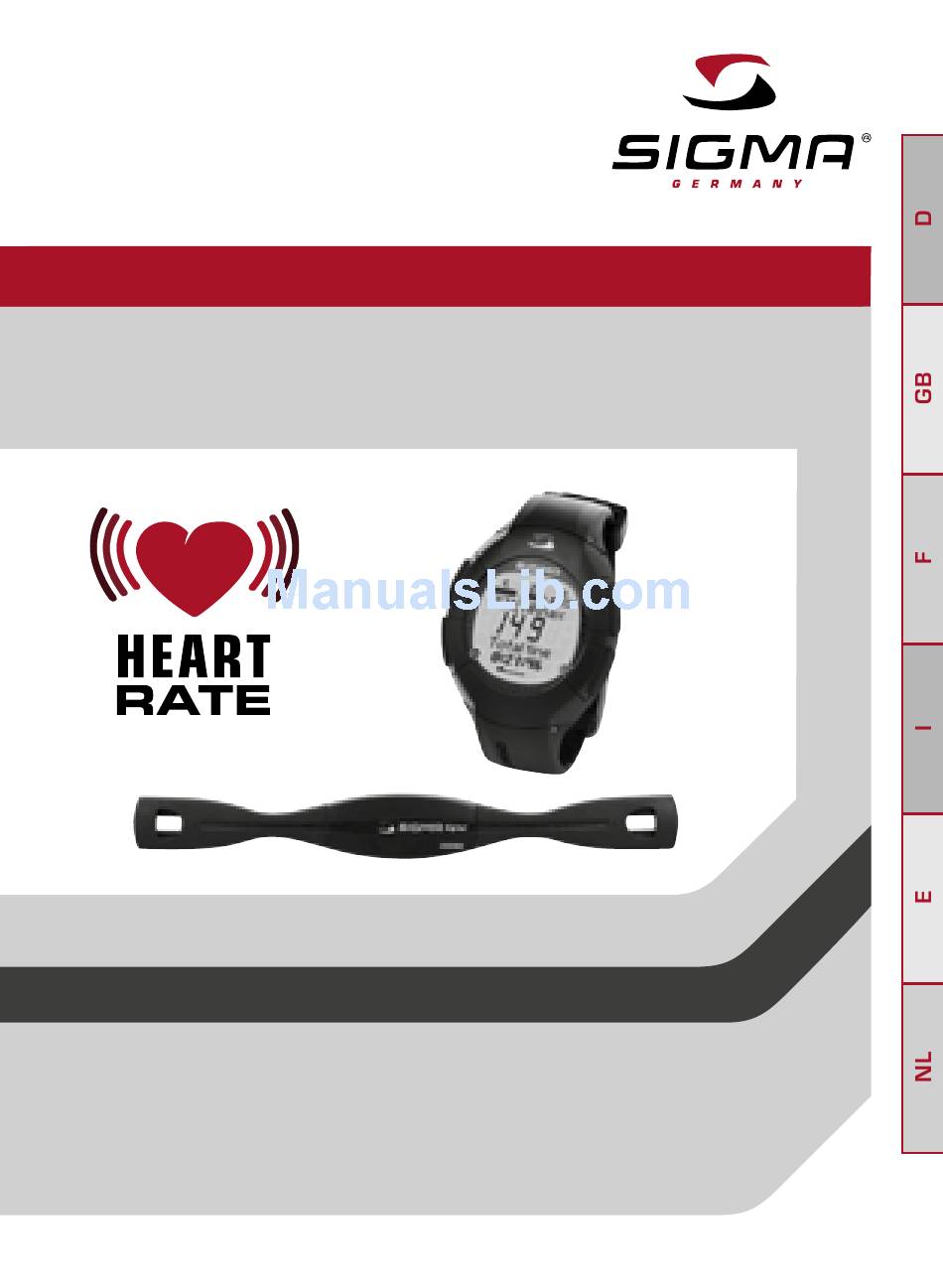

- Page 1 Heart rate Monitors TOPLINE ONYX Fit DeUtsCH itaLiano enGLisH esPaÑoL FranÇais neDerLanDs...
-
Page 2: Table Of Contents
CONTENT Foreword and package contents Basic operation principle 2.1 Function summary (tree diagram) 2.2 Key occupancy and navigation principle 2.3 Fixing the chest belt / attaching the handlebar holder 2.4 Measuring the heartbeat Settings before the first training k Main menu Setting 3.1 Setting User 3.2 Setting Unit 3.3 Setting Training Main menu Training 4.1 Free 4.2 Laps 4.3 Program 4.4 Fitness Test... - Page 3 CONTENT Other information 7.1 Information on heart rate 7.2 FAQ 7.3 Beep summary 7.4 Troubleshooting 7.5 Changing the battery /waterproofing and warranty...
-
Page 4: Foreword And Package Contents

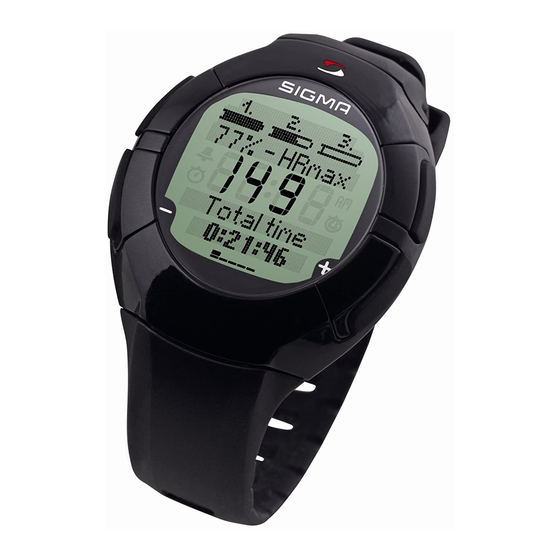

1. FOREWORD AND PACKAGE CONTENTS Congratulations on choosing a heart rate monitor from SIGMA SPORT . Your new ® ONYX FIT will be a faithful companion for sport and leisure for many years to come. The ONYX FIT is a technically demanding measuring device. In order to learn and apply the varied functions of your new heart rate monitor, please read this user manual carefully. SIGMA SPORT ® wishes you a lot of fun using your ONYX FIT. Heart rate monitor ONYX FIT. k ECG-accurate k Approved to medical standards Chest belt with digitally coded radio transmission. Handlebar holder to use the ONYX FIT on the bike with an O ring. www.sigmasport.com... -
Page 5: Basic Operation Principle
. BASIC OPERATION PRINCIPLE .1 FUNCTION SUMMARY (tree diagram) Training Time Free Clock Training Date Training Fit Test Stopwatch Program Countdown Alarm Memory Memory Total values Memory 1 Per week Memory 2 Per month Memory 3 Memory 4 Since reset Memory 5 Memory 6 Memory 7... - Page 6 . BASIC OPERATION PRINCIPLE .1 FUNCTION SUMMARY (tree diagram) Setting User Unit Training Gender Language Endurance Birthday Date Weight Clock HR max Volume 1. HR Zone Buttontones 2. HR Zone Zonealarm 3. HR Zone Trainingtones My name www.sigmasport.com...
-
Page 7: Key Occupancy And Navigation Principle
.1 FUNCTION SUMMARY The main menus of the ONYX FIT Your ONYX FIT is classified into 4 main menus – “Training”, “Time”, “Memory” and “Setting”. The symbol and description on the screen indicates where you are in the main menu. Use the PLUS /MINUS buttons to change between the individual main menus. . KEY ALLOCATION AND NAVIGATION PRINCIPLE The ONYX FIT uses three menu levels. When navigating through the menus and sub-menus of the ONYX FIT the user can always refer to the tree diagram in Chapter 2.1 “Function summary”. The menu navigation on the ONYX FIT is made much simpler by the navigation level. The navigation level always appears when you press one of the two upper function buttons. The possible button functions for the two upper buttons are shown in the navigation level in order to: k Move to the next deeper level (ENTER) k Go back to the next higher level (BACK/OFF) -
Page 8: Fixing The Chest Belt
. KEY ALLOCATION AND NAVIGATION PRINCIPLE k Start training (START) k End training (END) k Save training (SAVE) k Start another training phase (SKIP) or move to the next lap (NEXT). Confirm the function shown in the navigation level with another click. Use the two lower buttons PLUS /MINUS to change between the individual menu options on one level. . FIXING THE CHEST BELT /HANDLEBAR HOLDER Connect the transmitter with the elastic belt. Use the adjusting mechanism to individually adapt the length of the belt. Ensure that you set the length of the belt so that it sits well but is not too tight. www.sigmasport.com... -
Page 9: Measuring The Heartbeat
. FIXING THE CHEST BELT /HANDLEBAR HOLDER Place the belt such that for men the transmitter is below the chest muscles and for women below the breasts. The SIGMA logo must always be readable from the front. Lift the belt slightly from the skin. Dampen the ribbed zones (electrodes) on the rear of the transmitter with salvia or cardio gel. Assemble the handlebar holder. Then fix the handlebar holder with the O ring and close the wristband. . MEASURING THE HEARTBEAT When you are not training your ONYX FIT is in sleep mode and can be worn as a normal watch. Before and after training the screen shows the date, time and product name. - Page 10 . MEASURING THE HEARTBEAT You can enter another word with up to 8 characters under the ONYX FIT font (my name function). Please refer to Chapter 3.2 “Setting unit”. To activate your ONYX FIT hold down any button for two seconds. The clock changes to active mode and you enter the training main menu. Note: At the start always refer to the tree diagram shown in 2.1. Synchronisation of Watch and Chestbelt Your ONYX FIT is equipped with a digitally coded chest belt that enables you to have interference free training. www.sigmasport.com...
- Page 11 . MEASURING THE HEARTBEAT Before starting to train you have to synchronize the chest belt with the watch once. Select any training and press the Navigation button k ENTER. The synchronization starts automatically and takes just a few seconds. After successful synchronization your ONYX FIT gives a short confirmation with “Sync ok”. Note: If you do not see this indication on your watch synchronization has already been completed successfully. After your ONYX FIT has successfully synchro- nized with your chest belt you can start training by pressing k START. Note: please refer to Chapter 7.4 “Trouble- shooting” for possible problems with synchro- nization.
-
Page 12: Settings Before The First Training
. MEASURING THE HEARTBEAT Switch off ONYX FIT The ONYX FIT switches itself off automatically after 5 minutes if no training is undertaken. You can also turn your watch to sleep mode manually at any time. To switch off your ONYX FIT you have to be in the Main Menu. Press the Navigation button k OFF to activate sleep mode. Your ONYX FIT is again in sleep mode and can be worn as an everyday watch. . SETTINGS BEFORE THE FIRST TRAINING Before the first training session enter your personal settings. Go to main menu by pressing the PLUS /MINUS button until you reach the Setting menu option. www.sigmasport.com... -
Page 13: Setting User
. SETTINGS BEFORE THE FIRST TRAINING Press the Navigation button k ENTER to open the Setting menu. The Setting “main menu” is sub-divided into user, unit and training settings (Setting /User, Setting /Unit, Setting /Training). Switch between these options by pressing the PLUS /MINUS buttons. Open the relevant menu with the Navigation button k ENTER. Now various setting values are displayed in each menu. Change the setting value using the Navigation button k CHANGE. Increase /reduce the value to be set using PLUS /MINUS. Confirm the relevant setting with OK and save the setting when you have finished using k SAVE. Note: The ONYX FIT has an additional memory so that the personal settings in your ONYX FIT are retained when you change the battery. .1 SETTING USER In Setting “User” enter in succession your gender, birthday and weight. Your maximum heart frequency is calculated by the following equations. - Page 14 .1 SETTING USER Male: 210 - (1/2 age) - (0.11 x weight in kg) + 4 Female: 210 - (1/2 age) - (0.11 x weight in kg) The calculated HR max. is the basis for setting the upper and lower limits of the 3 training zones. The following 3 training zones are available for the “Free Training” and “Lap Training”. For the training program 1 training zone can be set individually and separately from the HR max. Note: You can find more information on the training types in Chapter 4. Please refer to the start of this chapter for information on the setting principle. HR zone: k approx. 55 –70 % of HR max. Recovery training, training the metabolism, weight loss. HR zone: k approx. 70 –80 % of HR max. Heart-circulation training to improve aerobic performance. HR zone: k approx 80 –100 % of HR max. Performance-led competition training The upper and lower limits of the training zones and HR max. can be set manually using the Navigation button k CHANGE. www.sigmasport.com...
-
Page 15: Setting Unit
. SETTING UNIT The setting “Unit” menu provides the language (D, GB /USA, F, ES, IT), date, clock (12 /24 h mode) and various volume settings. Please refer to Chapter 7.3 “Beep summary” for a summary of the acoustic signals. You will find information on the setting principle at the start of this chapter. In the sub menu setting you can personalize the ONYX FIT using the my name function. In sleep mode the watch displays the name or any font of up to 8 characters in length. . SETTING TRAINING You can set up a training program in your ONYX FIT. This training program by default has a warm-up, work out with a settable training zone and a cool-down period. In the settings menu you can manually set the time and heart rate for all 3 phases (warm-up, workout and cool-down) manually according to your own requirements. Note: If the warm-up and cool-down are set to “0” the training starts immediately with the workout and ends afterwards. -
Page 16: Main Menu Training
. MAIN MENU TRAINING Your ONYX FIT is equipped with a total of 3 different training types and a Fitness Test. Training type summary: k 1 free training with 3 HR zones k 1 lap training with 3 HR zones/ k 1 training program with 1 HR zone k 1 fitness test Press the Navigation button k ENTER to open the main menu “Training”. Using the PLUS /MINUS buttons you can choose between the free training, lap training, training program and fitness test. If, for example, you want to carry out free training press the Navigation button k ENTER. After you have successfully synchronized your ONYX FIT with your chest belt you can start your training by pressing k START. In the upper area of the screen you can find all the information on your three target zones. You will see your current heart rate in the middle. www.sigmasport.com... - Page 17 . MAIN MENU TRAINING In the lower area you can call up the following values during training depending on the training type: k Total time k Average HR k Highest HR k Kcal k Clock For free training and lap training there are 3 target zones available. The training zones are based on the following objectives: training zone k Approx. –0 % of HR max. Regeneration training, training the metabolism. More fat than carbohydrate is burned at low intensity for longer periods. training zone k Approx. 0 –0 % of HR max. Heart circulation training to improve the aerobic performance.
-
Page 18: Free
.1 FREE TRAINING Time and HR zone: k Training time unlimited k 3 HR zones calculated automatically from HR max. or freely programmed In the upper range of the display you will find all the information on your 3 target zones as well as the current percentage of your heart rate compared with HR max. After ending the free training you have the option of saving your Cool-down HR every 30 seconds for a period of three minutes on the ONYX FIT. YES: save Cool-down HR for 3 min NO: do not save Cool-down HR . LAPS TRAINING Time and HR zone: k 50 laps with max. 9 hours per lap. k 3 HR zones calculated automatically or freely selectable from HR max. Press the Navigation button k NEXT to start the next lap. www.sigmasport.com... -
Page 19: Program
. LAPS TRAINING The new lap is started. The previous lap time flashes for 5 sec in the top display area. In the top area of the display you will also find all the information on your 3 target zones related to your maximum heart rate (HR max.). To start a new lap press the Navigation button k NEXT again. After ending the training lap you can save your Cool-down HR every 30 seconds for a period of 3 min on the ONYX FIT. YES: Cool-down HR is saved for 3 min NO: Cool-down HR is not saved . PROGRAMMES Note: For this training session you can freely select the desired time and HR zone in the Setting /training menu. This enables the user to implement a training program as required. Time and HR zone: k Warm-up: can be set freely (optional) k Main part: can be set freely k Cool-down: can be set freely (optional) -
Page 20: Fitness Test
. FITNESS TEST With your ONYX FIT you can find out your personal Fitness-level. You can check your fitness-progress regularly. Press k ENTER to select FIT TEST. Press k START to start the test. Start with a 5 minute Warm-up. www.sigmasport.com... -
Page 21: Main Menu Time
. FITNESS TEST After the Warm-up start GO with the navigation- button k YES. Go 1.6 km (or 1 mile). This distance corres- pondant 4 laps around a track. After you finished 1.6 km, press FINISH. The following results will appear: k Fitness-level k estimated VO max k Time k End-HR Leave the Menu k END. . MAIN MENU TIME Your ONYX FIT has a main menu “Time”, for all important time functions. Summary of time functions: k Clock k Date k Stopwatch with 1/10 seconds k Countdown timer k Alarm... - Page 22 . MAIN MENU TIME Press the Navigation button k ENTER to open the “Time” menu. The ONYX FIT shows you the current time. Please refer to Chapter 3.2 “Unit settings” for more information setting the time in the Setting unit menu. The ONYX FIT shows you the current date. Please refer to Chapter 3.2 “Unit settings” for more information setting the date in the Setting main menu. The stopwatch is used to measure time separately from training. To start your stop- watch press k START. Then follow the instruc- tions on the screen. www.sigmasport.com...
- Page 23 . MAIN MENU TIME Note: If the stopwatch or countdown timer is activated in the main menu “Time”, these functions continue in the background of sleep mode and the relevant icon is displayed on the screen. The countdown timer counts a freely selectable time down to “0” and then issues an acoustic and optical alarm. To set the countdown timer press the Navi- gation button k CHANGE. Then follow the instructions on the screen. You can also use your ONYX FIT as an alarm or reminder. To set the alarm press the Navigation button k CHANGE. Then follow the instructions on the screen. To leave the time menu press the Navigation button k BACK.
-
Page 24: Main Menu Memory
. MAIN MENU TIME You are now back in the main menu “Time”. . MAIN MENU MEMORY Press the Navigation button k ENTER to open the “Memory” menu. Use the PLUS /MINUS buttons to select the total values and memory 1–7. .1 TOTAL VALUES Press the Navigation button k ENTER to open the total values menu or memory 1–7. In total values you can see the training units you have completed over various periods of time like training diary. In this way you can observe the most important training data over a much longer period than in memory 1–7. www.sigmasport.com... - Page 25 .1 TOTAL VALUES In contrast to memory 1–7 this memory is not used to precisely analyze an individual training unit but rather to analyze the “training discipline” over a longer period (How regularly have I trained in a certain week or month?). Your ONYX FIT saves the most important total values of the training units you have completed over the following periods of time: k Per week (up to 12 weeks) k Per month (up to 12 months) k Since reset For this the following values are displayed for the desired period of time: k Number of training units k Total training time k Average training time k Kcal...
-
Page 26: Memory
. MEMORY 1– In addition to the total values your ONYX FIT has a very detailed memory for analyzing up to 7 independent training units. There is a difference between overall info and the detailed information on the Warm-up, Workout, Cool-down training sections. Depending on the type of training unit com- pleted, the ONYX FIT memory is structured differently to provide an ideal analysis of your training. Your most recently saved training unit is always stored in memory 1 and once 7 training units are stored the oldest training unit is deleted. ..1 OVERALL INFO No matter what the training type when saving a training program general overall information that relates to the complete training program (Warm-up, Workout, Cool-down) is recorded. The overall information for a training unit shows the user the following values: k Date k Start time k Total time k Average HR k Highest HR k Kcal www.sigmasport.com... -
Page 27: Memory Free Training
.. MEMORY FREE TRAINING When you have completed “free training” you can analyze this in detail in your memory. k Overall info k % and time in HR zones k Recovery time for HR after 30 second intervals for details on your ability to recover. .. MEMORY LAP TRAINING When you have completed “lap training” you can analyze this in detail in your memory. k Overall info k % and time in HR zones k Results /lap: average lap time /fastest lap over all laps /time, average and highest HR per lap k Cool down time for HR after 30 second intervals for details on your ability to recover. .. MEMORY TRAINING PROGRAM When you have completed “endurance training” you can analyze it in detail in your memory. For endurance training the following values are shown: k Overall info (cf. 6.2.1) k HR zone and time in HR zone(s) k % in HR zone(s) For training types with warm-up and cool-down the times actually spent in these phases are also shown. -
Page 28: Other Information
. OTHER INFORMATION .1 INFORMATION ON HEART RATE The heart rate (HR) is stated in beats per minute. Maximum heart rate The maximum heart rate (HR max.) is the maximum possible rate at which your heart beats when exploiting your physical performance completely. Your personal HR max. varies with your age, gender, ability to perform, performance related to your type of sport and your physical fitness. We recommend undertaking this test with a doctor and repeating it regularly. The HR max. is approximated automatically in the ONYX FIT using the following mathematical equation: Men: 210 – “half age” – (0.11 x personal weight in kg) + 4 Women: 210 – “half age” – (0.11 x personal weight in kg) The right training pulse The training zone is the range in which the heart rate should move during effective and targeted training. Please always note that general exercise can never address personal issues! Therefore really ideal training can only be designed by a well educated trainer who personally knows the athlete. www.sigmasport.com... -
Page 29: Faq
.1 INFORMATION ON HEART RATE HR zone (health zone) – Health: –0 % of HR max. Designed for: health for people who are new to training (or starting again). This zone is also called the “fat burning zone” and it trains the aerobic metabolism. More fat than carbohydrate is burned or converted to energy over longer times at lower intensity. That is why it is recommended to train at this intensity > 40 min to reduce weight. HR zone (fitness zone) – fitness: 0 –0 % of HR max. Designed for: fitness at advanced level. You already train more intensively in the fitness zone. Training in this zone strengthens basic endurance. HR zone (power zone) – performance: 0 –100 % of HR max. Designed for: training for performance-oriented athletes, partially in anaerobic range. Training in the power zone is very intensive and should only be carried out by well trained athletes. - Page 30 . FAQ Do SIGMA heart rate monitors switch off completely? No – in sleep mode only the time and date are displayed so you can use the heart rate monitor as a normal watch. In this state the ONYX FIT uses only very little power. Why does the display react slowly or is coloured black? The operating temperature may be too high or low. Your heart rate monitor is designed for temperatures between 0 °C and 55 °C (32–140 degrees F). What should I do if the screen display is weak? A weak display may be due to weak batteries. You should change them as quickly as possible – battery type CR 2032 (Item No. 00342) www.sigmasport.com...
-
Page 31: Beep Summary
. BEEP SUMMARY The different volume settings are: Button tones: Button tones give the user acoustic feedback each time a button is pressed. Zone alarm: The zone alarm is an acoustic signal when the user changes from one training zone to the next. Training tones: Training tones always sound when the watch switches from one training phase (e.g. warm-up) to another (e.g. workout). 1 x long: k When entering Zone 1 k always when a recovery pulse is saved (0 sec, 30 sec, 60 sec, …) 2 x long: k When entering Zone 2 k if there is only one zone, when entering this zone 3 x long: k When entering Zone 3 3 x short: k If you are below Zone 1 k above zone 3 k if there is only one zone, when you are below the zone 5 x short: k When there is only one zone, when you are above the zone... -
Page 32: Troubleshooting
. BEEP SUMMARY 3 x short in interval: k Countdown is complete k Alarm 1 x Long – 2 x short – 1 x long – 2 x short – 1 x long: k at end of rest k transfer from warm-up to main part k transfer from main part to cool-down k at end of cool-down 1 x short: k Button beep . TROUBLESHOOTING No chest belt was found. Please ensure you have placed the chest belt correctly. Press SYNC to restart synchronization. Please refer to chapter 2.4 “Heart rate measurement” for more information. During synchronization two or more chest belts were found close by. Move away and press SYNC again to start synchronization. www.sigmasport.com... -
Page 33: Changing The Battery /Waterproofing And Warranty
. TROUBLESHOOTING Important note If no heart rate is shown on the display, this may be due to the following reasons: k The belt with the heart rate transmitter is not worn correctly. k The sensors (electrodes) on the heart rate transmitter are dirty or dry. k Interference from electrical sources (high voltage lines, railways etc.). k Transmitter battery (CR 2032) is dead (Item no. 00342). Before starting to train, consult your doctor to avoid risks to your health. This applies in particular if you have cardio-vascular problems. . CHANGING THE BATTERY AND WARRANTY Changing the battery Battery CR 2032 (Item no. 00342) is used in the heart rate monitor and chest belt. Chestbelt: k Open the top cover with a coin k Pay attention to the polarity! Heart rate monitor: k Open top cover with tool. k Pay attention to polarity! - Page 34 . CHANGING THE BATTERY AND WARRANTY Waterproofing The ONYX FIT is waterproof down to 10 m. Do not press any buttons under water. Warranty We are liable to our contractual partner for faults as defined by law. Batteries are excluded from the warranty. If you need to use the warranty please contact the dealer where you bought the heart rate monitor or send the monitor with proof of purchase and all accessories with adequate postage to: SIGMA Elektro GmbH Dr. - Julius - Leber - Straße 15 D - 67433 Neustadt /Weinstraße Tel. + 49 (0) 63 21- 9120 - 118 E - mail: service@sigmasport.com If your warranty claim is justified we will send you a replacement unit. You only have the right to the current model at the time. The manufacturer reserves the right to make technical changes. www.sigmasport.com...
-
Page 36: Heart Rate Monitors
Heart rate Monitors ONYX FIT SIGMA Elektro GmbH SIGMA SPORT USA Dr. - Julius - Leber - Straße 15 North America D - 67433 Neustadt /Weinstraße 1067 Kingsland Drive Tel. + 49 (0) 63 21- 9120 - 0 Batavia, IL 60510, U.S.A. Fax. + 49 (0) 63 21- 9120 - 34 Tel. +1 630 - 761 - 1106 E - mail: info@sigmasport.com...
