CASUAL
INSTRUCTIONS MANUAL
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CASUAL and is the answer not in the manual?

Questions and answers

Related Manuals for Faber CASUAL

Summary of Contents for Faber CASUAL

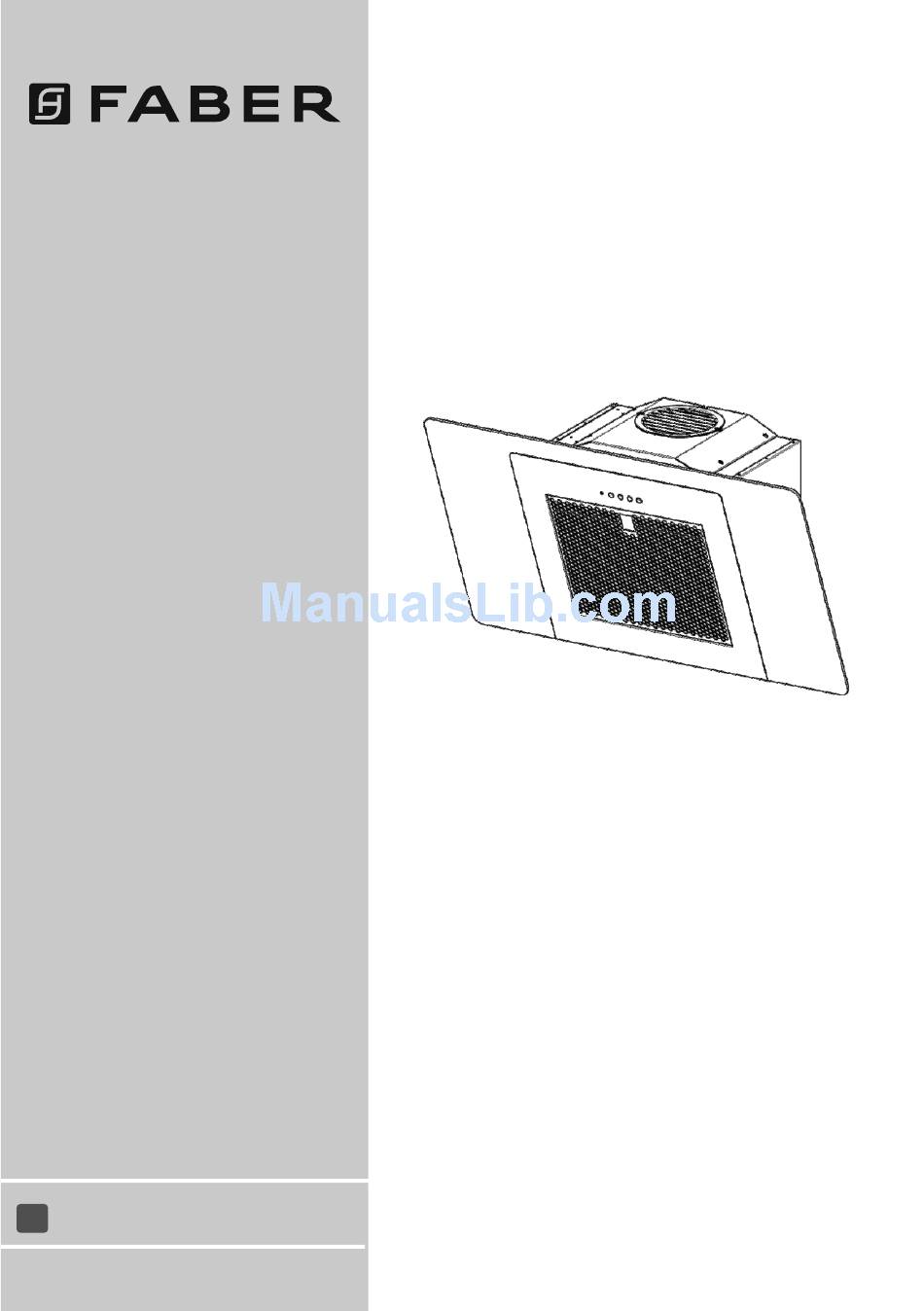

  • Page 1 CASUAL INSTRUCTIONS MANUAL...

  • Page 2: Recommendations And Suggestions

    RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or im- proper installation.
  • Page 3 CHARACTERISTICS Components Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters Upper Section (optional) Lower Section (optional) Directional Air Outlet grille Flange (optional) Angle iron (optional) Filter cover Ref. Q.ty Installation Components 7.2.1 Upper Chimney Section Fixing Brackets (optional) Wall Plugs ( 4 optional ) Wall Plugs SB 12/10 Screws 4,2 x 44,4 ( 4 optional )
  • Page 4 Dimensions...

  • Page 5: Installation

    INSTALLATION Wall drilling and bracket fixing 1÷2 7.2.1 164 164 As a first step, proceed with the following drawings: • a vertical line up to the ceiling or up to the upper limit, at the centre of the area in which the hood is to be fitted;...

  • Page 6: Mounting The Hood Body

    Mounting the hood body • Adjust the two screws Vr, on brackets 11a, to a mini- mum. • Hook the hood canopy onto the two brackets 11a. • Open the Grid by acting on the special handles • From inside the hood canopy, adjust the screws Vr to set the Hood Canopy level.

  • Page 7: Recirculation Version Air Outlet

    RECIRCULATION VERSION AIR OUTLET To install the Recirculation Version of the hood, the optional Ac- tivated charcoal cartridge kit must be purchased. • Screw the filter cover onto the air outlet, using four screws 12c (2.9 x 12.5). • Fix the directional grille 8 on the recirculation air outlet using the 2 screws 12d (2,9 x 9,5) provided.

  • Page 8: Control Panel

    Control panel BUTTON FUNCTIONS T1 Speed Turns the Motor on at Speed one. Turns the Motor off. T2 Speed Turns the Motor on at Speed two. T3 Speed Fixed When pressed briefly, turns the Motor on at Speed three. Light Turns the Lighting System on and off.

  • Page 9: Maintenance

    MAINTENANCE Grease filters CLEANING METAL SELF- SUPPORTING GREASE FILTERS • The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher. • Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
  • Page 10 436005731_ver1...
