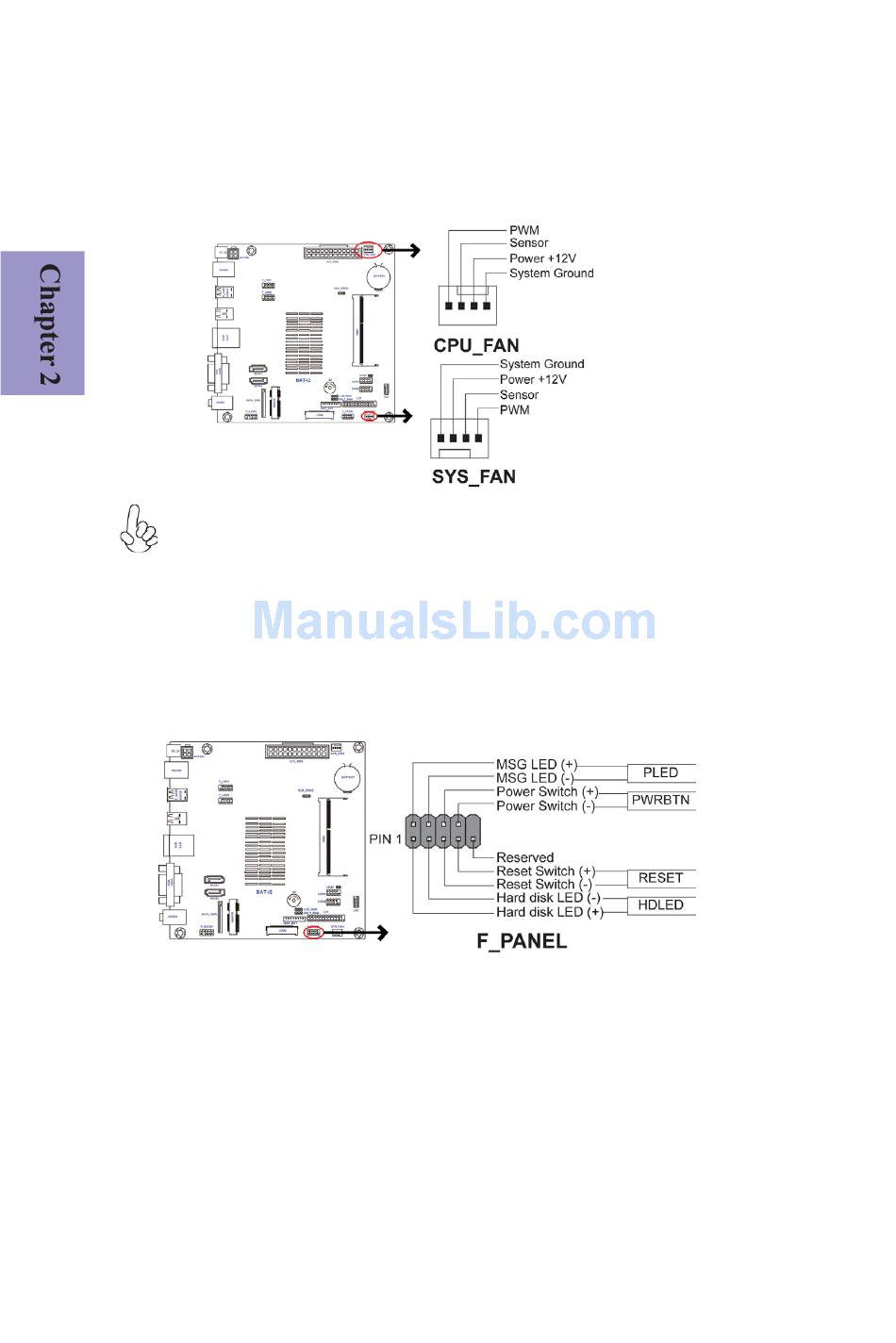

2 & 3. CPU_FAN (CPU Cooling FAN Power Connector) & SYS_FAN (System
Cooling FAN Power Connector)
Connect the CPU cooling fan cable to CPU_FAN.
Connect the system cooling fan connector to SYS_FAN.
Users please note that the fan connector supports the CPU cooling fan of 1.1A
~ 2.2A (26.4W max) at +12V.
4. F_PANEL: Front Panel Header
The front panel header (F_PANEL) provides a standard set of switch and LED headers
commonly found on ATX or Micro ATX cases. Refer to the table below for information:
22
BAT-I2 USER MANUAL
