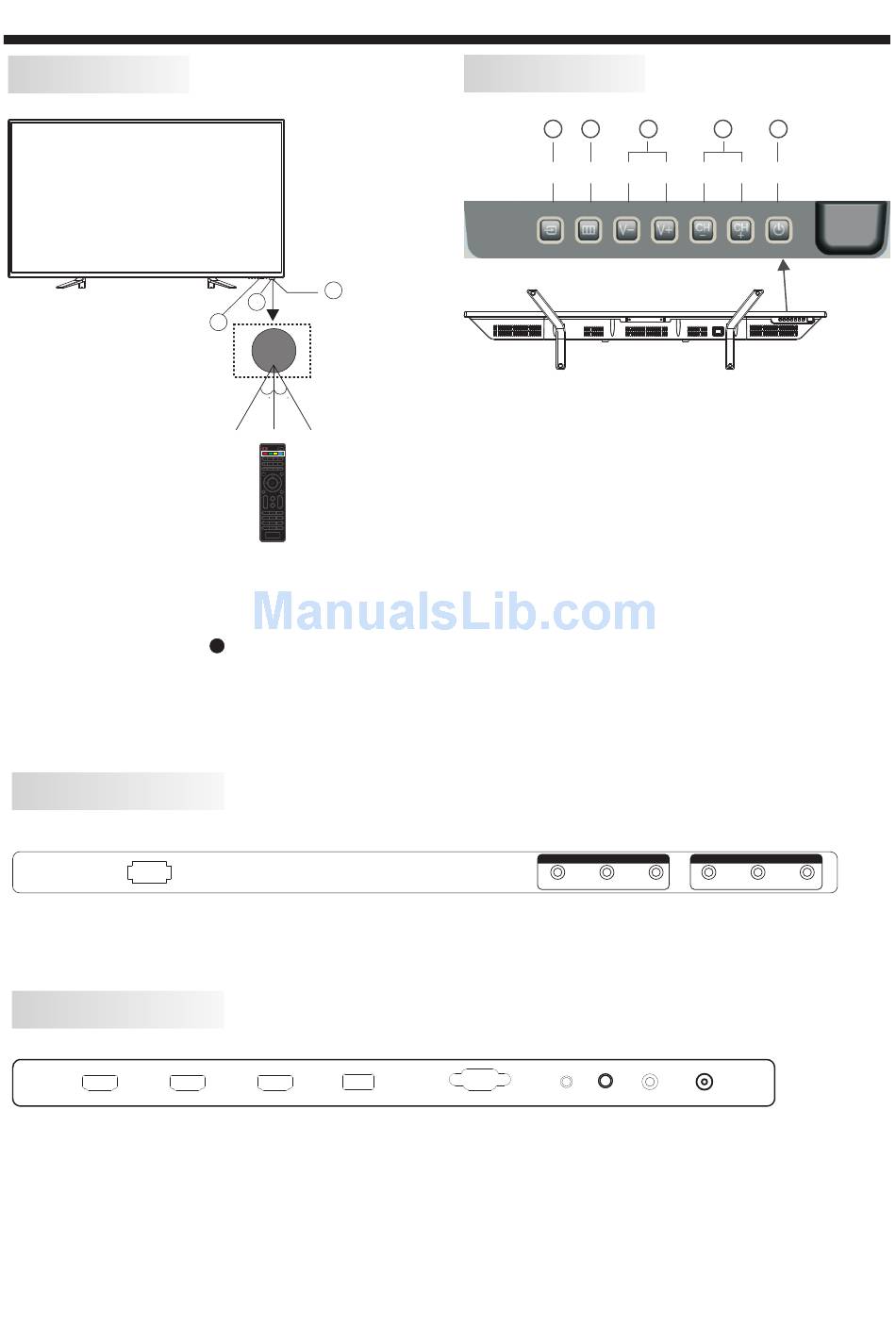

Front panel
1: Remote control sensor.
2: Indicator LED: RED
3: Key board
REAR Connections
100-240V~50/60Hz
All the terminals are(from left to right): Power Socket, VIDEO, AUDIO INPUT, YPbPr INPUT.
Note: AV and YPbPr share the same audio input.
SIDE Connections
HDMI1 HDMI2/MHL
All the terminals are (from left to right):
HDMI1, HDMI2/MHL, HDMI3, USB, VGA, PC AUDIO, HEADPHONE, COAXIAL , RF.
Note: When HDMI has an input signal coming from a DVI source then the audio input signal must be
connected to the PC audio input.
1
2
3
30 30
SLEEP ASPECT
USB VGA YPbPr TV
CH.LIST
S.M
VOL CH
P.M
DISPLAY
STANDBY.
AC-INPUT
HDMI3 USB
Panel keys
1 2
SOURCE MENU V-
1. SOURCE: Display the input source menu.
2. MENU: Display main MENU.
3. V-/V+: Adjust sound level. In MENU mode, press
"V+" or "V-" to adjust the item that you selected.
4. CH-/CH+: In TV mode, press "CH+" or "CH-" to
change the channel up and down. In MENU mode, press
"CH+" or "CH-" to select items.
5. STANDBY: Press this button to turn the unit ON
from STANDBY mode. Press it again to turn the set
back to STANDBY.
COMPOSITE
VIDEO L
HEADPHONE
VGA PC AUDIO
