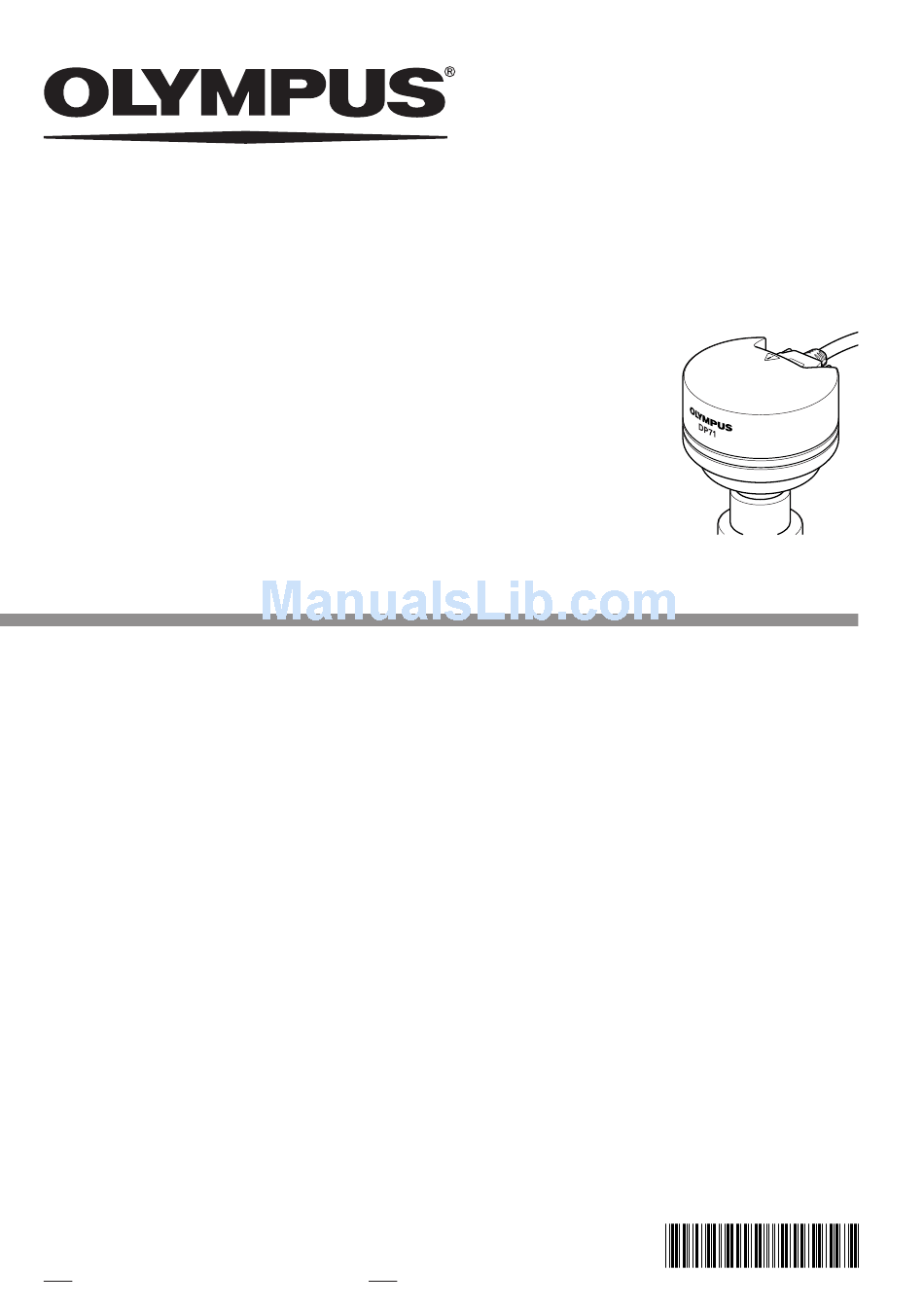

INSTRUCTIONS
DP71
MICROSCOPE DIGITAL CAMERA
This instruction manual is for the Olympus Microscope Digital Camera Model DP71. To ensure the
safety, obtain optimum performance and familiarize yourself fully with the use of this camera, we
recommend that you study this manual thoroughly before operating the camera.
For image operations including recording, editing and saving, please refer to the Online Help for
the DP-BSW Basic Software.
Retain this instruction manual in an easily accessible place near the work desk for future reference.
A X 7 5 3 7
This publication is printed on 100% recycled paper

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP71 and is the answer not in the manual?

Questions and answers

Related Manuals for Olympus DP71

Summary of Contents for Olympus DP71

  • Page 1 DP71 MICROSCOPE DIGITAL CAMERA This instruction manual is for the Olympus Microscope Digital Camera Model DP71. To ensure the safety, obtain optimum performance and familiarize yourself fully with the use of this camera, we recommend that you study this manual thoroughly before operating the camera.
  • Page 2 This device complies with the requirements of directive 89/336/EEC concerning electromagnetic compatibility. The CE marking indicates compliance with the above directive. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 3: Table Of Contents

    DP71 CONTENTS IMPORTANT — Be sure to read this chapter for safe use of the equipment. — SYSTEM CHART NOMENCLATURE HARDWARE INSTALLATION 8-10 Installing the PCI Interface Board ..........................8 Installing the Camera Head ..............................9 Connecting the Cables ................................10...

  • Page 4: Important - Be Sure To Read This Chapter For Safe Use Of The Equipment

    IMPORTANT The DP71 microscope digital camera is designed to be connected to a camera adapter mounted on an Olympus UIS2/UIS series of optical microscope for use in recording of microscopic magnified images at high speed (about 3 seconds) and highest resolution while maintaining high picture quality and high color reproduction.
  • Page 5 2. The computer used with this system should set up and run Microsoft Windows 2000 or XP. For the OS in the computer, the user is requested to create a backup and retain it carefully. (Olympus does not support the matters related to the OS including its backup.)
  • Page 6 A camera adapter with a magnification below 0.5X cannot be used because part of image will be cut off. 2. When the DP71 is connected to the rear port of the U-DPT or U-MPH, the peripheral part of the recorded image may be deteriorated due to the optical performance of the U-DPT or U-MPH.
  • Page 7 6. Sequential connection of PCI units Up to two PCI units including the DP71 and a PCI interface board of the DP70/DP30BW or FV series can be connected in series. However, their simultaneous operation is not available so it is required to select either PCI interface operation.

  • Page 8: Getting Ready

    Getting Ready 1. The camera head uses precision components. Handle it with care and avoid subjecting it to a sudden or severe impact. 2. The image displayed on the monitor may be affected when it is used near equipment generating strong electromagnetic waves.

  • Page 9: System Chart

    DP71 SYSTEM CHART (Note) Microscopes that are not listed in the above may also be applicable. For details, please consult Olympus.

  • Page 10: Nomenclature

    NOMENCLATURE Any equipment connected to the camera head should be an Olympus-designated product or a Camera Head product in compliance with the requirements of IEC60950 or CISPR22/24. If equipment other than these products is connected, Olympus cannot guarantee any performance of the camera.

  • Page 11: Hardware Installation

    DP71 HARDWARE INSTALLATION Installing the PCI Interface Board (Figs. 1 & 2) # Before installing the PCI interface board in the computer, be sure to read the instruction manuals for the computer in order not to damage them. # Be sure to turn off the computer and peripherals and unplug their power cords before installing the PCI interface board.

  • Page 12: Installing The Camera Head

    }The DP-TRAD tripod adapter is provided with two types of screws (2 each) and an Allen wrench. Use only the Phillips screws (x 2) with the DP71. 1. Attach the DP-TRAD tripod adapter | to the camera head 5 and clamp them using the provided Phillips screws (x 2) with a Phillips screwdriver.

  • Page 13: Connecting The Cables

    Be sure to switch off the computer before proceeding to the connections. Always use the cables designated by Olympus. ² Connecting the Interface Cable 1. Connect the connector @ on one end of the interface cable to the connector ²...

  • Page 14: Software Installation

    SOFTWARE INSTALLATION }This chapter describes the installation of the optionally available DP-BSW Basic Software for DP71. Before Installation When the OS is Windows The software cannot be installed unless the user account is registered as “computer administrator.” If the user account is registered as a “Restricted account,” change it to the “Computer administrator” account.
  • Page 15 (be sure to uncheck [Search removable media (floppy, CD- ROM...)]) and click on the [Browse] button. When the Olympus software is searched, a message is displayed indicating that it is not Microsoft-authorized 7. Click on [My Computer] – > [DP-BSW] – > [Drivers], then click on software.
  • Page 16 11. Take out the CD-ROM. 15. When the [System Properties] dialog box is displayed, click 12. Click on the <Start> button. When the [Start] menu is displayed, on the [Hardware] tab and then click on the <Device Man- click on [Control Panel]. ager>...
  • Page 17 DP71 2. Windows 2000 Automatic Installation Procedure Manual Installation Procedure 1. Ensure that the PCI interface board is installed in the PCI 1. Ensure that the PCI interface board is installed in the PCI card slot of the computer. card slot of the computer.
  • Page 18 7. Click on the [Browse] button. 9. Click on the [OK] button. 8. Click on the [Look in:] pull-down menu to open it and select 10. Click on the [Next] button. [DPBSW]. Then, double click on [Drivers] – > [Win2000], select [MalAd9054.inf], and click on the [Open] button.
  • Page 19 DP71 14. When the [Control Panel] dialog box appears, double click [System]. 15. When the [System Properties] dialog box appears, click the [Hardware] tab and click the <Device Manager> button. 16. If the driver has been properly installed, “MalAd Device"...

  • Page 20: Installing The Application Software

    5. Before proceeding to installation, close all running Checking this installs the application, which allows you applications. to control the DP71 for recording images and manage Then click on the [Next] button. the images in a simplified manner using thumbnails.
  • Page 21 DP71 9. The [Select Program Folder] window appears. If you want to 11. When the installation completes, the window below ap- change the program folder, change the name under pears. Then click on the [Finish] button. [Program Folders] or select a folder under [Existing Folders].

  • Page 22: Image Recording Procedure

    IMAGE RECORDING PROCEDURE (Notes) The encircled numbers indicate the control positions in the windows shown on the next page. For detailed operating procedures, refer to the Online Help for the DP Controller and DP Manager. Brightfield Observation Fluorescence Observation Launch DP Manager. Launch DP Manager.

  • Page 23: Displayed Windows

    Camera icon * Folder bar Thumbnail bar Status bar Window display area * The camera name shown on the camera icon is the last camera name used with the DP Controller. The camera name shown immediately after installation may be “DP71/DP70/DP30BW.”...

  • Page 24: External Triggering

    EXTERNAL TRIGGERING }The DP71 can record still images or control a commercially available shutter based on an external trigger signal. Trigger Input · The trigger input from external equipment can be used to start still image recording using the DP-BSW.
  • Page 25 DP71 Trigger Output · The trigger output can be used to control a commercially available shutter. · The positive and negative logics of the trigger output can be switched with the DP Controller. · The trigger output is interlocked with the shutter release/close operations of the DP Controller.

  • Page 26: Specifications

    SPECIFICATIONS DP71 Specifications Item Specifications Camera system Single-CCD color camera (pixel shifting). Image pickup device 2/3-inch color CCD. Total pixels: 1.5 million pixels. Effective pixels: 1.45 million pixels. Pixel pitch: 6.45 µm (H) x 6.45 µm (V). Scanning method: Progressive scanning.
  • Page 27 DP71 Item Specifications Image accumulation* Modes Integral, averaging Accumulation count 64 frames (max.) White balance Modes* Area-specified auto, Entire area-specified auto, Manual Black balance Modes* Area-specified auto, Entire area-specified auto, Manual Contrast modes* Low, Standard, High, Linear. Sharpness filter* Low, Standard, High.

  • Page 28: Troubleshooting Guide

    Under certain conditions, the performance of the camera may be adversely affected by factors other than defects. If problems occur, please review the following list and take remedial action as needed. If you cannot solve the problem after checking the entire list, please contact Olympus for assistance. Problem...
  • Page 29 DP71 Problem Cause Remedy Page f) Picture is too dark. Exposure correction is set in the - Return the exposure correction value (Online direction. to 0 and set the desired exposure manual) correction value. The metering area is set to a bright area...

  • Page 30: Software Uninstallation

    3. When the [Add or Remove Programs] window appears, select [OLYMPUS MICRO DP71/DP70/DP30BW] under [Currently installed programs] and click on the [Change/Remove] button. 4. When the [OLYMPUS MICRO DP71/DP70/DP30BW] window appears, select [Remove] and click on the [Next] button. 5. When the [Confirm File Deletion] window appears, click on the [OK] button.
  • Page 32 Shinjuku Monolith, 3-1, Nishi Shinjuku 2-chome, Shinjuku-ku, Tokyo, Japan Wendenstrasse 14-18, 20097 Hamburg, Germany 3500 Corporate Parkway, P.O. Box 610, Center Valley, PA 18034-0610, U.S.A. One Corporate Drive, Orangeburg, NY 10962, U.S.A. 491B River Valley Road, #12-01/04 Valley Point Office Tower, Singapore 248373 2-8 Honduras Street, London, EC1Y OTX, U.K.
