Copyright Statement
is the registered trademark of Shenzhen Tenda
Technology Co., Ltd. All the products and product names mentioned
herein are the trademarks or registered trademarks of their respective
holders. Copyright of the whole product as integration, including its
accessories and software, belongs to Shenzhen Tenda Technology Co.,
Ltd. Without the permission of Shenzhen Tenda Technology Co., Ltd, any
individual or party is not allowed to copy, plagiarize, imitate or translate it
into other languages.
All the photos and product specifications mentioned in this guide are for
references only. As the upgrade of software and hardware, there will be
changes. And if there are changes, Tenda is not responsible for informing
in advance. If you want to know more about our product information,
please visit our website at www.tendacn.com
Advertisement
Table of Contents
Related Manuals for Tenda S105
Summary of Contents for Tenda S105
-
Page 1: Copyright Statement
All the photos and product specifications mentioned in this guide are for references only. As the upgrade of software and hardware, there will be changes. And if there are changes, Tenda is not responsible for informing in advance. If you want to know more about our product information,... -
Page 2: Table Of Contents
Contents 1. Introduction ----------------------------------------------------------------------------- 2 1.1 Switch Features ------------------------------------------------------------- 2 1.2 Package Contents ----------------------------------------------------------- 3 1.3 Front Panel and Rear Panel Specifications ------------------------- 3 1.4 LED Indicator Specifications -------------------------------------------- 3 2. Installation ------------------------------------------------------------------------------- 4 2.1 Before Connecting to the Network ------------------------------------ 4 2.2 Connecting to End Nodes ------------------------------------------------ 4 2.3 Switch to Router or Switch ---------------------------------------------- 5 3. -
Page 3: Introduction

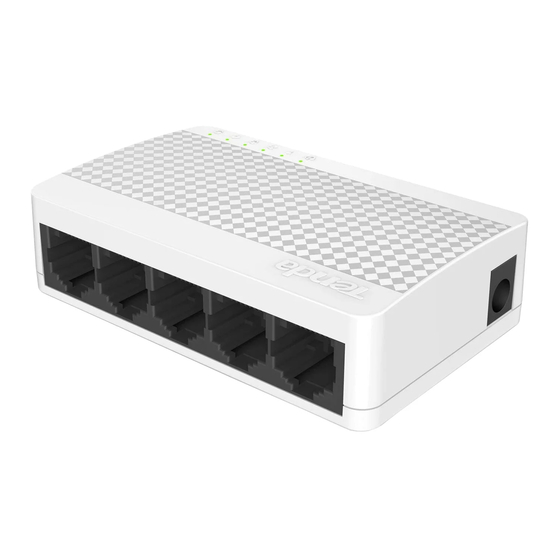

1. Introduction S105/S108 Ethernet Switch, a mini desktop switch, is designed for SOHO, student dormitory and small enterprise users. It has 5/8 10/100Mbps Auto-negotiation Ethernet ports, supports auto MDI/MDIX store-and-forward function to make sure the packet to be sent each port effectively. -
Page 4: Package Contents
1.2 Package Contents Please check the articles carefully after you open the packing as below: One 5/8-Port Fast Ethernet Switch One Power Adapter One User Guide If any of the listed items are missing or damaged, please contact the reseller from whom you purchased for replacement. -
Page 5: Installation
2. Installation 2.1 Before Connecting to the Network Before connecting the S105/S108 to the network, please pay attention to the following instructions: Don’t put heavy articles on the Switch. Power sockets and equipments should be within 1.5 meters of the Switch. -
Page 6: Switch To Router Or Switch
Switch connecting to an end node Please refer to the LED Indicator Specifications. The Link/Act LEDs for each port lights green when the link is available. 2.3 Switch to Router or Switch Connecting to another router or switch... -
Page 7: Product Specification
Fast store-and-forward MAC Address Table 2K(S105)/1K(S108) 14880pps(10Mbps)per port Packet Filtering/ Forwarding Rate 148800pps(100Mbps)per port MAC Address Learning Self-learning, auto-aging. Backplane Bandwidth 1Gbps(S105)/ 1.6Gbps(S108) Power External universal power supply DC INPUT DC 5V 600mA Power Consumption 2.7W(S105)/4.2W(S108) Operating Temperature 0℃-40℃ Storage Temperature -40℃-70℃... -
Page 8: Fcc Statement
FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 9 Toll Free: 400-6622-666 (For Mainland China Only) Toll Free: 1-800-570-5892 (For USA only) Tel: +86 (755) 2344 2820 Skype: tendasz MSN: tendasz@hotmail.com Email: support@tenda.com.cn Headquarter Shenzhen: Add: Tenda Industrial Zone,No.34-1 Shilong Road, ShiyanTown, Baoan District, Shenzhen, China. 518108 Tel:(86)755-27657180 Fax: (86)755-27657178 Email: sales@tenda.com.cn Technical Support: support@tenda.com.cn...
