Page 1: Copyright Statement
Copyright Statement is the registered trademark of Shenzhen Tenda Technology Co., Ltd. All the products and product names mentioned herein are the trademarks or registered trademarks of their respective holders. Copyright of the whole product as integration, including its accessories and software, belongs to Shenzhen Tenda Technology Co.,... -
Page 2: Table Of Contents
Contents 1. Introduction ------------------------------------------------ 2 1.1 Switch Features ------------------------------------- 2 1.2 Package Contents---------------------------------- 3 1.3 Front Panel and Rear Panel Specifications ------- 3 1.4 LED Indicator Specifications ----------------------- 4 2. Installation ------------------------------------------------- 5 2.1 Before Connecting to the Network ---------------- 5 2.2 Connecting to End Nodes ------------------------- 6 2.3 Switch to Router or Switch-------------------------- 6 3. -
Page 3: Introduction

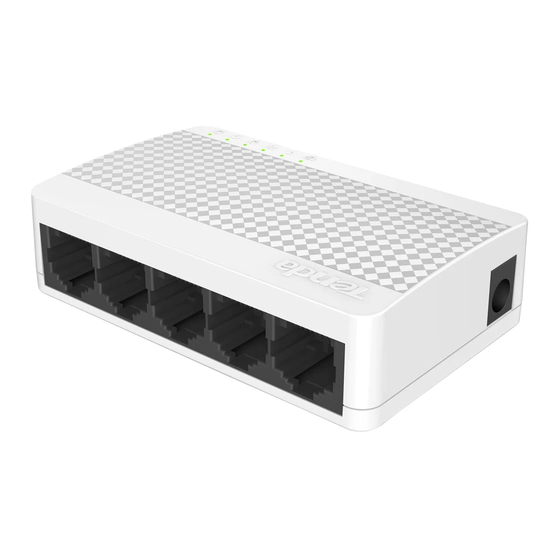

1. Introduction S105/S108 Ethernet Switch, a mini desktop switch, is designed SOHO, student dormitory small enterprise users. It has 5/8 10/100Mbps Auto-negotiation Ethernet ports, supports auto MDI/MDIX store-and-forward function to make sure the packet to be sent each port effectively. “Plug and play” function helps you set up easily. -
Page 4: Package Contents
Backpressure flow control for Half-duplex. Supports non-blocking line speed forwarding. Supports store-and-forward switching method. Supports address auto-learning/aging function and integrates 2K(S105)/1K(S108)MAC address table. 1.2 Package Contents Please check the articles carefully after you open the packing as below: One 5/8-Port Fast Ethernet Switch... -
Page 5: Led Indicator Specifications
to the detailed description of these indicators in LED Indicator Specifications The Rear Panel of the Switch includes 5/8 10/100Mbps RJ45 ports and one AC power port used for AC power input is located in the side panel of the Switch. Notice: Please use the delivery-attached power supply. -
Page 6: Installation
2. Installation 2.1 Before Connecting to the Network Before connecting the S105/S108 to the network, please pay attention to the following instructions: Don’t put heavy articles on the Switch. Power sockets and equipments should be within 1.5 meters of the Switch. -
Page 7: Connecting To End Nodes
2.2 Connecting to End Nodes Use standard Ethernet cable to connect the Switch to end nodes as described below. Switch ports will automatically adjust to the characteristics (MDI-II/MDI-X, speed, duplex) of the device to which is connected. Switch connecting to an end node Please refer to the LED Indicator Specifications. -
Page 8: Product Specification
Connecting to another router or switch Please refer to the LED Indicator Specifications. The Link/Act LEDs for each port lights green when the link is available. 3. Product Specification IEEE802.3 10Base-T Ethernet Standards IEEE802.3u 100 Base-TX Fast Ethernet Protocol CSMA/CD Topology Star 10 Base -T: Cat.3 UTP or... - Page 9 Transmission Method Fast store-and-forward MAC Address Table 2K(S105)/1K(S108) Packet Filtering/ 14880pps(10Mbps)per port Forwarding Rate 148800pps(100Mbps)per port Address Self-learning, auto-aging. Learning Backplane 1Gbps(S105)/ 1.6Gbps(S108) Bandwidth External universal power Power supply AC INPUT AC 9V 600mA Power Consumption 2.7W(S105)/4.2W(S108) Operating 0℃-40℃ Temperature Storage -40℃-70℃...
