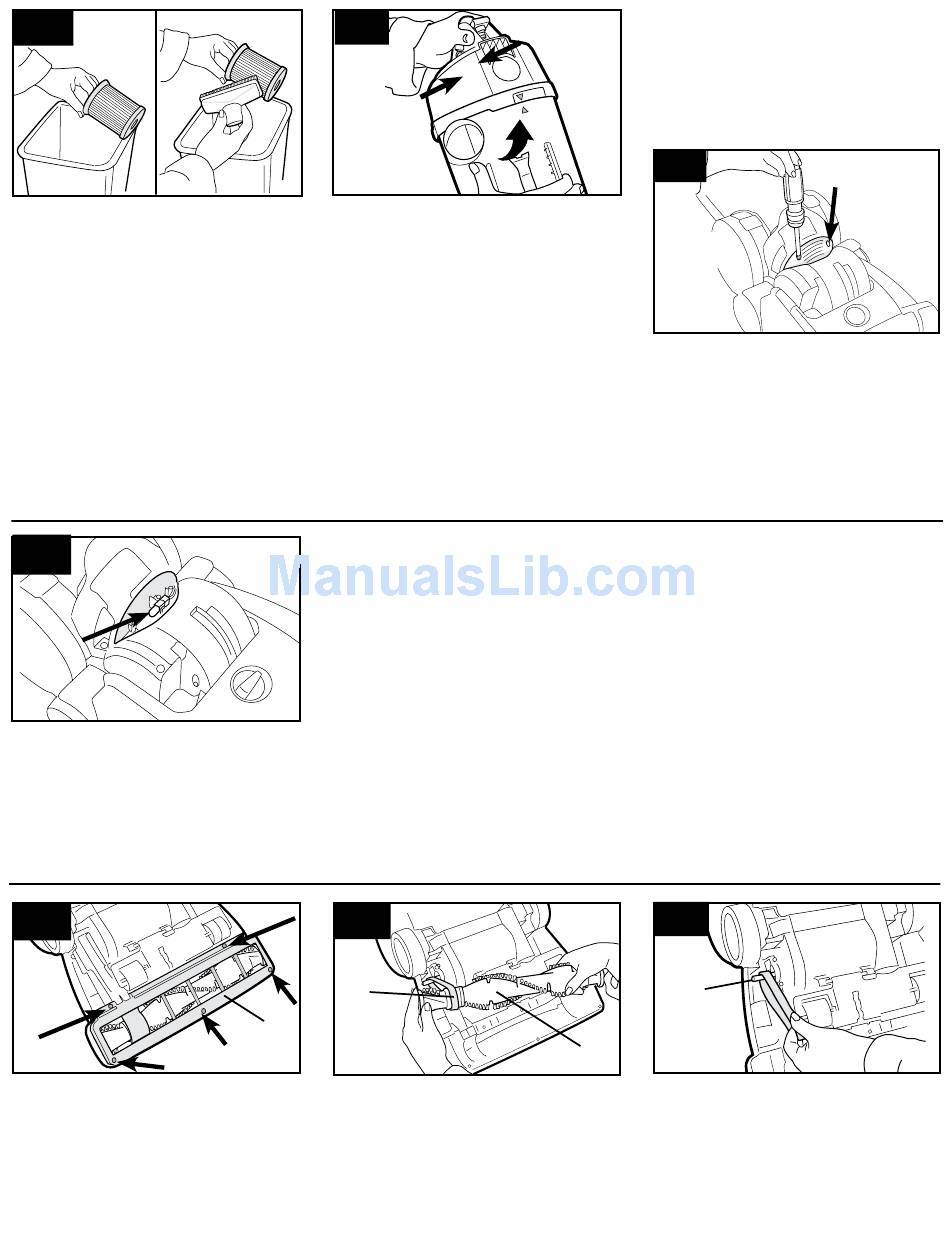

3-12
Tap filter against side of trash container
to remove dirt or brush with the cleaner's
combination tool.
Return pleated filter to inside the filter
cartridge.
3-15
Installing bulb
Pull old bulb straight out of socket. Push
new bulb straight into socket until locked
in place.
Excessive force is not required.
Reposition lens and secure with the
screws.
3-16
How to replace
Disconnect cleaner from electrical
outlet.
Removing bottom plate
Place handle in lowest position and turn
cleaner over so bottom side is up. Remove
the 5 screws as shown with a Phillips
screwdriver. Lift off bottom plate (A).
8
3-13
Replace the filter assembly in the dirt
cup lid, aligning arrows and twisting
clockwise to lock into
Replace dirt cup lid onto dirt cup by
aligning arrows on lid and dirt cup and
twisting clockwise.
Replace dirt cup as described in Fig. 3-5.

Belt replacement

The belt on your Hoover cleaner causes
the agitator to rotate and is important for
the effective operation of the cleaner.
The belt is located under the bottom
plate of the cleaner and should be
checked from time to time to be sure it is
in good condition.
When to replace
Disconnect cleaner from electrical
outlet.
To check belt, remove bottom plate as
shown in Fig. 3-16. Replace belt if it is
stretched, cut or broken.
3-17
C
A

Removing belt

Remove agitator brush roll (B) and used
belt (C).
Discard used belt.
Headlight replace-
ment
What to buy
This cleaner uses a 13 volt, T-3 114 wedge
base bulb, Hoover part No. 27313-107.
3-14
position.
Removing lens
Disconnect cleaner from electrical
outlet.
Press handle release pedal and place
handle in lowest position.
Using a Phillips screwdriver, remove the
two screws as shown and lift off lens.
What to buy
To assure effective operation, use only
genuine HOOVER belts with your clean-
er. When purchasing a new belt, ask for
HOOVER part No. 38528-040 (belt
package part No. 40201-190).
3-18
B
Installing new belt
With lettering on outside of belt, and
positioned as shown, slide new belt over
motor pulley (D).
D
Continued ‹
