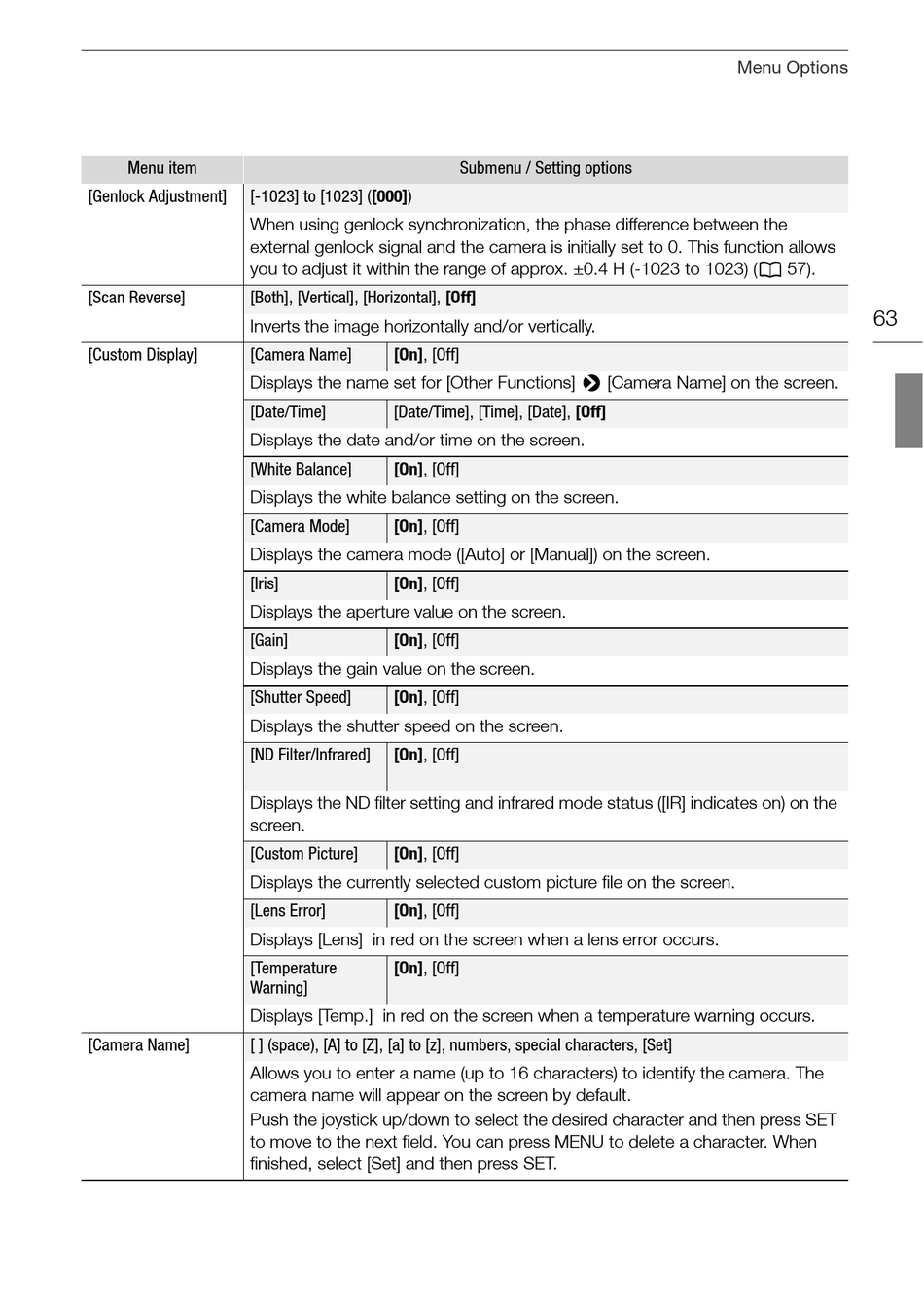

Menu item
[Genlock Adjustment]
[-1023] to [1023] ([000])
When using genlock synchronization, the phase difference between the
external genlock signal and the camera is initially set to 0. This function allows
you to adjust it within the range of approx. ±0.4 H (-1023 to 1023) (A 57).
[Scan Reverse]
[Both], [Vertical], [Horizontal], [Off]
Inverts the image horizontally and/or vertically.
[Custom Display]
[Camera Name]
Displays the name set for [Other Functions] > [Camera Name] on the screen.
[Date/Time]
Displays the date and/or time on the screen.
[White Balance]
Displays the white balance setting on the screen.
[Camera Mode]
Displays the camera mode ([Auto] or [Manual]) on the screen.
[Iris]
Displays the aperture value on the screen.
[Gain]
Displays the gain value on the screen.
[Shutter Speed]
Displays the shutter speed on the screen.
[ND Filter/Infrared]
Displays the ND filter setting and infrared mode status ([IR] indicates on) on the
screen.
[Custom Picture]
Displays the currently selected custom picture file on the screen.
[Lens Error]
Displays [Lens] in red on the screen when a lens error occurs.
[Temperature
Warning]
Displays [Temp.] in red on the screen when a temperature warning occurs.
[Camera Name]
[ ] (space), [A] to [Z], [a] to [z], numbers, special characters, [Set]
Allows you to enter a name (up to 16 characters) to identify the camera. The
camera name will appear on the screen by default.
Push the joystick up/down to select the desired character and then press SET
to move to the next field. You can press MENU to delete a character. When
finished, select [Set] and then press SET.
Submenu / Setting options
[On], [Off]
[Date/Time], [Time], [Date], [Off]
[On], [Off]
[On], [Off]
[On], [Off]
[On], [Off]
[On], [Off]
[On], [Off]
[On], [Off]
[On], [Off]
[On], [Off]
Menu Options
63
