Installation Manual
GV-4008
The GV-4008 Card provides up to 8 video and 8 audio channels, recording up to 240/200
fps (NTSC/PAL) in total with H.264 hardware compression. The new technology of
resolution is employed to enhance the live image of D1 without DSP Overlay. Even in
screen divisions, the largest division can remain at the high-quality D1 resolution.
Minimum System Requirements
Windows XP / Windows Vista / Windows Server 2008
OS
(Not support 64-bit Windows versions)
GV-4008
CPU
GV-4008 x 2
GV-4008
RAM
GV-4008 x 2
GV-4008
HDD
GV-4008 x 2
VGA
ATI Radeon X1300 PCI-E / NVIDIA GeForce 7300 PCI-E
DirectX
9.0c
Power Supply
400 Watts
Packing List
1. GV-4008 Card x 1
2. 1-8 Cam Audio BNC Cable with BNC
Male to RCA Female Adaptors x 1
3. 1-8 Cam Video BNC Cable x 1
4. Hardware Watchdog Jumper Wire x1
Core 2 Duo, 2.33 G
Core 2 Quad, 2.4 G
2 x 1 GB Dual Channels
250 GB
500 GB
5. SATA Power Converter Cable x 1
6. USB Dongle x 1
7. Software DVD x 1
8. Feature Guide x 1
9. Installation Guide x 1
3
Connecting One GV-4008 Card
Connect the video and audio cables to the GV-4008 Card.
Using the supplied SATA Power Converter Cable, connect the GV-4008 Card to power
supply. The Power LED in the top right corner should be lit in green and the 4 status
LEDs (D3, D9, D14, D18) in the left corner should be lit in green to indicate the normal
functionality.
Note:
1. The GV-4008 Card only works when the supplied USB Dongle is inserted to PC.
2. The GV-4008 Card cannot work with microphones which acquire power from the PC.
Use microphones which have external power supply.
May 6, 2010

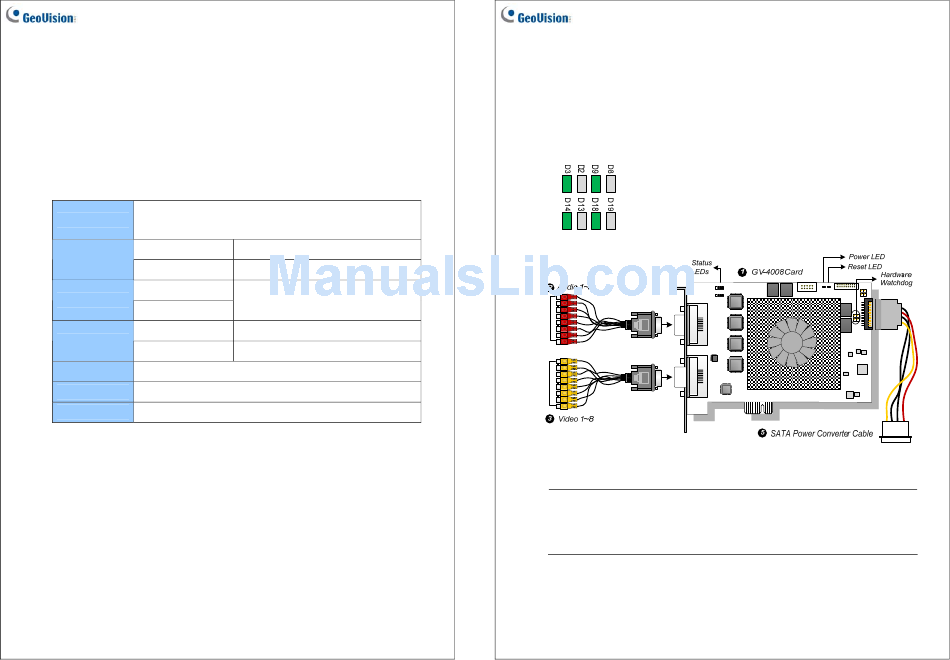

Figure 1-1
4
May 6, 2010
Advertisement
Related Manuals for GeoVision GV-4008
Summary of Contents for GeoVision GV-4008
- Page 1 Connect the video and audio cables to the GV-4008 Card. The GV-4008 Card provides up to 8 video and 8 audio channels, recording up to 240/200 Using the supplied SATA Power Converter Cable, connect the GV-4008 Card to power fps (NTSC/PAL) in total with H.264 hardware compression.
- Page 2 Insert the Hardware Watchdog Jumper Wire to the 2-pin connectors on the Card. The (+) You can install two GV-4008 Cards for a total of 16 channels. Master Card is the card with pin on the Card must connect to the Reset (+) pin on the motherboard, and the (-) pin on 1-8 channels and Slave Card is that with 9-16 channels.
- Page 3 When the Reset LED on the top of the Card is flashing red color or the four Status LEDs are not all on, it indicates that the GV-4008 Card is short of power supply. Make sure your power supply is of 400 watts at least. If not, replace it with the power supply of 400 or larger watts.
- Page 4 Note: 1. GV-4008 does not support the TV-Out function. 2. To work together with GV-4008, GV-NET/IO Card V3.1 must be set in the I/O Box Mode and connected to the PC through USB. 3. In screen divisions, the largest division is set to D1 resolution and the other divisions to CIF resolution.
