GeoVision GV-Multi Quad Card Manual

GV-Multi Quad Card
The GV-Multi Quad Card connects up to 5 TV monitors (spot monitors). One port
supports up to 16 screen divisions, while the other 4 ports support 1 and 4 screen
divisions. It also allows self-defined channel sequence and division location on the
monitor screen.

Packing List

4
1 GV-Multi Quad Card x 1
1-5 D-Type Video Cable x 1
2 5
40-Pin Ribbon Cable x 1
3

Specifications

Interface for
40-pin connector
GV-Video Capture Card
TV Output DB15 to 5 BNC connectors
Input Singal 16 channels
Port 1 supports up to 16 screen divisions.
TV Monitor Layout
Port 2 ~ Port 5 support 1 and 4 screen divisions.
GV-250, GV-600, GV-650, GV-800, GV-1120,
Compatible Model
GV-1240, GV-1480, GV-2004 and GV-2008.
Dimensions (W) x (H) 178 x 104 (mm) / 7.01 x 4.09 (in)

Installing the Drivers

After you install the GV-Multi Quad Card to the computer, the Hardware Wizard
will automatically detect the device. Ignore the Wizard, insert the Software CD,
select Install or Remove GV-Series Driver, and then click Install or Remove
GV-Series Cards Driver. When the dialog box appears, click the Install
button. The card driver will be installed automatically.
When the installation is complete, exit the dialog box.
Note
There are no specific system requirements for the GV-Multi Quad Card. Only
ensure the computer meets the system requirements by the GV Video Capture
Card installed on that computer.
40-Pin Ribbon Cable with Four 10-Pin Headers x 1
(Only for GV-2004 or GV-2008 Card)
Installation Guide x 1

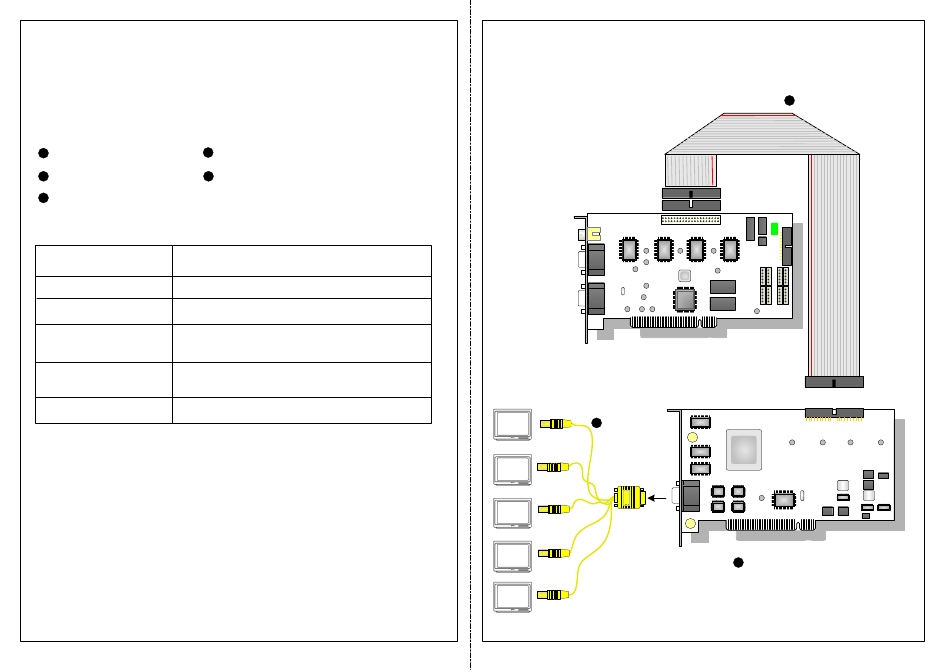

Connections

Use the supplied Ribbon Cable to connect the GV-Multi Quad Card to the GV Video
Capture Card as illustrated below.
GV Video Capture Card
1-5 D-Type
TV 1 2
Video Cable
TV 2
TV 3
TV 4
TV 5
3
40-Pin Ribbon Cable
1
GV-Multi Quad Card
