GeoVision GV-800 Quick Start Manual
Hide thumbs
Also See for GV-800:
- Installation manual (116 pages) ,
- Installing & operating manual (3 pages)
Advertisement
Quick Links
GV-800 / GV-650
The GV-650A and GV-800A Cards have similar appearances, system requirements and packing list
so that we introduce both together in this section. However, you may choose between the two
according to your need for recording rate and audio channels.
Minimum System Requirements
32-bit
Windows XP / Windows Vista / Windows 7 / Windows Server 2008
OS
64-bit
Windows 7 / Windows Server 2008
GV-650A
Pentium 4, 2.4 GHz
GV-650A x 2
Pentium 4, 2.8 GHz with Hyper-Threading
CPU
GV-800A
Pentium 4, 3.0 with Hyper-Threading
GV-800A x 2
Pentium 4, 3.0 GHz Dual Core
Windows XP
RAM
Windows Vista / 7 / Server 2008
GV-650A / GV-800A
HDD
GV-650A x 2 / GV-800A x 2
GV-650A / GV-800A
GV-650A x 2
VGA
GV-800A x 2
DirectX
9.0c
Packing List
1. GV-800A or GV-650A Card x 1
2.
Audio Extension Card x 1 **
3. 1-8 Cams with 4-Port Audio D-Type Cable x 1
4. 9-16 Cams D-Type Cable x 1 *
* Supplied with 12-16 Cams D-Type Video Capture Card
** Supplied with BNC Video Capture Card
2 x 512 MB Dual Channels
2 x 1 GB Dual Channels
80 GB
160 GB
ATI Radeon X600 / NVIDIA 6200
ATI Radeon X1300 PCI-E / NVIDIA
GeForce 7300 PCI-E
5. Hardware Watchdog Jumper Wire x 1
6. Software CD x 1
7. Feature Guide x 1
8. Installation Guide x 1
March 8, 2010
Connecting One GV-650A/GV-800A Card
There are two types of GV-800A and GV-650A Cards: BNC and D-Type. BNC type only provides
four video channels; audio extension card is required for extension. D-Type can provide up to 16
video channels and four audio channels together.
For the D-Type video capture card, plug the black video/audio cable into the black connector on the GV-650A/800A Card; the blue
video cable into the blue connector, as illustrated below.
Video 1~8 (Black)
3
Audio 1~4 (White)
3
4
Video 9~16 (Blue)

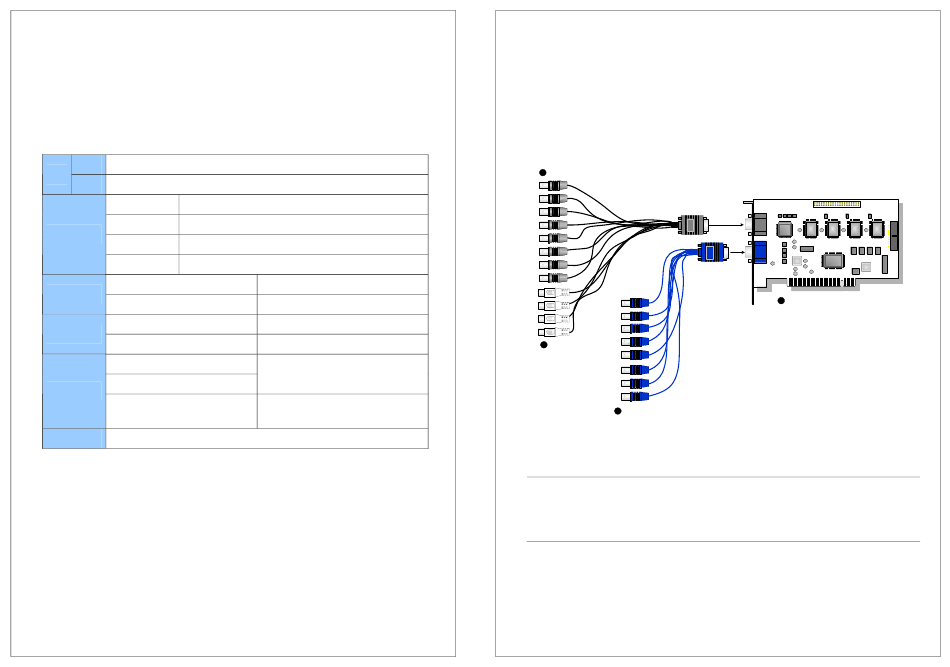

Figure 1-11 D-Type GV-650A or GV-800A Card connections
Note:
1. The GV-650A Card only supports two audio channels so that only two audio ports can work in
the supplied 1-8 Cams with 4-Port Audio D-Type cable.
2. To install two GV-800A Cards, ensure one of both must have PCI-E interface.
GV-800A/650A Card
1
March 8, 2010
