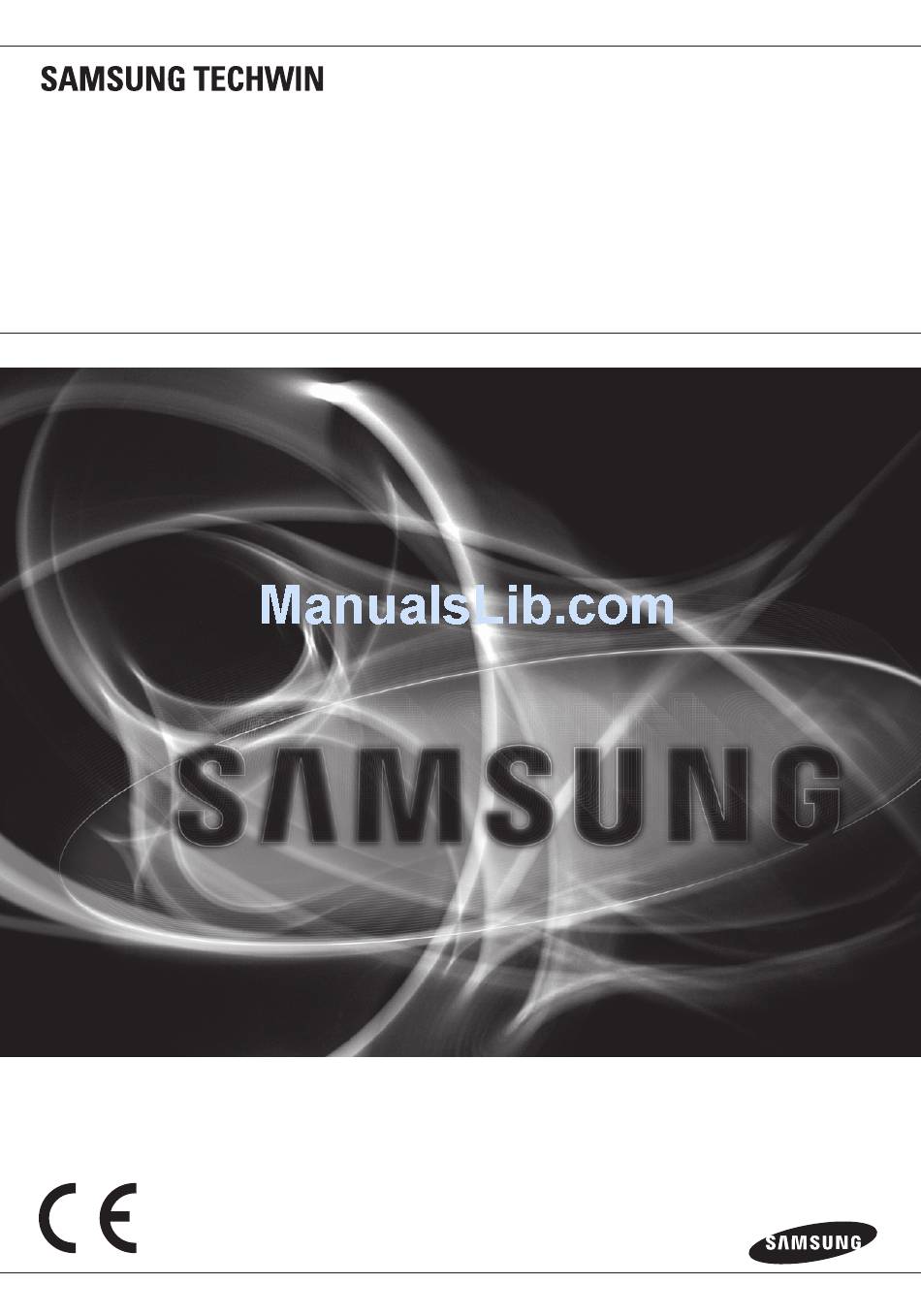

Page 1: Dome Camera
High Resolution Vandal-Resistant Dome Camera User Manual SCV-5082... -
Page 2: User Manual
Samsung Techwin. Disclaimer Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own responsibility. - Page 3 Before operating the camera, confirm the camera model and correct input power voltage. To help you understand this manual thoroughly, we'll introduce our model description. ■ SCV-5082 SERIES • NTSC MODEL • PAL MODEL SCV-5082N SCV-5082P ■ MODEL DESCRIPTION • SCV-5082X SIGNAL SYSTEM • SIGNAL SYSTEM...
- Page 4 safety information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.
- Page 5 If this product fails to operate normally, contact the nearest service center. never disassemble or modify this product in any way. (samsung is not liable for problems caused by unauthorized modifications or attempted repair.) When cleaning, do not spray water directly onto parts of the product.
-
Page 6: Fcc Statement
safety information fCC statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : This device may not cause harmful interference, and This device must accept any interference received including interference that may cause undesired operation. -
Page 7: Important Safety Instructions
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environment-friendly products.The Eco mark represents... -
Page 8: Table Of Contents
contents inTroDuCTion Features Components and Accessories Component names and Functions insTallaTion Before installation Installation Adjusting the monitoring direction for the camera ConnECTion Connecting to Monitor Connecting to Power Using Coaxial Communications CamEra oPEraTion Menu Configuration Menu Setup TroublEshooTing Troubleshooting sPECifiCaTions Specifications Dimension _ contents... -
Page 9: Introduction
0.02Lux (F1.4, 30IRE), 0.0006Lux (1sec, F1.4, 30IRE) B/W : 0.005Lux (F1.4, 50IRE), 0.0001Lux (1sec, F1.4, 50IRE) 0.002Lux (F1.4, 30IRE), 0.00006Lux (1sec, F1.4, 30IRE) ssnr4 (samsung super noise reduction) function High performance W7 Chip removes noises of GAIN resulting from the low light level and shows a vivid, high definition video even in the dark place. -
Page 10: Components And Accessories
- English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Russian, Czech, Polish, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese COmpOnentS anD aCCeSSOrieS Check if the following items are included in the product package. Quick Manual SCV-5082 SCV-5082 Quick Manual Screws Video Output Cable... -
Page 11: Component Names And Functions
ComPonEnT namEs anD funCTions ➍ Dome Cover shield Case rotate base : control rotating angle of camera. Vari-focal lens module : 3~10mm (F1.4). ➍ function setup switch : Display the menu on the screen and move the cursor to four directions to confirm status or after changing a selected item. -
Page 12: Installation
Installation bEforE insTallaTion Ensure you read out the following instructions before installing the camera: You have to check whether the location (ceiling or wall) can bear five times the weight of your camera. Don’t let the cable to be caught in improper place or the electric line cover to be damaged. ... - Page 13 installing the camera on a ceiling or wall Drill holes on the ceiling by matching to the holes on the case bed, and insert plastic anchors (HUD 5) (not included) fully into the holes. Fix the case bed on the ceiling by using Tapping screws (M4.6 X L50). (3 places) Tapping screw Connect Power and video cables and arrange them through the hole you want to pass when mounting the main body on the mounting bracket, note that not...
- Page 14 Adjust the lens in a desired direction. Secure the Shield case to the main unit. Fasten the dome cover to the main body of the camera with an L-wrench. FRONT FRONT FRONT Main body Shield case Dome cover The installation should be done by qualifi ed service personnel or system installers. If the ceiling material is not strong enough to hold the installation screws, the camera may fall off.
-
Page 15: Adjusting The Monitoring
aDJusTing ThE moniToring DirECTion for ThE CamEra FRONT Lens rotation Tilt Adjusting the monitoring direction You can adjust the camera direction only when the camera is fixed on the ceiling. Where, rotating the camera unit to the left or right is called Pan, adjusting the tilt is called Tilt, and turning the lens on its axis is called Rotation. -
Page 16: Connection
ConnECTing To moniTor Connect the Video OUT port on the rear panel of the camera to a monitor. SCV-5082 Monitor As the connecting method varies with the instruments, refer to the manual supplied with the instrument. Only connect the cable when the power is turned off. -
Page 17: Using Coaxial Communications
When the resistance value of copper wire is at [20°C(68°F)] Copper wire size (AWG) #24 (0.22mm #22 (0.33mm #20 (0.52mm #18 (0.83mm Resistance value(Ω/m) 0.078 0.050 0.030 0.018 Voltage Drop (V/m) 0.028 0.018 0.011 0.006 As shown in the table above, voltage decreases as the wire gets longer. ... - Page 18 connection Video Cable The camera's video output port is connected to the monitor with a BNC coaxial cable, shown below. If the distance between the camera and the monitor exceeds the recommended maximum, please use an auxiliary video amp. Recommended Cable Distance Specification 300m...
-
Page 19: Menu Setup
camera operation mEnu ConfiguraTion main sETuP BASIC DAY/NIGHT BACKLIGHT ● ● ● PROFILE INDOOR USER ● ● ● SSDR ● ● OUTDOOR INDOOR ● ● ● WHITE BAL ● AWC SET MANUAL MERCURY ● ● ● BRIGHTNESS ● LENS ●... - Page 20 camera operation MAIN SETUP Select the function ▶ 1. PROFILE BASIC Change the status using the Function using the Function 2. SSDR Setup switch. Setup switch. 3. WHITE BAL 4. EXPOSURE 5. BACKLIGHT 6. SPECIAL 7. EXIT SAVE Press the Function Setup switch. Main SETUP menu is displayed on the monitor screen.
- Page 21 If you select the traffic monitoring mode, the shutter will be set to 1/200 sec. Noise can be detected at night. ssDr (samsung super Dynamic range) If an object has a large variance between bright and dark areas, it will keep bright areas bright and make selected dark areas bright, so that the overall brightness can be maintained.
- Page 22 camera operation White bal (White balance) Use the White Balance function to adjust the screen color. When the SETUP menu screen is MAIN SETUP displayed, select ‘White Bal’ by 1. PROFILE BASIC using the Function Setup switch so 2. SSDR that the arrow indicates ‘White Bal’...
- Page 23 ExPosurE When the SETUP menu screen is displayed, select ‘EXPOSURE’ by using the Function Setup switch so that the arrow indicates ‘EXPOSURE’. Select a desired mode using the EXPOSURE SETUP Function Setup switch. ▶ BRIGHTNESS ---- ---- brighTnEss : Adjusts the video ...
- Page 24 camera operation baCKlighT When the SETUP menu screen is displayed, select ‘BACKLIGHT’ by using the Function Setup switch. so that the arrow indicates ‘BACKLIGHT’. Select a desired mode using the Function Setup switch depending on the camera purpose. usEr blC : ...
- Page 25 sPECial When the SETUP menu screen is displayed, select ‘SPECIAL’ by using the Function Setup switch so that the arrow indicates ‘SPECIAL’. Select a desired mode using the SPECIAL SETUP Function Setup switch. DISPLAY ▶ 1. DisPlaY COMM ADJ IMAGE ADJ ❶...
-
Page 26: Image Adj
camera operation FONT COLOR : You can change the OSD font color. (White, Yellow, Green, Red, Blue) LANGUAGE : You can select the menu language according to your requirements. RETURN : Return to the SPECIAL menu. Comm aDJ (Communication adjustment) : ... - Page 27 DaY/nighT : You can display pictures in color or in black and white. ❶ If the SPECIAL menu screen is displayed, use the Function Setup switch so that the arrow indicates ‘DAY/NIGHT’. ❷ Select a desired mode using the Function Setup switch according to the picture display you want.
- Page 28 camera operation DEfog : Y ou can use the defog mode to allow the camera to automatically detect the fog density of the screen and display a clear image despite smog, fog or general poor visibility. ❶ If the SPECIAL menu screen is displayed, use the Function Setup switch so that the arrow indicates ‘DEFOG’.
-
Page 29: Video Analytics
ViDEo analYTiCs ❶ If the SPECIAL menu screen is VIDEO ANALYTICS displayed, use the Function Setup ▶ 1. TAMPERING switch so that the arrow indicates 2. MOTION ‘VIDEO ANALYTICS’. RETURN ❷ Select a desired mode using the Function Setup switch. TAMPERING : If the screen view TAMPERING is obstructed or the... - Page 30 camera operation DET. AREA : Set the areas of MOTION DETECT AREA motion detection. SEL AREA AREA ▶ SEL AREA : Select from four MODE areas that users SENSITIVITY ---- ---- want. -------- MODE : Determine whether to BOTTOM -------- ...
- Page 31 - If multiple movements keeps occurring randomly, such as scene switching or sudden light changes - If an object fixed in the same location keeps moving - Moving away from the camera or approaching the camera. Little location change on the screen.
- Page 32 troubleshooting TroublEshooTing If you have trouble operating your camera, refer to the following table. If the guidelines do not enable you to solve the problem, contact an authorized technician. Problems Troubleshooting Nothing appears on the screen. Check that the power cord and line connection between the ...
- Page 33 specifications sPECifiCaTions sCV-5082n sCV-5082P Video Imaging Device 1/3” 1.3M CMOS Total Pixels 1312(H) x 1069(V) 1305(H) x 1049(V) Effective Pixels Progressive Scan Scanning System Synchronization Internal Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz Color:1000TVL Horizontal Resolution B/W:1000TVL...
- Page 34 specifications sCV-5082n sCV-5082P AUTO / MANUAL / OFF Defog Purple Fringe Reduction ( Off / Low / Middle / High) Purple Fringe Reduction Digital Image Stabilization Off / On Tampering Off / On Motion Detection Off / On Privacy Masking Off / On (24 programmable zones with 4points polygonal masking) Gain Control Off / Low / Middle / High...
-
Page 35: Dimension
DimEnsion Unit: mm (inch) English_3... - Page 36 MEMO...
- Page 37 SALES NETWORK SAMSUNG TECHWIN CO., LTD. 6, Pangyo-ro 319beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, SEOUL 463-400 Rep. of KOREA Tel : +82-70-7147-8753, 8764 Fax : +82-31-8018-3740 www.samsungsecurity.com SAMSUNG TECHWIN AMERICA Inc. SAMSUNG TECHWIN EUROPE LTD. 100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660 2nd Floor, No.
