Samsung SCV-2082R User Manual

Samsung SCV-2082R User Manual

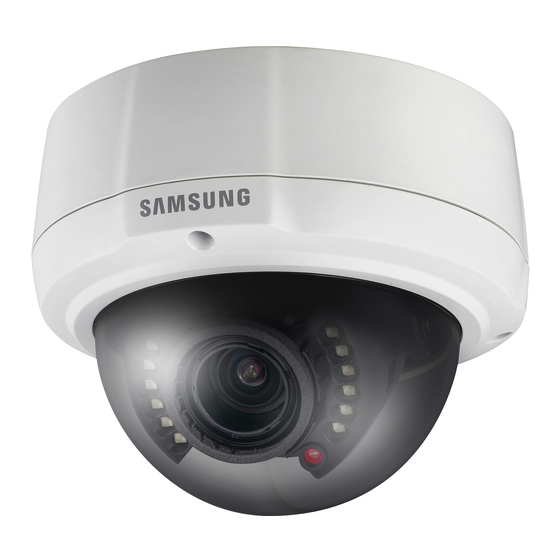

High resolution ir vandal-resistant dome camera
Hide thumbs Also See for SCV-2082R:
Table of Contents

Advertisement

Quick Links

Download this manual
High Resolution IR Vandal-Resistant

Dome Camera

User Manual
SCV-2082R

Advertisement

Table of Contents
loading

Related Manuals for Samsung SCV-2082R

Summary of Contents for Samsung SCV-2082R

  • Page 1: Dome Camera

    High Resolution IR Vandal-Resistant Dome Camera User Manual SCV-2082R...

  • Page 2: User Manual

    Samsung Techwin. Disclaimer Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own responsibility.
  • Page 3 Before operating the camera, confirm the camera model and correct input power voltage. To help you understand this manual thoroughly, we’ll introduce our model description. ■ SCV-2082R SERIES • NTSC MODEL • PAL MODEL SCV-2082RN SCV-2082RP ■ MODEL DESCRIPTION • SCV-2082RX _ SIGNAL SYSTEM •...

  • Page 4: Safety Information

    Safety information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.
  • Page 5 If this product fails to operate normally, contact the nearest service center. never disassemble or modify this product in any way. (samsung is not liable for problems caused by unauthorized modifications or attempted repair.) When cleaning, do not spray water directly onto parts of the product.

  • Page 6: Fcc Statement

    Safety information fCC sTATemeNT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : This device may not cause harmful interference, and This device must accept any interference received including interference that may cause undesired operation.

  • Page 7: Important Safety Instructions

    15.This product is intended to be supplied by a Listed Power Supply Unit marked "Class2" and rated from 24 Vac (50/60) Hz or 12 Vdc, min.0.3A . Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environment-friendly products.The Eco mark represents...

  • Page 8: Table Of Contents

    Contents INTRODUCTION Features What’s included Component names and Functions Adjust the lens's zoom and focus CONNECTION Connecting to Monitor Connecting to Power Function jack Using coaxial communications SETUP Menu Confi gration Menu Setup TROUBLESHOOTING Troubleshooting SPECIFICATIONS Specifi cations Dimension 8_ Contents...

  • Page 9: Introduction

    Outdoor Visibility range 20M The IR LEDs of the SCV-2082R automatically illuminates viewing area in the extreme darkness allowing the camera a long-range visibility of up to 20 meters. IP66 Approved/Dust and Rain Resistant With dust and rain resistant design, the camera can be installed outside under building eaves or places that are exposed to the dust and rain.

  • Page 10: What's Included

    Czech, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese WHAT’S INCLUDED Check if the following items are included in the product package. High Resolution IR Small Vandal-Resistant Dome Camera Quick Set-up Guide SCV-2081R Installation Video SCV-2082R Quick Manual Output Cable Wrench Tapping Screw (3EA) 10_ Introduction...

  • Page 11: Component Names And Functions

    COMPONENT NAMES AND FUNCTIONS Front ❶ ❻ ⓫ ❿ ➒ ➑ ❹ ➐ Dome Cover ❶ Pan Base : control panning angle of camera ❷ ❸ x3.6 Vari-focal Lens Module : 2.8 ~ 10.0mm (F1.2). Function Setup Switch : Display the OSD menu and move the cursor up, down, ❹...
  • Page 12 Introduction DISASSemblING Using the L-wrench provided, loosen 3 screws by turning them counterclockwise and separate the dome cover. Dome Cover INSTAllING THe CAmeRA ON A CeIlING OR WAll Drill holes on the ceiling by matching to the holes on the case bed,and insert plastic anchors (HUD 5) (not included )fully into the holes.
  • Page 13 Connect power and video cables and arrange them through the hole you want to pass when mounting the main body on the mounting bracket, note that not to damage or squeeze the cables. Function jack Video output jack Power input terminal Cover-protective sponge Secure the camera on its mounting bracket with the three screws using L Wrench(included) .
  • Page 14 Introduction ADJUST THe pANNING, TIlTING & ROTATION WHIle WATCHING THe mONITOR 73˚ 174˚ 176˚ Rotate Base Tilt Base Pan Base You can adjust camera to any direction by using Pan, Tilt, Rotate mechanism. Pan Base moves by 176˚ to each side direction and 352˚ on the whole. ...

  • Page 15: Connection

    Connection CONNeCTING TO mONITOR Connect the VIDEO-OUT jack to the VIDEO-IN jack of monitor. Monitor CCTV Camera As the connecting method varies with the instruments, refer to the manual supplied  with the instrument. Only connect the cable when the power is turned off. ...

  • Page 16: Using Coaxial Communications

    Connection * Standard voltage for camera operation : DC 12V ±10%, AC 24V ± 10% * There may be some deviation in voltage drop depending on the type of wire and the manufacturer. Be sure to connect power only after all the installation is complete. Note that DC adaptor is not supplied with camera.

  • Page 17: Menu Setup

    setup meNU CONfIGRATION Setup menu leNS ● BRIGHTNESS SHUTTER ● ● ● eXpOSURe SENS-UP RETURN ● ● eXpOSURe ● OFF ● AUTO ● MANUAL ● ATW ● OUTDOOR ● INDOOR WHITe bAlANCe ● MANUAL ● AWC→SET bACKlIGHT ● ● ● USER BLC SSNR3 ● ● ● ● ● COLOR AUTO EXTERN...

  • Page 18: Setup

    Setup MAIN SETUP 1.LENS Select the function using Change the status 2.EXPOSURE the Function Setup switch. using the Function Setup switch. DEFOG WHITE BAL BACKLIGHT SSNR3 DAY/NIGHT AUTO 8.SPECIAL 9.EXIT SAVE Select a desired function using the Function Setup switch. Place the cursor over a desired item.
  • Page 19 EXPOSURE 1. When the SETUP menu screen is displayed, select EXPOSURE by using the Function Setup switch so that the arrow indicates 'EXPOSURE'. Select a desired mode using the Function EXPOSURE SETUP Setup switch. 1.BRIGHTNESS IIIIIIIII IIIIIIII  BRIGHTNESS : Adjusts the video brightness. －－－...
  • Page 20 White Balance operation may become unstable. BACKLIGHT The SCV-2082R is designed to deliver a distinctive subject and background at the same time, even when the subject is backlight, by adopting a function of the proprietary W6 DSP chip.
  • Page 21 2. Select a desired mode using the Function Setup switch depending on the camera purpose. UseR blC : Enables a user to directly  BLC SETUP select a desired area from a ▶ 1.LEVEL MIDDLE picture, and to view the area 2.TOP IIIII ...
  • Page 22 Setup DAY/ NIGHT You can display pictures in color or black and white. 1. When the SETUP menu screen is displayed, select ‘DAY/NIGHT’ by using the Up and Down buttons so that the arrow indicates ‘DAY/NIGHT’. 2. Select a desired mode using the Left and Right buttons according to the picture display you want.
  • Page 23 SPECIAL Setup 1. When the SETUP menu screen is displayed, select ‘SPECIAL’ by using the Function switch so that the arrow indicates ‘SPECIAL’. SPECIAL 2. Select a desir ed mode using the Function Setup ▶ 1.IMAGE ADJ switch. ＯＦＦ 2.CAM TITLE ＯＦＦ...
  • Page 24 Setup : You can select the menu language according to your requirements. lANGUAGe RUTURN : Select this to save the menu settings and return to the IMAGE ADJ SPECIAL menu.  CAm TITle : If you enter a title, the title will appear on the monitor. 1 If the SPECIAL menu scr een is displayed, use the Function Setup switch so that the arrow indicates ‘CAM TITLE’.
  • Page 25  pRIVACy : Mask an area you want to hide on the screen. 1 When the SPECIAL menu screen is displ- PRIVACY AREA SETUP ayed, press the Function Setup switch so ▶ 1.AREA AREA1 that the arrow indicates ‘PRIVACY’. 2.MODE Set up the mode using the Function Setup 3.MASK COLOR GREEN...
  • Page 26 When the power is DC 12V, the SYNC menu is fixed to the ‘INT’ mode.  COaX : COAX option is set to "On" will specify the use of coaxial communication.  SSDR(samsung super dynamic Range) SSDR illuminates darker areas of an image while...
  • Page 27 RETURN : Select this to save the SPECIAL menu settings and return to the MAIN  SETUP menu. EXIT Select a desired EXIT mode using the Function Setup switch depending on the camera purpose.  sAVe : Save the current settings and exit the MAIN SETUP menu. ...

  • Page 28: Troubleshooting

    Troubleshooting TROUBLESHOOTING If you have trouble operating your camera, refer to the following table. If the guidelines do not enable you to solve the problem, contact an authorized technician. SOLUTION PROBLEM ▶ Check that the power cord and line connection between the Nothing appears on the screen.

  • Page 29: Specifications

    Specifications SPECIFICATIONS SCV-2082RN SCV-2082RP Video Imaging Device 1/3” Super HAD CCD (Double Scan) 1020(H) x 508(V) 1020(H) x 596(V) Total Pixels 976(H) x 494(V) 976(H) x 582(V) Effective Pixels Scanning System 2:1 Interlace Synchronization Internal / Line Lock Frequency H : 15.734KHz V:59.94Hz H: 15.625KHz V: 50.00Hz 700 TV lines ( ER Mode ), B/W:700 TV Line Horizontal Resolution...

  • Page 30: Dimension

    Specifications SPECIFICATIONS SCV-2082RN SCV-2082RP Backlight Compensation OFF / USER BLC / HLC Digital Noise Reduction 3D DNR ( Off/On ) Contrast Enhancement SSDR ( Off/On ) Defog Off / Auto / Manual Motion Detection Off / On Privacy Masking Off / On (8 programmable zones) Sens-up (Frame Integration) 2x ~ 512x OFF/ LOW/ MIDDLE/ HIGH...
  • Page 31 DImeNSION Unit : mm(Inches) 137.0 (5.39") 100.0 (3.94") English_31...
  • Page 32 SAMSUNG TECHWIN AMERICA Inc. SAMSUNG TECHWIN EUROPE LTD. 100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660 Samsung House, 1000 Hillswood Drive, Hillswood Business Park Toll Free : +1-877-213-1222 Direct : +1-201-325-6920 Chertsey, Surrey, UNITED KINGDOM KT16 OPS TEL : +44-1932-45-5300, FAX : +44-1932-45-5325 Fax : +1-201-373-0124 www.samsungcctvusa.com...
