L3540, L4240, L5040, L5240, L5740, WSM

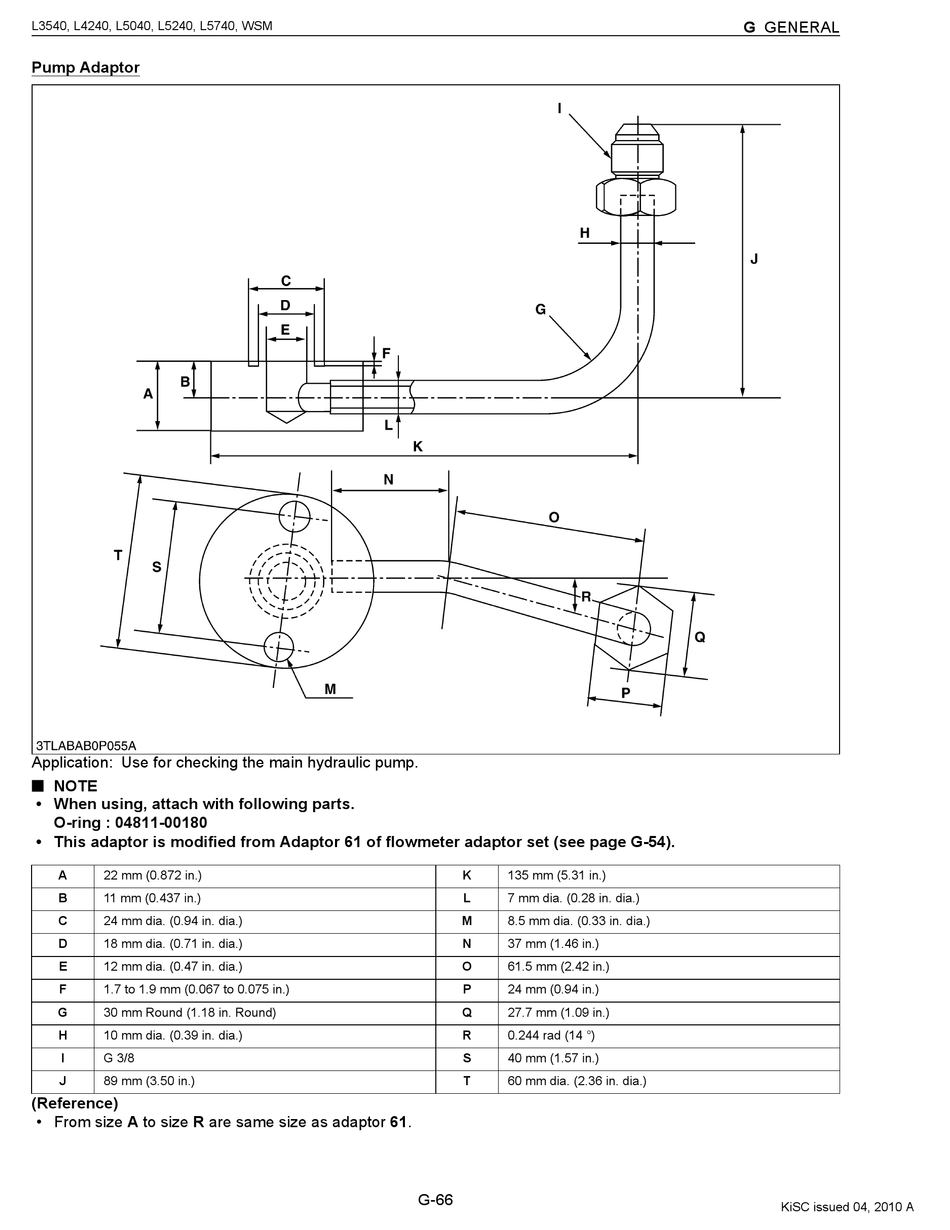

Pump Adaptor
Application: Use for checking the main hydraulic pump.
NOTE
• When using, attach with following parts.
O-ring : 04811-00180
• This adaptor is modified from Adaptor 61 of flowmeter adaptor set (see page G-54).
A 22 mm (0.872 in.)
B 11 mm (0.437 in.)
C 24 mm dia. (0.94 in. dia.)
D 18 mm dia. (0.71 in. dia.)
E 12 mm dia. (0.47 in. dia.)
F 1.7 to 1.9 mm (0.067 to 0.075 in.)
G 30 mm Round (1.18 in. Round)
H 10 mm dia. (0.39 in. dia.)
I G 3/8
J 89 mm (3.50 in.)
(Reference)
• From size A to size R are same size as adaptor 61.
K 135 mm (5.31 in.)
L 7 mm dia. (0.28 in. dia.)
M 8.5 mm dia. (0.33 in. dia.)
N 37 mm (1.46 in.)
O 61.5 mm (2.42 in.)
P 24 mm (0.94 in.)
Q 27.7 mm (1.09 in.)
R 0.244 rad (14 °)
S 40 mm (1.57 in.)
T 60 mm dia. (2.36 in. dia.)
G-66
G GENERAL
KiSC issued 04, 2010 A
