Kubota L3540 Workshop Manual page 84

L3540, L4240, L5040, L5240, L5740, WSM

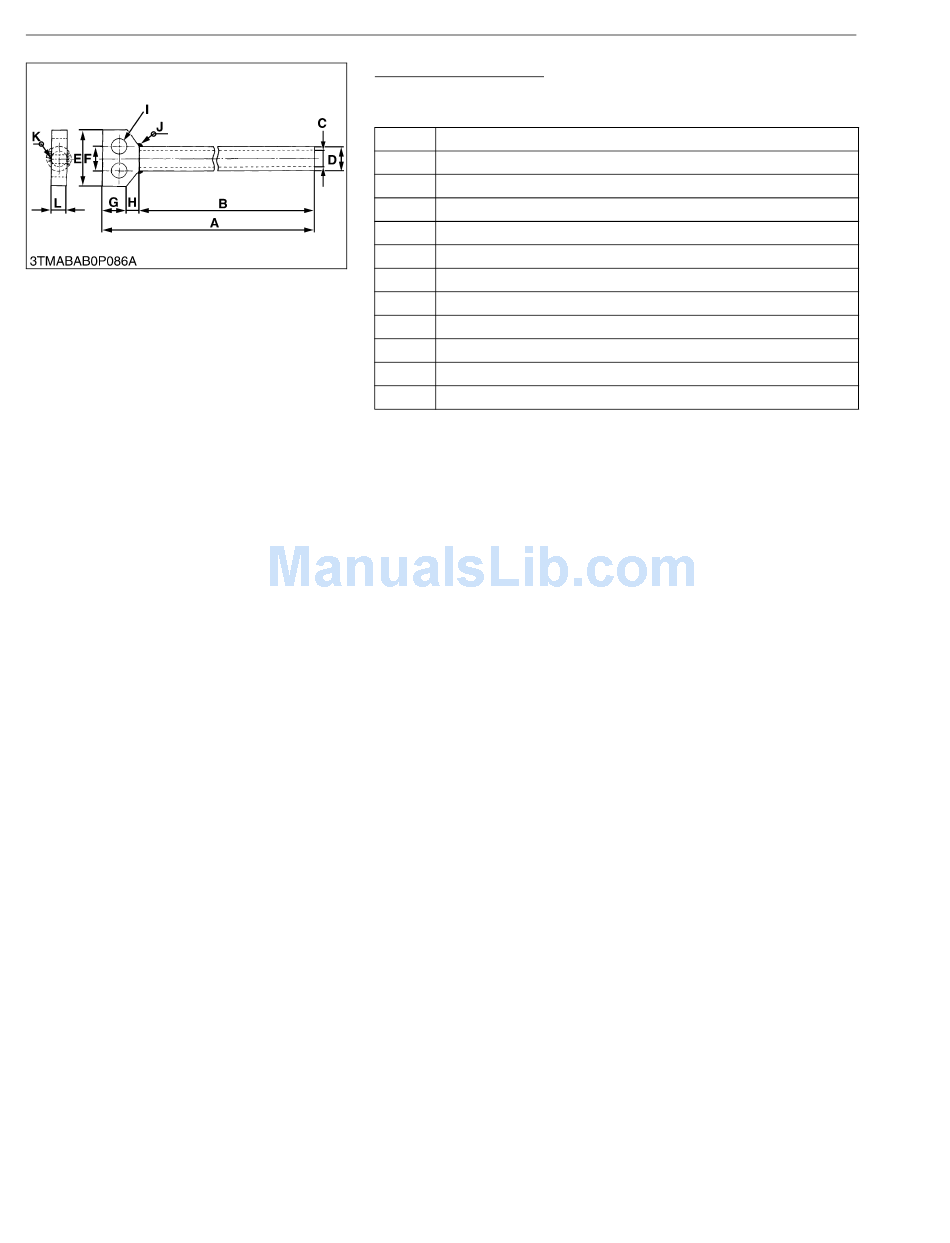

Draft Control Test Bar
Application: Use for checking the lift range and floating range of
hydraulic draft control.
A 1045 mm (41.14 in.)
B 1000 mm (29.37 in.)
C 20 mm dia. (0.79 in. dia.)
D 30 mm dia. (1.18 in. dia.)
E 90 mm (3.54 in.)
F 30 mm (1.18 in.)
G 30 mm (1.18 in.)
H 15 mm (0.59 in.)
I 20 mm dia. (0.79 in. dia.)
J Weld all around
K Weld all around
L 20 mm (0.79 in.)
G-62
G GENERAL
W10625190
KiSC issued 04, 2010 A
