Kubota L3540 Workshop Manual page 83

L3540, L4240, L5040, L5240, L5740, WSM

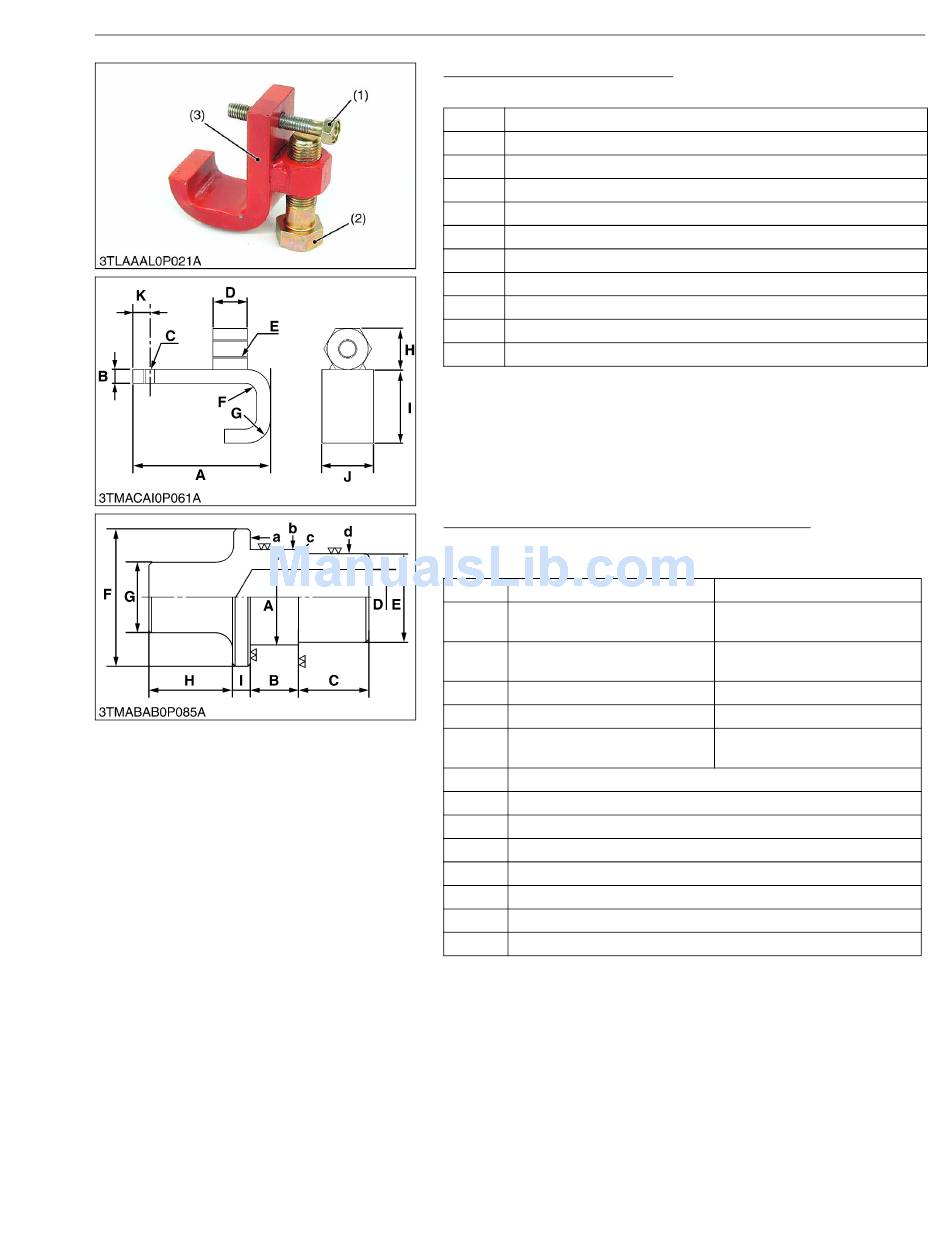

Front Axle Rocking Restrictor
Application: Use for lock the rolling of the front axle.
A 70 mm (2.8 in.)
B 11 mm (0.43 in)
C M8 x P1.25
D 18 mm (0.71 in.)
E M14 x P1.5
F R5 mm (R0.2 in.)
G R15 mm (R0.59 in.)
H 22 mm (0.87 in.)
I 67 mm (2.6 in.)
J 31 mm (1.2 in.)
K 10 mm (0.39 in.)
(1) Screw M8 x P1.25 x L50 mm (2 in.)
(2) Screw M14 x P1.5 x L50 mm (2 in.)
Hydraulic Arm Shaft Bushing Press-Fitting Tool
Application: Use for replacing the hydraulic arm shaft bushings in
the hydraulic cylinder body.
Right
54.7 to 54.9 mm
A
(2.1535 to 2.1614 in.)
24.5 to 25.5 mm
B
(0.9646 to 1.0039 in.)
C 40 mm (1.57 in.)
D 32 mm (1.26 in.)
49.7 to 49.9 mm
E
(1.9567 to 1.9646 in.)
F 70 mm dia. (2.76 in. dia.)
G 40 mm dia. (1.57 in. dia.)
H 50 mm (1.97 in.)
I 10 mm (0.39 in.)
6.3 μm (250 μin.)
a
6.3 μm (250 μin.)
b
6.3 μm (250 μin.)
c
6.3 μm (250 μin.)
d
G-61
G GENERAL
(3) Rocking Restrictor
W10410410
Left
49.7 to 49.9 mm
(1.9567 to 1.9646 in.)
21.5 to 22.5 mm
(0.8465 to 0.8858 in.)
40 mm (1.57 in.)
30 mm (1.18 in.)
44.7 to 44.9 mm
(1.7598 to 1.7677 in.)
W10316550
KiSC issued 04, 2010 A
