L3540, L4240, L5040, L5240, L5740, WSM
NOTE
• The following special tools are not provided, so make them referring to the figure.

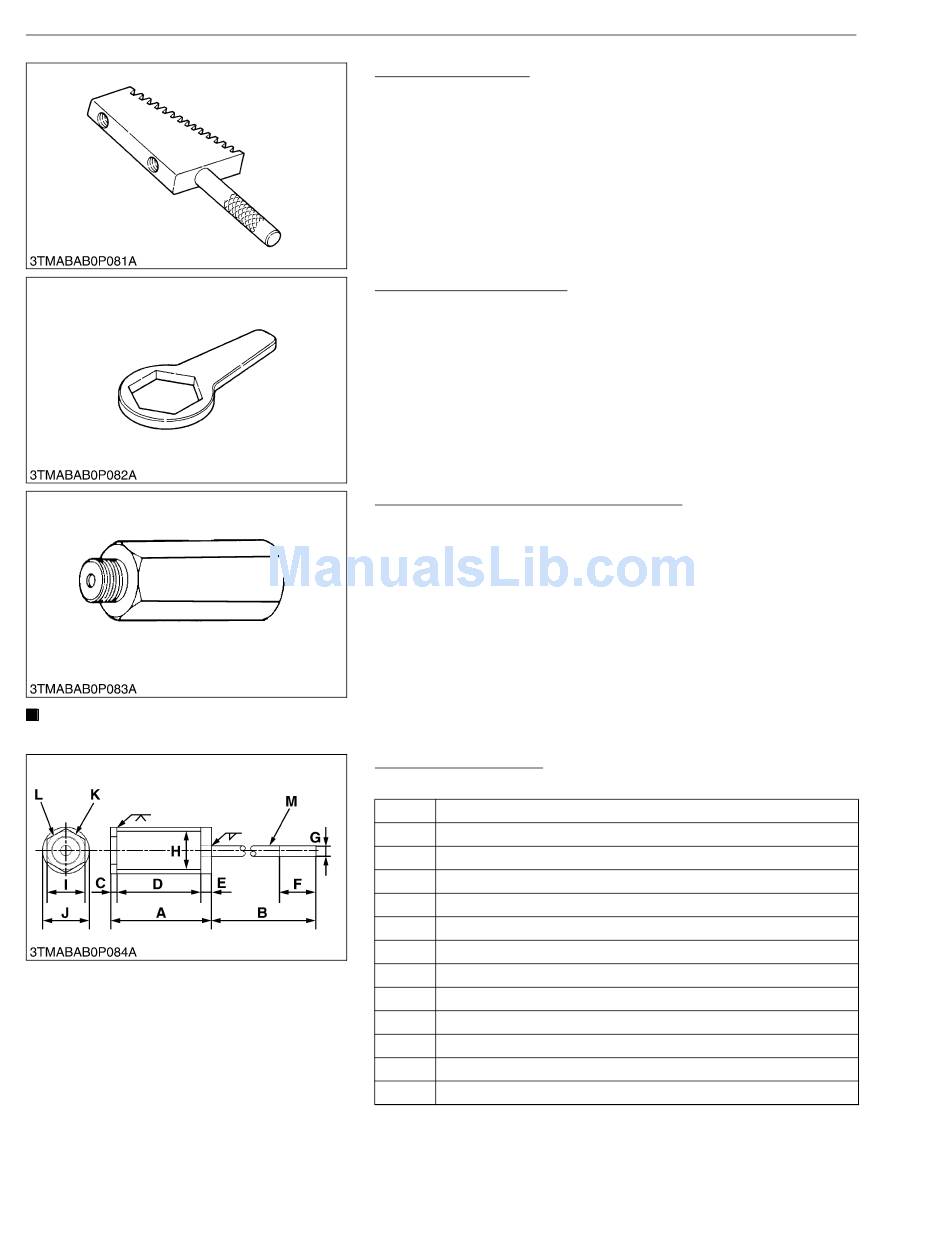

Pinion Locking Tool
Code No.: 07916-52311
Application: Use for preventing the shaft from turning when
removing or tighten a bevel pinion shaft staking nut.
Rear Axle Nut Wrench 71
Code No.: 07916-52531
Application: Use for removing and installing a rear axle nut.
Relief Valve Setting Pressure Adaptor G
Code No.: 07916-52751
Application: This offers easy measurement of relief valve setting
pressure from the hydraulic coupler. This is available
with the relief valve setting pressure tester.
Pinion Shaft Remover
Application: Use for removing a pinion shaft.
A 106 mm (4.17 in.)
B 350 mm (13.78 in.)
C 6 mm (0.24 in.)
D 90 mm (3.54 in.)
E 10 mm (0.39 in.)
F 40 mm (1.57 in.)
G 10 mm (0.39 in.)
H 35.6 mm (1.40 in.)
I 36 mm (1.42 in.)
J 41.6 mm (1.64 in.)
K Part code No. 3A201-4130 nut
M27 × P1.5
L
M10 × P1.25
M
G-60
G GENERAL
W10445520
W10446460
W10623960
W10315930
KiSC issued 04, 2010 A
