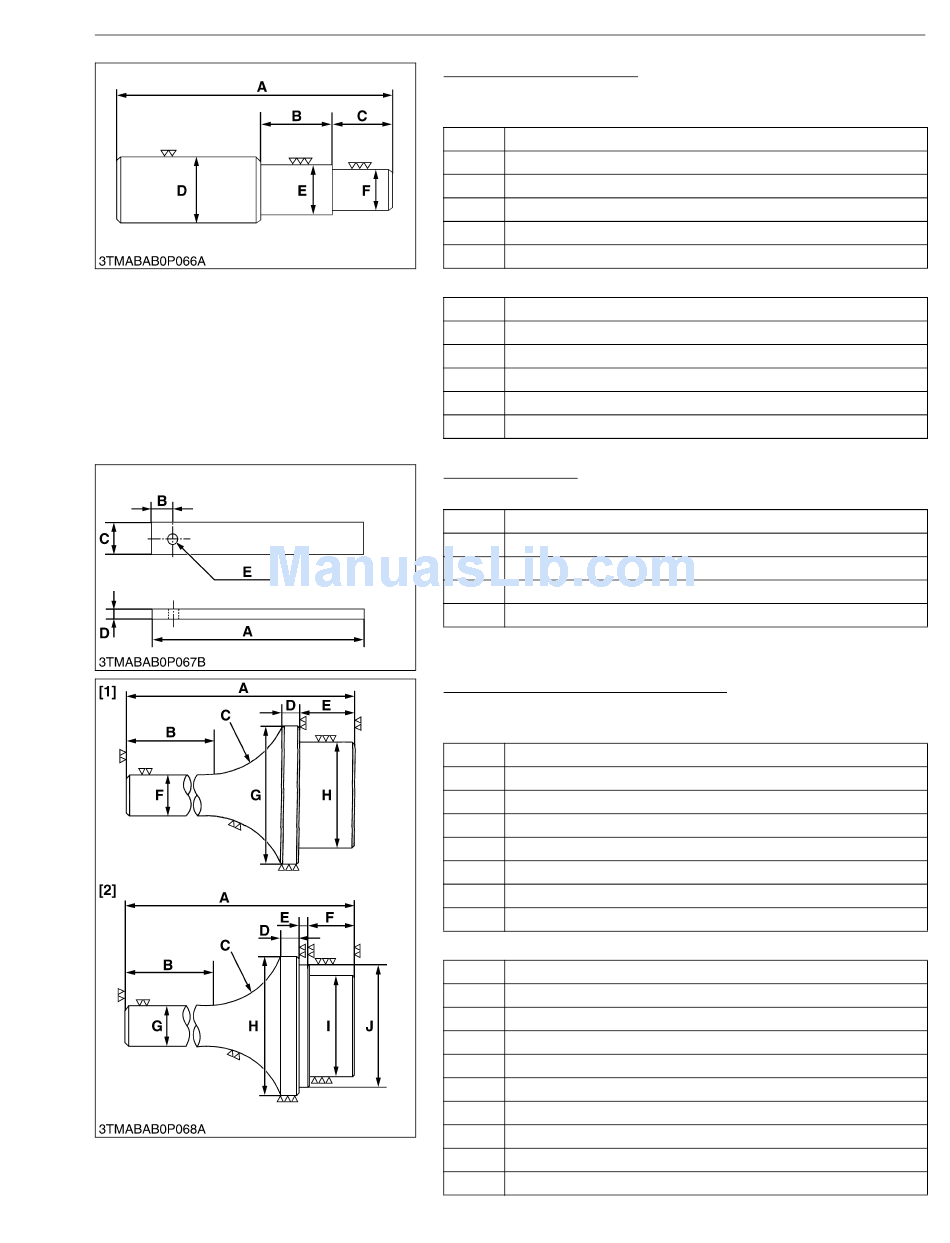

Bushing Replacing Tools
Application: Use to press out and to press fit the bushing.
(1) For small end bushing
A 162 mm (6.38 in.)
B 35 mm (1.38 in.)
C 27 mm (1.06 in.)
D 35 mm dia. (1.38 in. dia.)
E 27.90 to 27.95 mm dia. (1.098 to 1.100 in. dia.)
F 25.00 to 25.01 mm dia. (0.984 to 0.985 in. dia.)
(2) For idle gear bushing
A 175 mm (6.89 in.)
B 40 mm (1.57 in.)
C 38 mm (1.49 in.)
D 45 mm dia. (1.77 in. dia.)
E 41.90 to 41.95 mm dia. (1.650 to 1.652 in. dia.)
F 37.95 to 37.97 mm dia. (1.494 to 1.495 in. dia.)
Flywheel Stopper
Application: Use to loosen and tighten the flywheel screw.
A 200 mm (7.87 in.)
B 20 mm (0.79 in.)
C 30 mm (1.18 in.)
D 8 mm (0.31 in.)
E 10 mm dia. (0.39 in. dia.)
Crankshaft Bearing 1 Replacing Tool
Application: Use to press out and press fit the crankshaft bearing 1.
1. Extracting tool
A 135 mm (5.31 in.)
B 72 mm (2.83 in.)
C 40 mm radius (1.57 in. radius)
D 10 mm (0.39 in.)
E 20 mm (0.79 in.)
F 20 mm dia. (0.79 in. dia.)
G 64.8 to 64.9 mm dia. (2.551 to 2.555 in. dia.)
H 59.8 to 59.9 mm dia. (2.354 to 2.358 in. dia.)
2. Inserting tool
A 130 mm (5.12 in.)
B 72 mm (2.83 in.)
C 40 mm radius (1.57 in. radius)
D 9 mm (0.35 in.)
E 4 mm (0.16 in.)
F 20 mm (0.79 in.)
G 20 mm dia. (0.79 in. dia.)
H 68 mm dia. (2.68 in. dia.)
I 59.8 to 59.9 mm dia. (2.354 to 2.358 in. dia.)
J 64.8 to 64.9 mm dia. (2.551 to 2.555 in. dia.)
