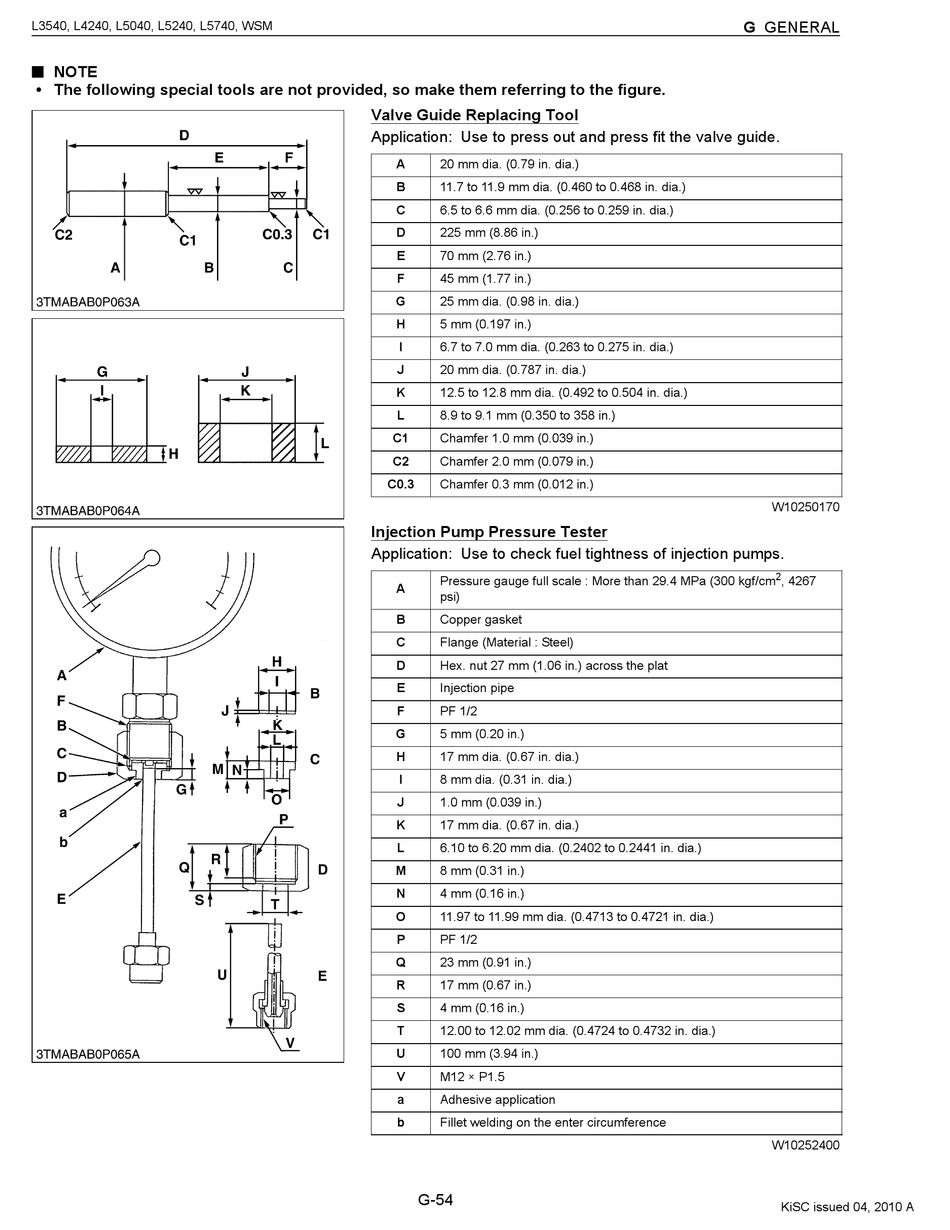

Kubota L3540 Workshop Manual page 76

L3540, L4240, L5040, L5240, L5740, WSM
NOTE
• The following special tools are not provided, so make them referring to the figure.
Valve Guide Replacing Tool
Application: Use to press out and press fit the valve guide.
A 20 mm dia. (0.79 in. dia.)
B 11.7 to 11.9 mm dia. (0.460 to 0.468 in. dia.)
C 6.5 to 6.6 mm dia. (0.256 to 0.259 in. dia.)
D 225 mm (8.86 in.)
E 70 mm (2.76 in.)
F 45 mm (1.77 in.)
G 25 mm dia. (0.98 in. dia.)
H 5 mm (0.197 in.)
I 6.7 to 7.0 mm dia. (0.263 to 0.275 in. dia.)
J 20 mm dia. (0.787 in. dia.)
K 12.5 to 12.8 mm dia. (0.492 to 0.504 in. dia.)
L 8.9 to 9.1 mm (0.350 to 358 in.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
C0.3 Chamfer 0.3 mm (0.012 in.)
Injection Pump Pressure Tester
Application: Use to check fuel tightness of injection pumps.
Pressure gauge full scale : More than 29.4 MPa (300 kgf/cm
A
psi)
B Copper gasket
C Flange (Material : Steel)
D Hex. nut 27 mm (1.06 in.) across the plat
E Injection pipe
F PF 1/2
G 5 mm (0.20 in.)
H 17 mm dia. (0.67 in. dia.)
I 8 mm dia. (0.31 in. dia.)
J 1.0 mm (0.039 in.)
K 17 mm dia. (0.67 in. dia.)
L 6.10 to 6.20 mm dia. (0.2402 to 0.2441 in. dia.)
M 8 mm (0.31 in.)
N 4 mm (0.16 in.)
O 11.97 to 11.99 mm dia. (0.4713 to 0.4721 in. dia.)
P PF 1/2
Q 23 mm (0.91 in.)
R 17 mm (0.67 in.)
S 4 mm (0.16 in.)
T 12.00 to 12.02 mm dia. (0.4724 to 0.4732 in. dia.)
U 100 mm (3.94 in.)
V M12 × P1.5
a Adhesive application
b Fillet welding on the enter circumference
G-54
G GENERAL
W10250170
2
, 4267
W10252400
KiSC issued 04, 2010 A
