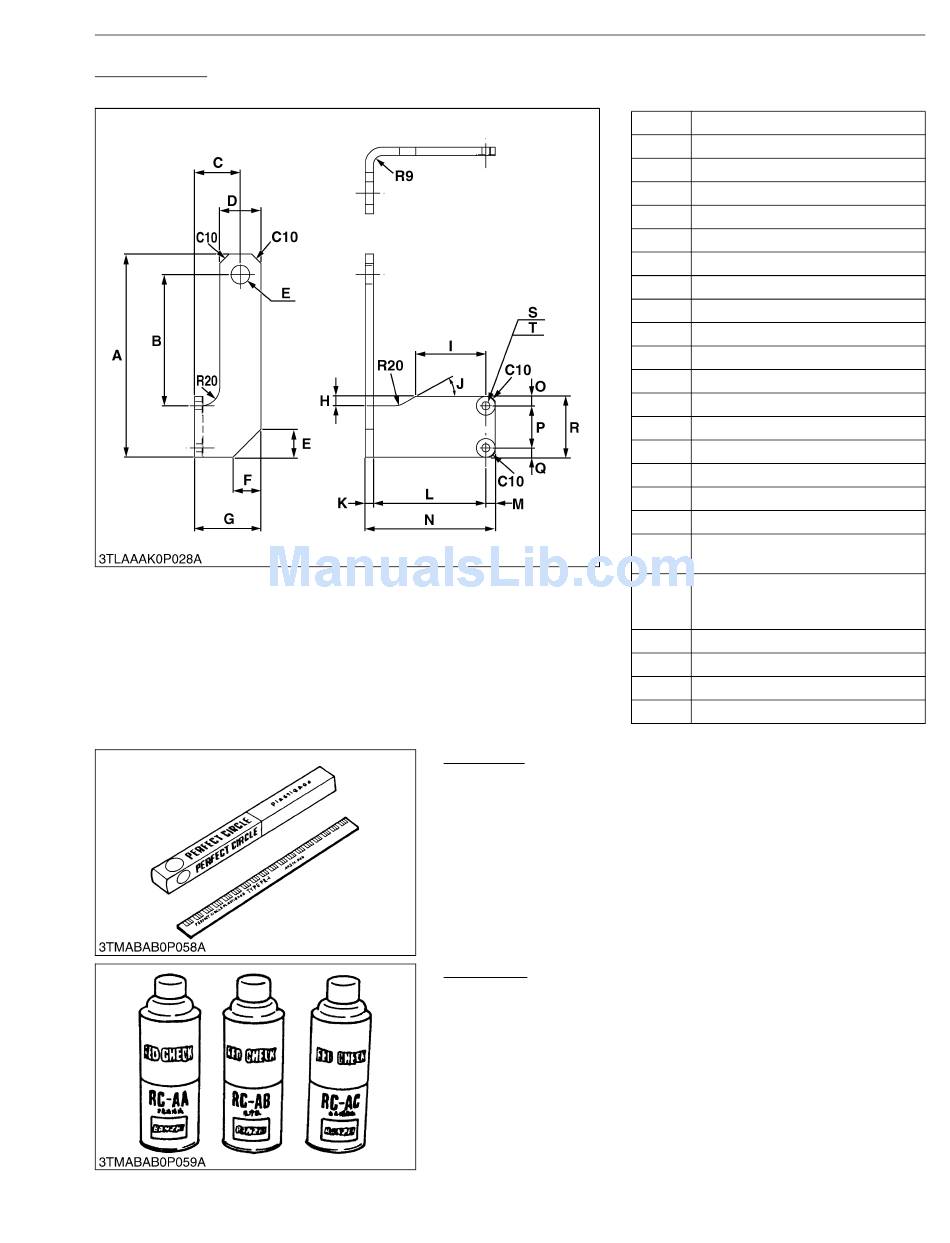

Engine Hook 2
Application: Use to fix the engine when hooking, instead of the original hook with hook 1 as a set.
Plastigage
Code No.: 07909-30241
Application: Use to check the oil clearance between crankshaft and
bearing, etc.
Measuring: Green .... 0.025 to 0.076 mm (0.001 to 0.003 in.)
range Red ....... 0.051 to 0.152 mm (0.002 to 0.006 in.)
Blue ....... 0.102 to 0.229 mm (0.004 to 0.009 in.)
Red Check
Code No.: 07909-31371
Application: Use to check cracks on cylinder head, cylinder block,
etc..
G-51
G GENERAL
A 217 mm (8.54 in.)
B 140 mm (5.51 in.)
C 49 mm (1.9 in.)
D 44 mm (1.7 in.)
E 20 mm Hole (0.79 in. Hole)
F 30 mm (1.2 in.)
G 71 mm (2.8 in.)
H 10 mm (0.39 in.)
I 85 mm (3.3 in.)
°
J 0.52 rad (30
)
K 9.0 mm (0.35 in.)
L 120 mm (4.72 in.)
M 10 mm (0.39 in.)
N 139 mm (5.12 in.)
O 10 mm (0.39 in.)
P 44.7 to 45.3 mm (1.76 to 1.78 in.)
Q 10 mm (0.39 in.)
R 65 mm (2.6 in.)
2 × 8.50 to 8.80 mm Drilled hole
S
(
2 × 0.335 to 0.346 in. Drilled hole)
20 mm Spot-faced hole 1 mm deep
T (0.79 in. Spot-faced hole 0.04 in.
deep)
C10 Chamfer 10 mm (0.39 in.)
R9 Radius 9.0 mm (0.35 in.)
R10 Radius 10 mm (0.39 in.)
R20 Radius 20 mm (0.79 in.)
