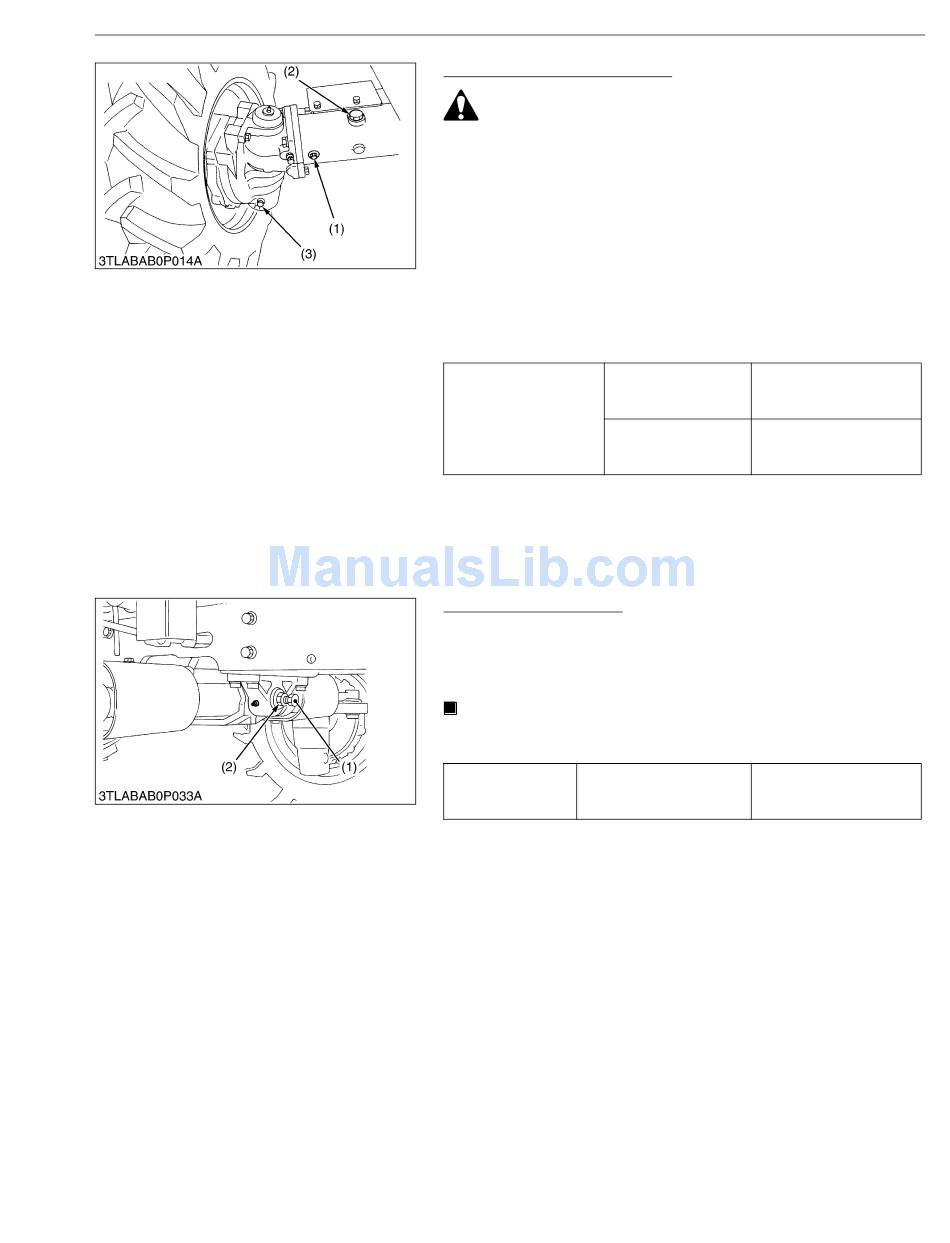

[7] CHECK POINT OF EVERY 600 HOURS

Changing Front Axle Case Oil
CAUTION
• Be sure to stop the engine before changing the front axle
case oil.
• Allow engine to cool down sufficiently, oil can be hot and
can burn.
1. Remove the right and left drain plugs (3) and filling plug (2) at the
front axle case and drain the oil completely.
2. After draining, reinstall the drain plugs (3).
3. Remove the right and left check plugs (1).
4. Fill new oil from filling port with specified amount of oil.
Refer to "LUBRICANTS, FUEL AND COOLANT". (See page
G-9.)
5. Reinstall the filling plug (2) and check plug (1).
L3540
L4240
Front axle case oil
capacity
L5040
L5240
L5740
(1) Check Plug
(2) Filling Plug
Adjust Front Axle Pivot
1. Loosen the lock nut (2), tighten the adjusting screw (1) until
seated, then tighten the adjusting screw (1) with an additional 1/
6 turn.
2. Retighten the lock nut (2).
NOTE
• If the axle pivot pin adjustment is not correct, front wheel
vibration can occur causing vibration in the steering wheel.
Tightening torque Lock nut
(1) Adjusting Screw
G-39
G GENERAL
6.5 L
6.9 U.S.qts
5.7 Imp.qts
6.0 L
6.3 U.S.qts
5.3 Imp.qts
(3) Drain Plug
W10300640
59 to 98.0 N·m
6.0 to 10.0 kgf·m
44 to 72.3 lbf·ft
(2) Lock Nut
W1036668
