Kubota L3540 Workshop Manual page 58

L3540, L4240, L5040, L5240, L5740, WSM

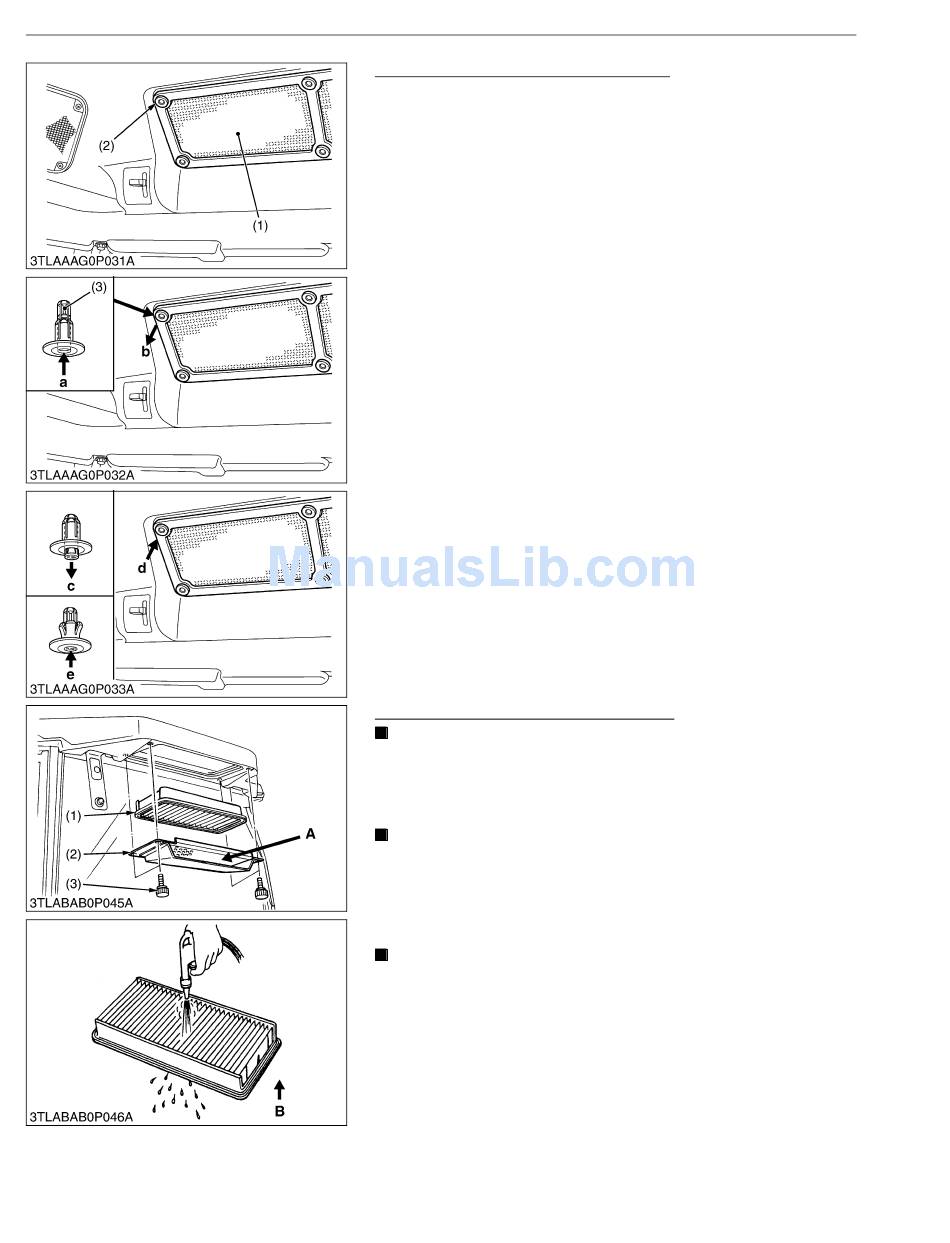

Cleaning Inner Air Filter (Cabin Model)
1. Remove the inner filter, and blow air from the direction opposite
to the filter's normal air flow.
2. Pressure of compressed air must be under 205 kPa (2.1 kgf/cm
30 psi).
(Reference)
• Detach and attach the push-rivet (2) as follows.
- Detaching procedure (A)
Push in the center rivet (a) and pull out the push-rivet assembly
(b).
- Attaching procedure (B)
Pull out the center rivet (c), attach the push-rivet assembly (d)
and push up the center-rivet (e).
(1) Inner Air Filter
(2) Push-rivet
(3) Center-rivet
Cleaning Fresh Air Filter (Cabin Model)
Fresh Air Filter
1. Remove the knob bolts (3) and pull out the fresh air filter (1).
2. Blow air from the opposite direction to the filter's normal air flow.
Pressure of compressed air must be under 205 kPa (2.1 kgf/cm
30 psi).
NOTE
• If the filter is very dirty :
Dip the filter in lukewarm water with mild dish washing
detergent.
Move it up and down as well as left and right to loosen dirt.
Rinse the filter with clean water and let it air-dry.
IMPORTANT
• Do not use gasoline, thinner or similar chemicals to clean
the filter as damage to the filter may occur.
• If may also cause an unpleasant odor in the CABIN when the
system is used next.
• Do not hit the filter. If the filter becomes deformed, dust may
enter into the air-conditioner, which may cause damage and
malfunction.
(1) Fresh Air Filter
(2) Cover
(3) Knob Bolt
G-36
G GENERAL
a : Push in center-rivet
b : Pull out push-rivet assembly
c : Pull out center-rivet
d : Attach push-rivet assembly
e : Push up center-rivet
W1118812
A : Air Inlet Port
B : Air Conditioner Air Flow
W1019336
KiSC issued 04, 2010 A
