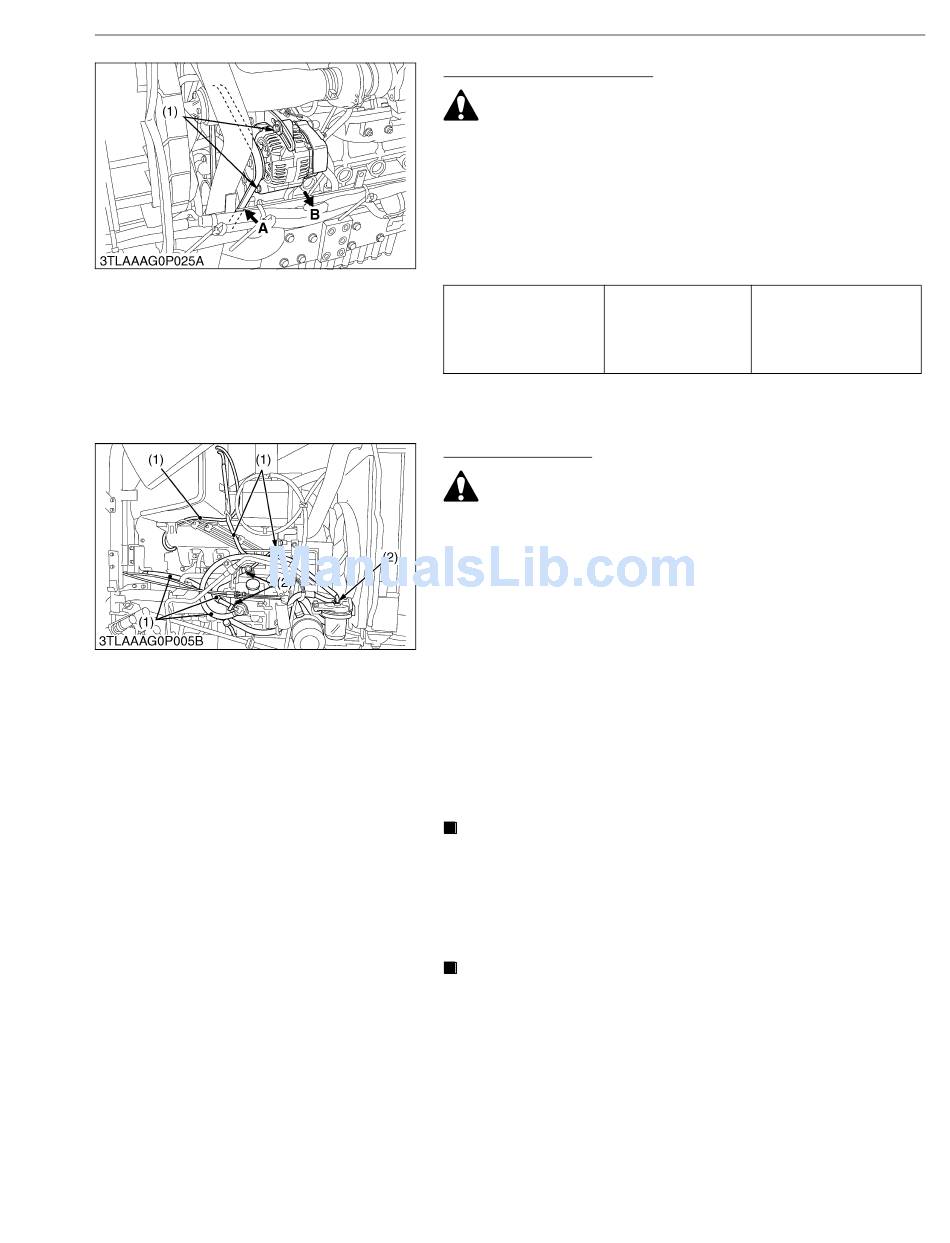

Adjusting Fan Belt Tension
CAUTION
• Be sure to stop the engine before checking fan belt tension.
1. Stop the engine and remove the key.
2. Apply moderate thumb pressure to belt between pulleys.
3. If tension is incorrect, loosen the alternator mounting bolts and
using a lever placed between the alternator and the engine block,
pull the alternator out until the deflection of the belt falls within the
factory specifications.
4. Replace fan belt if it is damaged.
Fan belt tension Factory spec.
(1) Alternator Mounting Bolt
Checking Fuel Line
CAUTION
• Stop the engine when attempting the check and change
prescribed below.
• Remember to check the fuel line periodically. The fuel line
is subject to wear and aging, fuel may leak out onto the
running engine, causing a fire.
1. Check to see that all line and hose clamp are tight and not
damaged.
2. If hoses and clamps are found worn or damaged, replace or
repair them at once.
3. The fuel line is made of rubber and ages regardless of period of
service. Replace the fuel pipe together with the clamp every two
years and securely tighten.
4. However if the fuel pipe and clamp are found damaged or
deteriorated earlier than two years, then change or remedy.
5. After the fuel line and clamp have been changed, bleed the fuel
system.
IMPORTANT
• When the fuel line is disconnected for change, close both
ends of the fuel line with a piece of clean cloth or paper to
prevent dust and dirt from entering. Entrance of dust and
dirt causes malfunction of the fuel injection pump.
addition, particular care must be taken not to admit dust and
dirt into the fuel pump.
NOTE
• If the fuel line is removed, be sure to properly bleed the fuel
system. (See page G-44.)
(1) Fuel Hose
G-29
G GENERAL
A deflection of between
7.0 to 9.0 mm (0.28 to
0.35 in.) when the belt is
pressed in the middle of
the span.
A : Check the belt tension
B : To Tighten
W10326270
(2) Clamp
W10342570
