Kubota L3540 Workshop Manual page 42

L3540, L4240, L5040, L5240, L5740, WSM
Checking Seat Belt and ROPS
1. Always check condition of seat belt and ROPS attaching
hardware before operating tractor.
2. Replace if damaged.

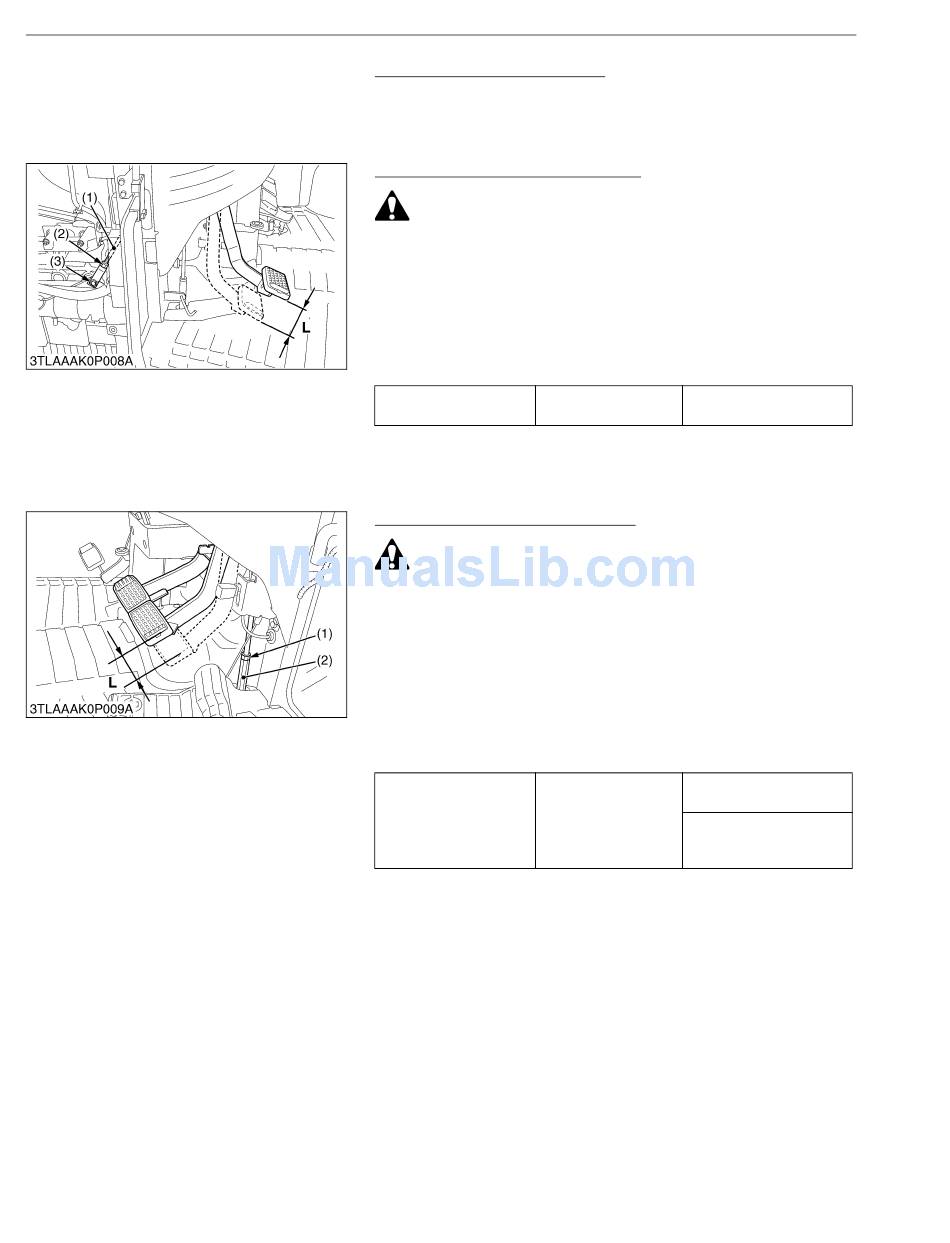

Checking Clutch Pedal Free Travel
CAUTION
• When checking, park the tractor on flat ground, apply the
parking brake, stop the engine and remove the key.
1. Slightly depress the clutch pedal and measure free travel "L" at
top of clutch pedal.
2. If the measurement is not within the factory specifications, loosen
the lock nut (2), remove the clevis pin (3) adjust the length of rod
(1) within acceptable limits.
3. Retighten the lock nut (2) and split the cotter pin.
Clutch pedal free travel
Factory spec.
"L"
(1) Clutch pedal Rod
(2) Lock Nut
(3) Clevis Pin
Checking Brake Pedal Free Travel
CAUTION
• Stop the engine and chock the wheels before checking
brake pedal.
1. Release the parking brake.
2. Slightly depress the brake pedals and measure free travel (L) at
top of pedal stroke.
3. If the measurement is not within the factory specifications, loosen
the lock nut (1) and turn the turnbuckle (2) to adjust the rod length
within acceptable limits.
4. Retighten the lock nut (1) securely.
Keep the free travel in the right and left brake pedals equal.
Brake pedal free travel
Factory spec.
"L"
(1) Lock Nut
(2) Turnbuckle
G-20
G GENERAL
W1035535
20 to 30 mm
0.78 to 1.18 in.
L : Free Travel
W1032993
15 to 20 mm
0.59 to 0.79 in.
Keep the free travel in the
right and left brake pedals
equal.
L : Free Travel
W10293350
KiSC issued 04, 2010 A
