Kubota L3540 Workshop Manual page 41

L3540, L4240, L5040, L5240, L5740, WSM

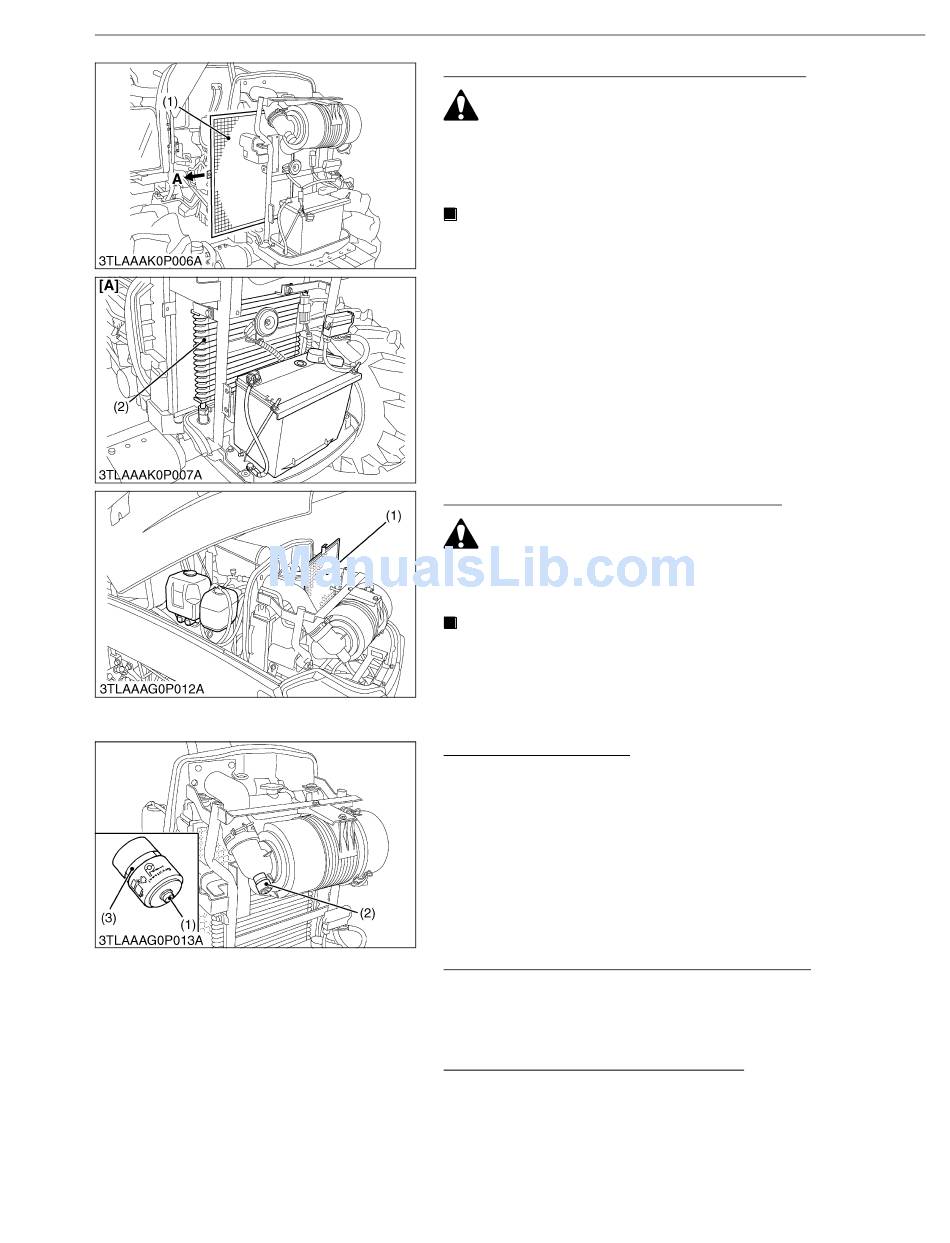

Cleaning Grille, Radiator Screen and Oil Cooler
CAUTION
• Be sure to stop the engine before removing the screen.
1. Check front grille and side screens to be sure they are clean of
debris.
2. Detach the screen and remove all foreign materials.
IMPORTANT
• Grille and screen must be clean from debris to prevent
engine from overheating and to allow good air intake for the
air cleaner.
(1) Radiator Screen
(2) Oil Cooler
Cleaning Air Conditioner Condenser Screen
CAUTION
• Be sure to stop the engine before removing the screen.
1. Detach the air conditioner condenser screen and remove all
foreign materials.
IMPORTANT
• Grille and screen must be clean from debris to prevent
engine from overheating and to allow good air intake for the
air cleaner.
(1) Air Conditioner Condenser Screen
Checking Dust Indicator
There is a dust indicator on the air cleaner body. If the red signal
on the dust indicator is visible, clean the element immediately (see
page G-28). Reset the red signal by pushing a "RESET" button
after cleaning.
(1) "RESET" Button
(2) Dust Indicator
Checking Gauges, Meter and Easy Checker(TM)
1. Inspect the instrument panel for broken gauge(s), meter(s) and
Easy Checker(TM) lamps.
2. Replace if broken.
Checking Head Light, Hazard Light etc.
1. Inspect the lights for broken bulbs and lenses.
2. Replace if broken.
G-19
G GENERAL
[A] HST Model
A : DETACH
W1034911
W1035250
(3) Red Signal
W1035421
W1035621
W1035684
KiSC issued 04, 2010 A
