Installation

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:
1. Disconnect all cables.
2. Place hands on each side of the monitor screen and raise it to
the maximun height (Figure R.1).

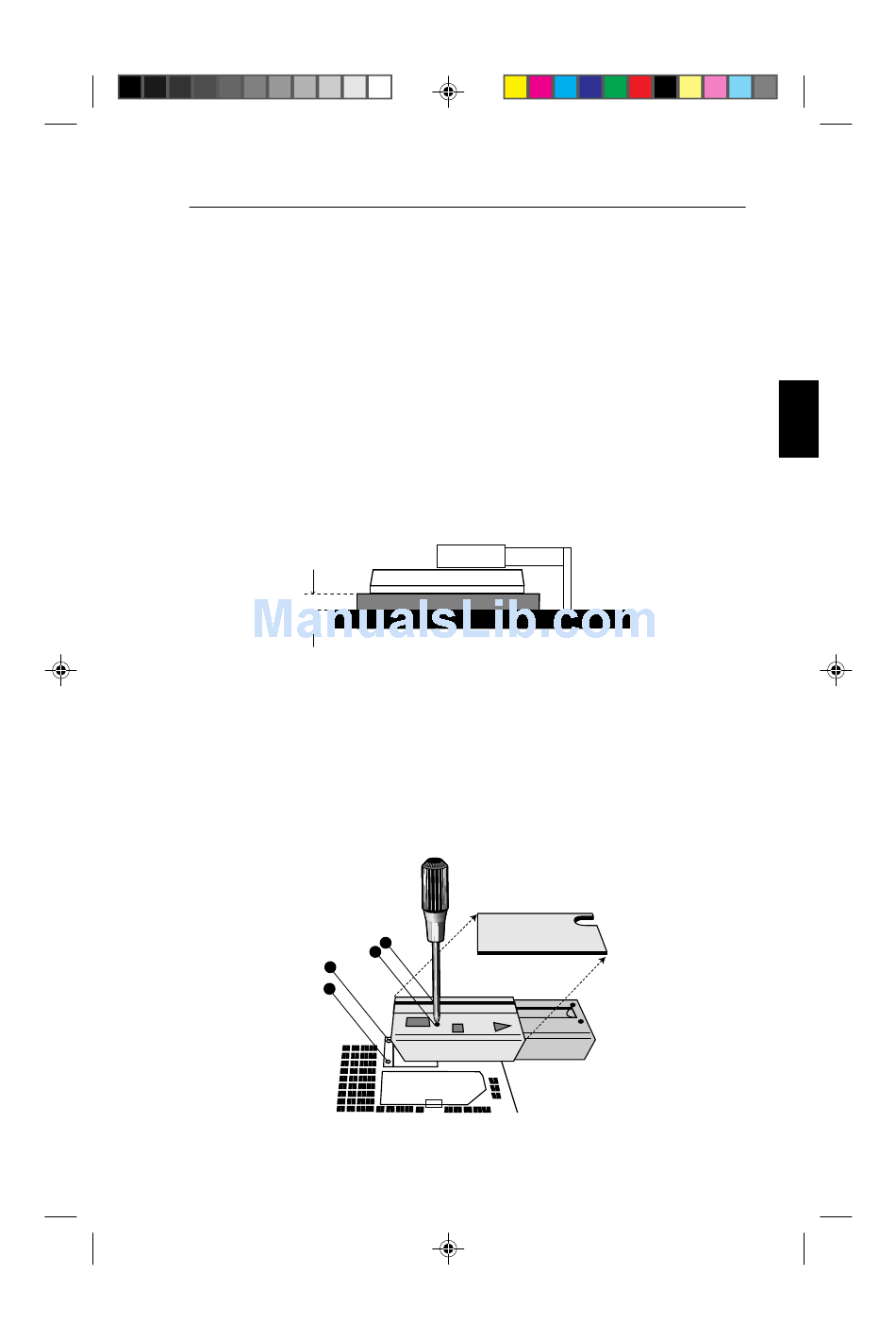

3. Place monitor face down on a non-abrasive surface (Place the
screen on a 40mm platform so that the stand is parallel with
the surface.) (Figure S.1).
4. Remove cable cover. Remove the 4 screws connecting the monitor
to the stand and lift off the stand assembly (Figure S.2).
The monitor is now ready for mounting in an alternate manner.
5. Reverse this process to reattach stand.
NOTE: Use only VESA-compatible alternative mounting method.
78133551/Fix.PM5
40mm
Figure S.1
4
3
2
1
Figure S.2
