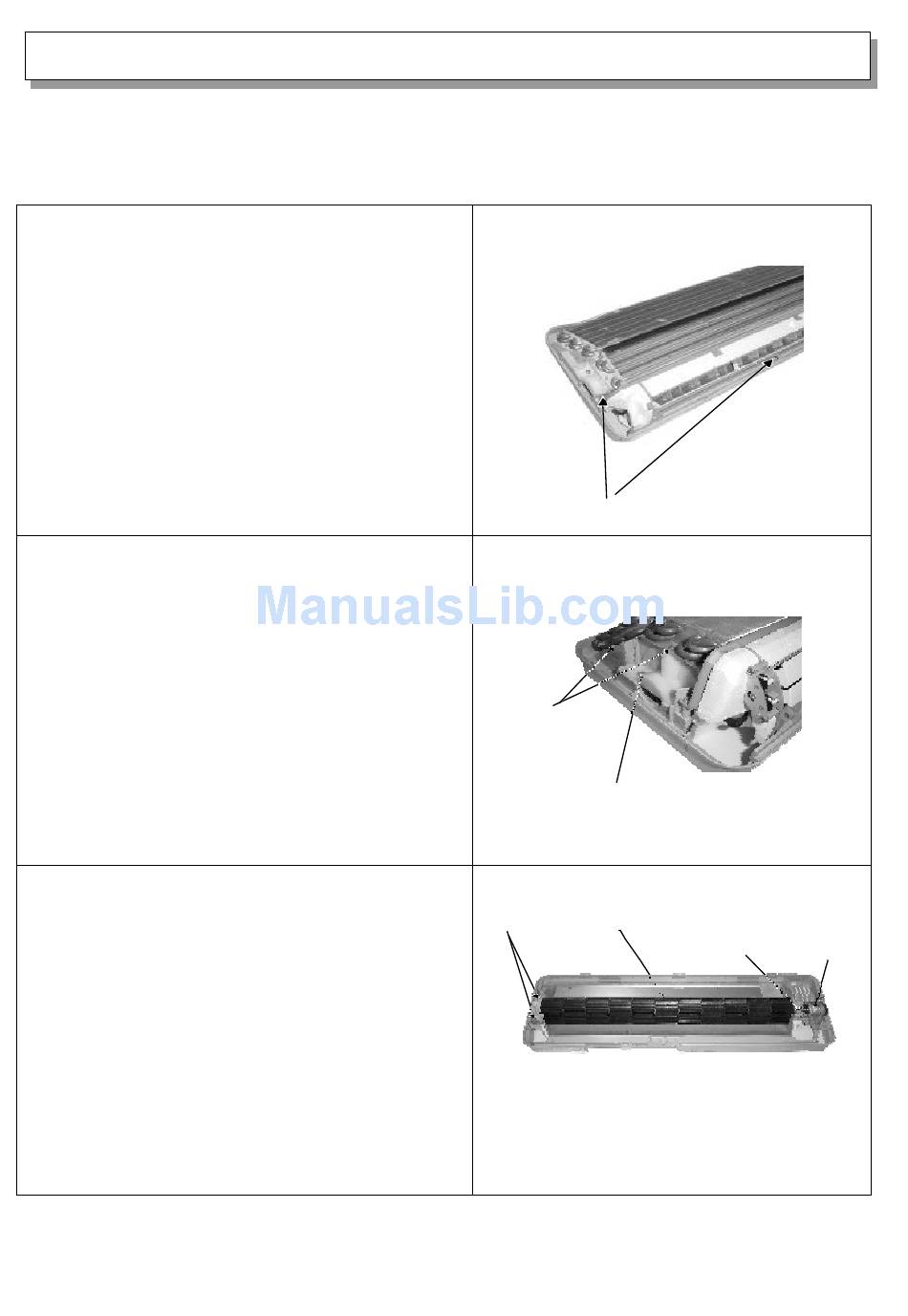

12. DISASSEMBLY INSTRUCTIONS
TGI-07H ,TGI-09H ,TGI-12H

4 Remove the air outlet

1. Take out the screws of the air outlet.
2. Remove the stepping motor.
3. Disconnect the drainage hose and the air outlet.
4. Remove the air outlet.
Screws

5 Remove the evaporator coil

1. Disconnect the evaporator coil and the other parts, Take out
the screws of the evaporator and remove the evaporator coil.
Screws
Screw

6 Remove the cross-flow fan and the fan motor

Cross-Flow Fan
Screws
1. Take out the screw between the cross-flow fan
Screw
and the fan motor.
Fan Motor
2. Remove the fan motor and the bearing ass'y.
3. Remove the cross-flow fan.
