ThermoCall TC4

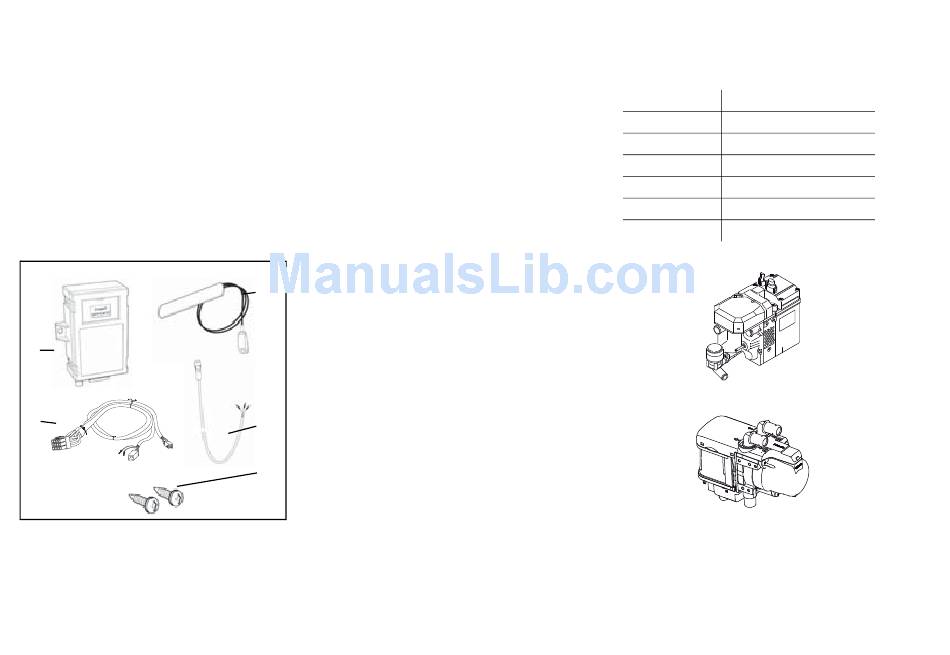

Scope of Delivery Advanced

0
1. GSM module ThermoCall TC4
2. Advanced wiring harness
3. GSM antenna
4. Button with indicator lamp
5. Self-tapping screws
and (not shown):
-Quick Start Guide
-CD with operating and installation in-
structions
1
2
2

Adapting wiring harness

The included wiring harness must be
adjusted with corresponding
"pinning into" the existing
installation situation (heater
selection).

ThermoCall TC4 Entry:

Strip the tied-back wires at the
heater connector, connect the
required wires as shown in the
illustrations 1 to 4 and illustration 5
and then insulate and tie back the
wire ends that are not required.
3

ThermoCall TC4 Advanced:

Strip the tied-back wires at both
connectors for the heater and
control element, connect the
required wires as shown in the
illustrations 1 to 4 and illustration 6
and then insulate and tie back the
wire ends that are not required.
4
5

Legend

To illustrations 1 to 6.
br brown
ge yellow
gr grey
rt red
sw black
vi violet
--- not in use
Thermo Top E/C
Thermo Top Evo
