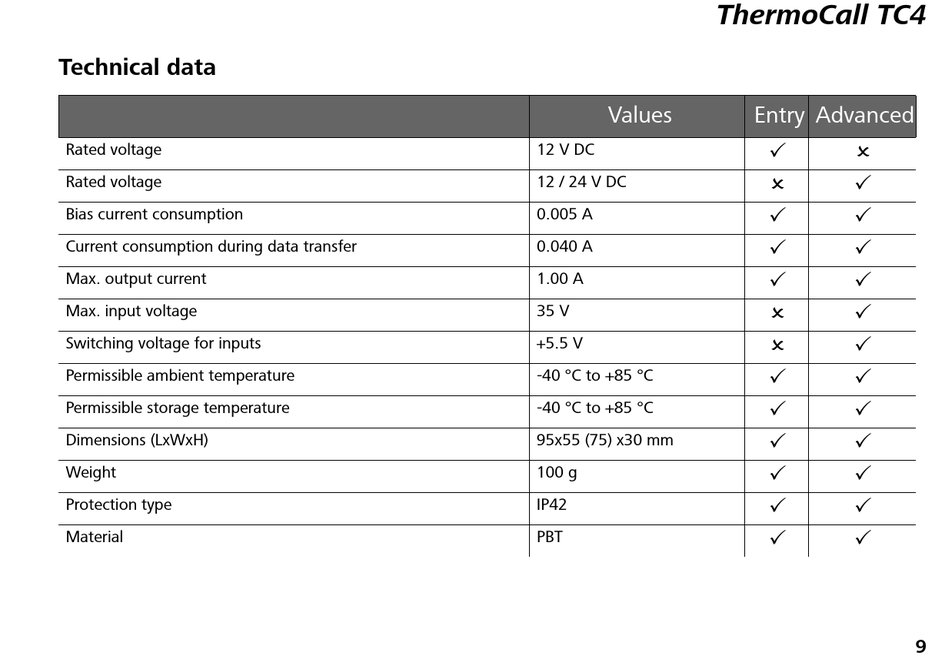

Technical data
Rated voltage
Rated voltage
Bias current consumption
Current consumption during data transfer
Max. output current
Max. input voltage
Switching voltage for inputs
Permissible ambient temperature
Permissible storage temperature
Dimensions (LxWxH)
Weight
Protection type
Material
Values
12 V DC
12 / 24 V DC
0.005 A
0.040 A
1.00 A
35 V
+5.5 V
-40 °C to +85 °C
-40 °C to +85 °C
95x55 (75) x30 mm
100 g
IP42
PBT
ThermoCall TC4
Entry Advanced
9
