Audio Adapter
The FLN2854A Audio Adapter connects an earpiece microphone or headset to
your r750plus phone for privacy and hands-free operation.
The Audio Adapter fits onto the bottom of the r750plus phone and provides a
standard 2.5mm jack connection for an earpiece microphone or headset.
The following audio accessories are compatible with the audio adapter:
•
Earpiece with Microphone (NTN8367)
•
Headset with Boom Microphone (NTN8513)
•
Lightweight Headset with Microphone (NTN8496)
•
Over-the-Ear Style Headset (NTN8497)
Release
Button
Using the Audio Adapter
1.
Hold the phone and the Audio Adapter facing you so that you see the
Motorola logo on the adapter.
2.
Insert the Audio Adapter's connector into the r750plus phone Bottom
Accessory Connector. You will hear the connector snap into place.
NOTE: When the audio adapter and earpiece or headset are connected, all
audio, including tones, will be routed to the audio accessory's earpiece.
Attaching/Detaching the Earpiece Microphone or Headset
1.
Insert the 2.5mm plug of the earpiece microphone or headset cord into the
jack of the Audio Adapter.
2.
Pull on the plug, not on the cord, to remove the earpiece
microphone.
62
Audio Adapter
Connector

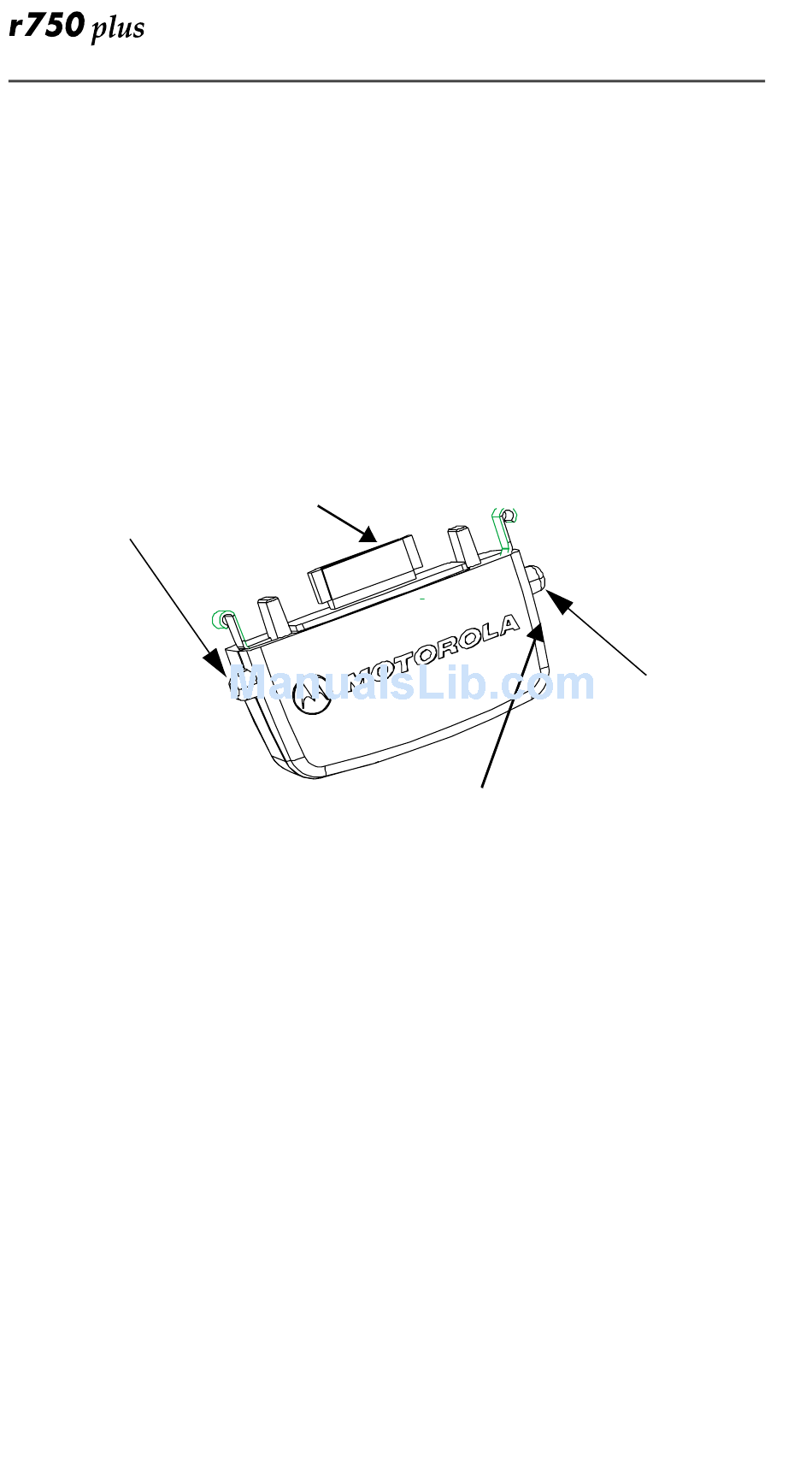

Figure 6. Using the Audio Adapter
www.mot.com/iDEN
Release
Button
2.5mm jack
