Desktop Dual-Pocket Charger
The NTN9036 Desktop Dual-Pocket Charger charges Motorola authorized
batteries, as listed on Page 56, for the r750plus phone.
Alignment rails
–
Front pocket
Charging a battery
1.
Plug the power supply DC jack into the receptacle in the back of the Desk-
top Dual-Pocket Charger.
2.
Plug the transformer end of the power-supply cord into any standard AC
wall outlet.
3.
Insert an r750plus phone with an attached battery, into the charger's front
pocket. To do this, align the slots on the sides of the battery with the rails
on the sides of the charger pocket. Make sure the metal contacts on the
back of the battery are in contact with the charger contacts.
4.
If the r750plus phone is properly seated in the front pocket, the charger's
front pocket LED indicator will light.
5.
The charger has the capability of displaying the battery's charge status. The
indicator will show the following: solid red=1- 30%; solid yellow=31 -
60%; flashing green=61 - 90%; solid green=91 - 100%.
NOTE: Charging times may vary when performing data operations.
Data Operation
1.
Insert the flat end of the iDEN Data Cable (FLN9581A) into the phone's
bottom Accessory connector.
2.
Connect the opposite end of the data cable to the PC.
LED indicators
Pin charge contacts
phone with Battery

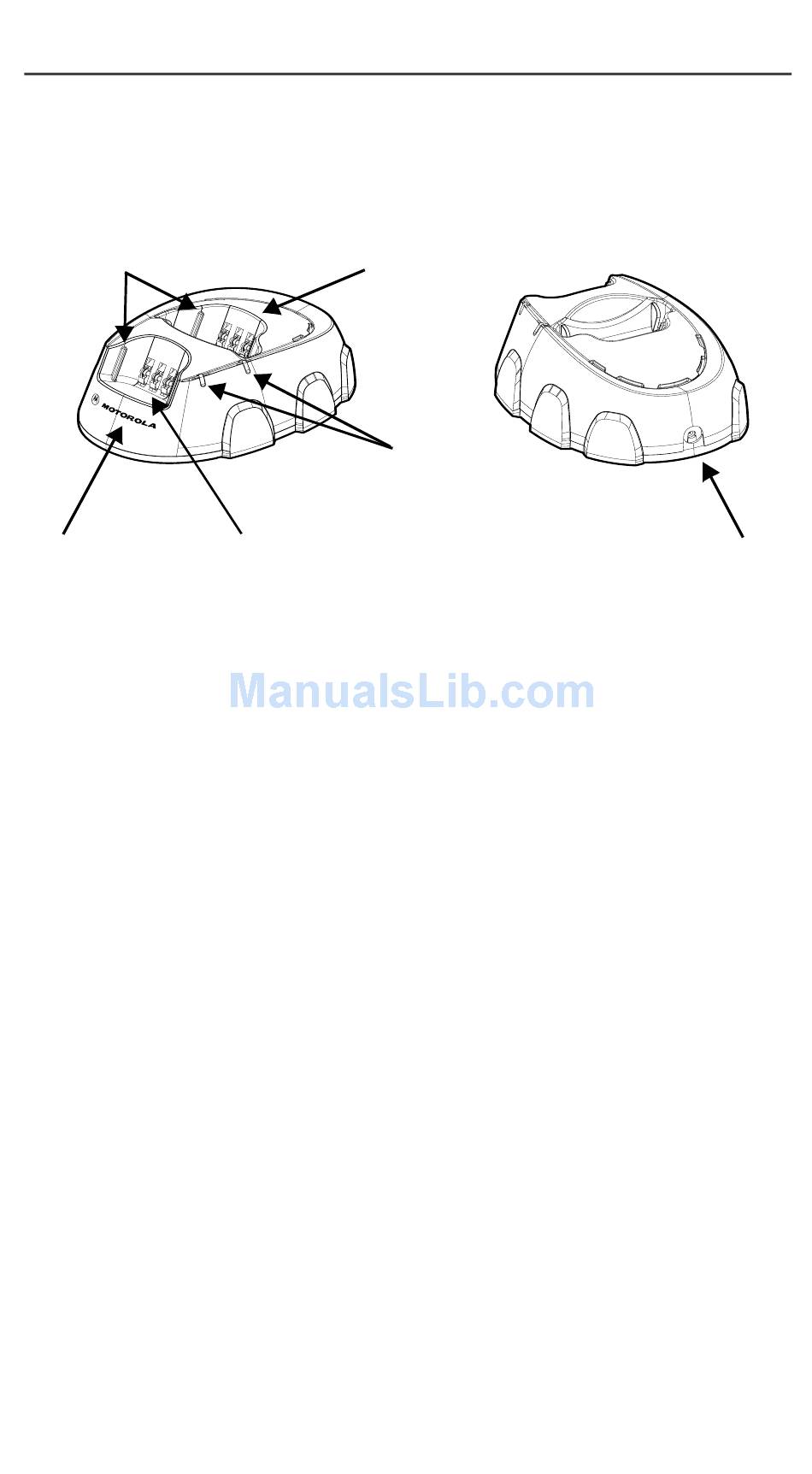

Figure 4. Desktop Dual-Pocket Charger
–
Rear pocket
Battery only
Power supply cord receptacle
Optional Accessories
(DC jack)
59
