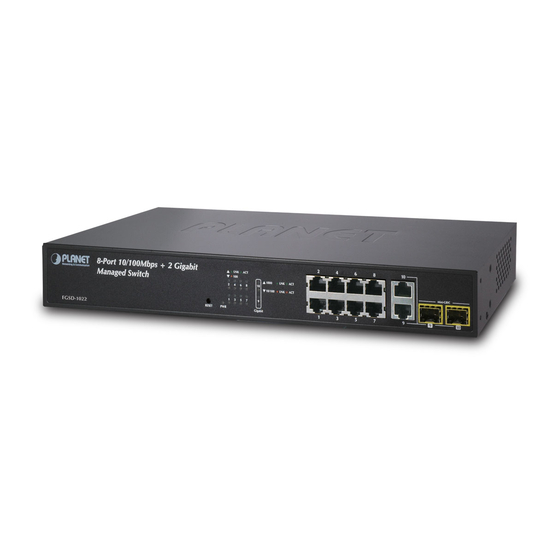

- Page 1 8-Port 10/100Mbps + 2- Gigabit TP/SFP Managed Switch FGSD-1022 / FGSD-1022P Quick Installation Guide...
-
Page 2: Table Of Contents
Table of Contents 1. Package Content ..................3 2. Requirements ....................4 3. Terminal Setup .................... 5 4. Logon to the Console ................... 6 5. Configure IP address ..................7 6. Start Web Management ................9 7. While IP Address be changed or forgotten admin password – ......11 8. -
Page 3: Package Content
1. Package Content Thank you for purchasing PLANET 8-Port Fast Ethernet + 2-Port Gigabit TP/SFP Combo Managed Switch, FGSD-1022 and FGSD-1022P. Terms of “Managed Switch” means the switches mentioned titled in the cover page of this Quick Installation Guide. Upon open the box of the Managed Switch and carefully unpack it. The box should contain the following items: ●... -
Page 4: Requirements
2. Requirements The Managed Switch provide remote Web interface for manage; the following equipments are necessary for further management. n Workstation installed with Ethernet NIC (Network Interface Card) n Workstations of subscribers running Windows 98/ME, NT4.0, 2000/XP, Vista, MAC OS9 or later, Linux, UNIX or other platform compatible with TCP/IP protocols. n Ethernet Port connect •... -
Page 5: Terminal Setup
3. Terminal Setup To configure the system, connect a serial cable to a COM port on a PC or notebook computer and to serial (console) port of the Managed. The console port of the Managed Switch is DCE already, so that you can connect the console port directly through PC without the need of Null Modem. -
Page 6: Logon To The Console
4. Logon to the Console Once the terminal has connected to the device, power on the Managed Switch, the terminal will display that it is running testing procedures. Then, the following message asks the login user name and password. The factory default password as following and the login screen in Figure 4-1 appears. -
Page 7: Configure Ip Address
5. Configure IP address The Managed Switch is shipped with default IP address as following. IP Address : 192.168.0.100 Subnet Mask : 255.255.255.0 To check the current IP address or modify a new IP address for the Switch, please use the procedures as follow: n Show the current IP address 1. - Page 8 The previous command would apply the follow settings for the Switch. IP: 192.168.1.100 Subnet Mask: 255.255.255.0 Gateway: 192.168.1.1 Figure 5-2 Set IP address screen 5. Repeat Step 1 to check if the IP address is changed. n Store current switch configuration 6.
-
Page 9: Start Web Management
6. Start Web Management The Managed Switch provides a built-in browser interface. You can manage it remotely by having a remote host with Web browser, such as Microsoft Internet Explorer, Netscape Navigator or Mozilla Firefox. Managed Switch PC / Workstation with IE Brower IP Adress:... - Page 10 3. After entering the user name and password, the Web main screen appears as Figure 6-3. Figure 6-3 Web Main Screen of FGSD-1022 series Managed Switch Now, you can use the Web management interface to continue the Managed Switch management, please refer to the user manual for more.
-
Page 11: While Ip Address Be Changed Or Forgotten Admin Password
7. While IP Address be changed or forgotten admin password – To reset the IP address to the default IP Address “192.168.0.100” and the user name / password to factory default mode (default user name and password are both admin). Press the hardware reset button at the front panel about 5 seconds. After the device is rebooted, you can login the management Web interface within the same subnet of 192.168.0.xx and default user name / password. -
Page 12: Customer Support
8. Customer Support Thank you for purchase PLANET products. You can browse our online FAQ resource at the PLANET Web site first to check if it could solve you issue. If you need more support information, please contact PLANET switch support team.
