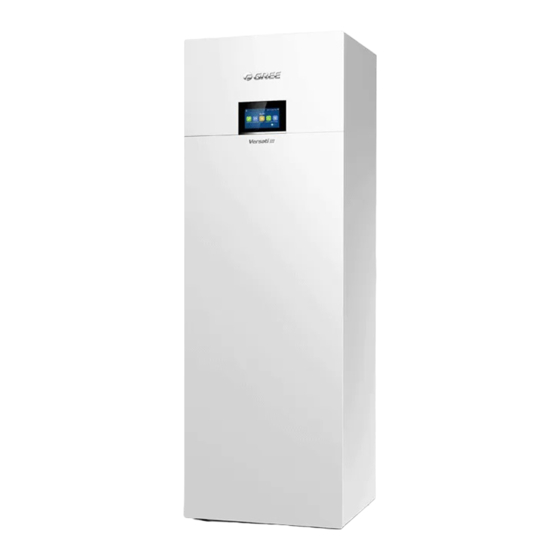

Do you have a question about the Versati IV GRS-CQ4.0PdG/NhH3-E and is the answer not in the manual?
Questions and answers
walter
May 27, 2025
Please give me information how to connet the cables.
There are many ways to connect, but what is the right connection.
1 comments:
Mr. Anderson
May 27, 2025
To connect the cables for the Gree GRS-CQ4.0PdG/NhH3-E:
1. Use power supply wire and earth wire with a minimum sectional area of 1.5 mm². 2. Ensure power cables are protected with rubber or plastic to prevent damage from metal edges. 3. Fix power cables securely near the electric cabinet to protect the power terminal from external force. 4. Ground the power cable reliably. 5. For 2-way valve wiring: - For a Normally Open valve: connect to wire (OFF) and wire (N). - For a Normally Closed valve: connect to wire (ON) and wire (N). - (OFF) and (ON) are line signals from the PCB; (N) is the neutral signal.
Power supply requirement: 400V, 3-phase, 50Hz. Use a 16A leakage switch.
This answer is automatically generated
walter
May 27, 2025
How do i find information which cable belongs to which socket ?
1 comments:
Mr. Anderson
May 27, 2025
To find information about which cable belongs to which socket for the Gree GRS-CQ4.0PdG/NhH3-E, refer to the electric wiring section of the manual. It includes wiring principles, signal types (e.g., ON, OFF, N for 3-way valve control), and cable specifications. Only qualified electricians should perform the wiring, and copper wires must be used. Power cables must be laid through proper channels and protected to prevent damage.
This answer is automatically generated
Subscribe to Our Youtube Channel
Related Manuals for Gree Versati IV GRS-CQ4.0PdG/NhH3-E
Summary of Contents for Gree Versati IV GRS-CQ4.0PdG/NhH3-E
Page 1
SPLIT TYPE Change for life Owner's Manual Original Instructions Air Conditioners Versati Air-to-water Split Heat Pump Models: GRS-CQ4.0PdG/NhH3-E GRS-CQ16PdG/NhH3-E1 GRS-CQ6.0PdG/NhH3-E GRS-CQ8.0PdG/NhH3-M GRS-CQ8.0PdG/NhH3-E GRS-CQ10PdG/NhH3-M GRS-CQ10PdG/NhH3-E GRS-CQ12PdG/NhH3-M GRS-CQ12PdG/NhH3-E GRS-CQ14PdG/NhH3-M GRS-CQ14PdG/NhH3-E GRS-CQ12PdG/NhH3-M1 GRS-CQ12PdG/NhH3-E1 GRS-CQ14PdG/NhH3-M1 GRS-CQ14PdG/NhH3-E1 GRS-CQ16PdG/NhH3-M1...
Page 2
To Users Thank you for selecting Gree’s product. Please read this instruction manual carefully before installing and using the product, so as to master and correctly use the product. In order to guide you to correctly install and use our...
Contents Safety Notices (Please be sure to abide ) ..............1 1. Product Data ......................7 1.1 Outline Dimensions ......................7 1.2 Operation Temperature Range ..................9 1.3 Sizes of Pipelines ......................9 1.4 Operation Modes ......................9 2 General Introduction to the Controller ..............10 2.1 Home Page ........................10 2.2 Menu Page ........................11 2.3 Backlight .........................12...
Page 4
3.4.4 Error log ........................30 3.4.5 Version ........................31 3.5 General Setting .......................31 3.5.1 Time and clock .......................31 4. Intelligent Control ....................32 4.1 Installing GREE+ APP.....................33 4.2 Setting Other Functions ....................39 4.2.1 Home management ....................39 4.2.2 Help ........................40 4.2.3 Feedback ........................41 5.
Air-to-water Heat Pump Split Versati SPLIT TYPE Safety Notices (Please be sure to abide ) WARNING: If not abide strictly, it may cause severe damage to the unit or the people. NOTE: If not abide strictly, it may cause slight or medium damage to the unit or the people.
Page 6
Air-to-water Heat Pump Split Versati SPLIT TYPE WARNING Once abnormality Don't operate the unit with Before likeburning smell occurs, wet hand. installation,please see please cut off the power if the voltage of local supply immediately and place accords with then contact with service that on nameplate center.
Page 7
Air-to-water Heat Pump Split Versati SPLIT TYPE Before cleaning please cut The power supply must User can not change off the power supply. adopt special circuit with power cord socket leakage switch and enough without prior consent. capacity. Wiring working must be done by professionals.
Page 8
Air-to-water Heat Pump Split Versati SPLIT TYPE Don't step on the top of the Never block the air inlet and Keep pressurized unit or place anything on it. outlet of unit. spray, gas holder and so on away from the unit above 1m .
Page 9
Air-to-water Heat Pump Split Versati SPLIT TYPE WARNING Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. Should repair be necessary, contact your nearest authorized service centre. Any repairs carried out by unqualified personnel may be dangerous.
Page 10
Air-to-water Heat Pump Split Versati SPLIT TYPE To realize the function of the air conditioner unit, a special refrigerant circulates in the system. The used refrigerant is the fluoride R32, which is specially cleaned.The refrigerant is flammable and inodorous. Furthermore, it can leads to explosion under certain conditions.
Air-to-water Heat Pump Split Versati SPLIT TYPE 1. Product Data 1.1 Outline Dimensions (1) Outline Dimensions of Outdoor Units Outline Dimensions of the Outdoor Unit with a Single Fan Outline Dimensions of Outdoor Unit with Double Fans Model 4/6kW 1000 8/10/12/14kW 1067 12/14/16kW(dual-fan)
Page 12
Air-to-water Heat Pump Split Versati SPLIT TYPE (2) Outline Dimensions of Indoor Units...
Air-to-water Heat Pump Split Versati SPLIT TYPE 1.2 Operation Temperature Range Mode Heat Source Side Temperature (°C) User Side Temperature (°C) Heating -30~35 20~65 Cooling -15~48 5~25 Water Heating -30~45 40~80 1.3 Sizes of Pipelines Name Size Model Leaving Water Pipe Returning Water Pipe Gas-side Pipe GRS-CQ4.0PdG/NhH3-E(O), GRS-CQ6.0PdG/NhH3-E(O)
Air-to-water Heat Pump Split Versati SPLIT TYPE [Notes] ●The ON/OFF icon will turn to green when the control panel is turned on. ●Under the “Water heating” mode, what displayed at the upper corner of the control panel is the water temperature of the water tank.
Air-to-water Heat Pump Split Versati SPLIT TYPE 3 Operation Instructions to the Controller 3.1 ON/OFF [Operation Instructions] At the menu page, by touching ON/OFF, the control panel will be turned on/off. [Notes] ●It is defaulted to be OFF upon first power-on. ●ON/OFF operation will be memorized by setting “On/Off Memory”...
Air-to-water Heat Pump Split Versati SPLIT TYPE Function Setting Item Range Default Remarks Cool Heat 1. When the water tank is unavailable, then only Mode Hot water Heat “Cool” and “Heat” are available. Cool + Hot water Heat + Hot water When the water tank is unavailable, it will be Fast hot water On/Off...
Air-to-water Heat Pump Split Versati SPLIT TYPE [Notes] ●The default mode is “Heat” upon first power-on. ●Mode setting is allowed only when the control panel is turned off, otherwise a dialog box will pop up, saying “Please turn off the system first!” ●When the water tank is unavailable, only “Heat”...
Air-to-water Heat Pump Split Versati SPLIT TYPE ●It will be memorized upon power failure. ●This function is unavailable to the heating only unit and the mini chiller. 3.2.5 Quiet mode [Operation Instructions] At the function setting page with the control panel being turned off, by touching “Quiet mode”, there will be a choice box, where “Quiet mode”...
Air-to-water Heat Pump Split Versati SPLIT TYPE ●It works under the “Cool” or “Heat” mode. Under the “Cool +Hot water” or “Heat +Hot water” modes, it works only when the current mode is “Cool” or “Heat”. Under the “Hot water” mode, it doesn’t work. ●Temperature setting relative to the cooling mode is unallowed to the heating only unit.
Air-to-water Heat Pump Split Versati SPLIT TYPE [Notes] ●When this function has been activated, at the ‘Weekly timer” setting page, some week day can be set to “Holiday release”. In this case, the setting of the “Weekly timer” at this day is invalid unless it has been manually set to “Valid”.
Page 23
Air-to-water Heat Pump Split Versati SPLIT TYPE 3.The option “Mode” is used to time the desired mode; “WOT-Heat” and “T-water tank” is used to set the corresponding water temperature; “Period” is used to for time setting. After that, by touching the “Save” icon, all settings will be saved.
Air-to-water Heat Pump Split Versati SPLIT TYPE 3.2.11 Temp. timer At the function setting page, go to the “Temp.timer” setting page. At the “Temp.timer” setting page, it can be set to “On” or “Off”. Select “Period 1”/“Period 2” and a window will pop up, where time period can be set. Then select “WT-Heat1/ WT-Cool 1/2”...
Air-to-water Heat Pump Split Versati SPLIT TYPE ●When the running mode is set to “Heat”, if “Other thermal” or “Optional E-Heater” is set to “Without”, the main unit will fail to go to the “Emergen. mode”. ●When the main unit performs “Heat” under “Emergen. mode” and the control panel detects “HP-Water Switch”, “Auxi.
Air-to-water Heat Pump Split Versati SPLIT TYPE 3.2.14 Preset mode [Operation Instructions] At the function setting page, select “Preset mode” and go to the corresponding setting page. At the time period setting page, each time period can be set to “Valid” or “Invalid”. The option “Mode”...
Air-to-water Heat Pump Split Versati SPLIT TYPE “Time lag” is used for March and “Time lead” is for October. For example, if March 30 is the last Sunday of this month, when the system clock goes to March 30, 2:00, the system clock will be lagged automatically for one hour.
Page 29
Air-to-water Heat Pump Split Versati SPLIT TYPE Parameter Setting Range Range Displayed Full Name Default Remarks Name (°C) (°F) Leaving water WOT-Cool 5~25°C 41~77°F 18℃ /64°F temperature for cooling Leaving water WOT-Heat 20~65°C 68~149°F 45°C/113°F temperature for heating Room temperature for RT-Cool 18~30°C 64~86°F...
Air-to-water Heat Pump Split Versati SPLIT TYPE Parameters from No.10 to No.19 are for setting target water temperature under the SG function. When SG (smart grid) has been activated, the unit after receiving the grid signal will go under the control as stated below. Target water temperature Running Standard...
Air-to-water Heat Pump Split Versati SPLIT TYPE 3.4.1 Status [Operation Instructions] 1.At the “VIEW” page, by touching “Status”, it is able to view status of the main unit, as shown in the figure below. Status View Page Viewable Status Full Name Displayed Name Status Status of the compressor...
Air-to-water Heat Pump Split Versati SPLIT TYPE 3.4.2 Parameter [Operation Instructions] 1.At the “VIEW” page, by touching “Parameter”, it is able to view each parameter of the main unit, as shown in the figure below. Parameter View Page Viewable Parameters Full Name Displayed Name Environmental temperature...
Air-to-water Heat Pump Split Versati SPLIT TYPE 3.4.3 Error [Operation Instructions] At the “VIEW” page, by touching “Error”, it is able to view errors of the main unit, as shown in the figure below. Error View Page [Notes] ●The control panel can display real-time errors. And at these pages, all errors will be listed here. ●Each page displays at most 5 pieces of errors.
Air-to-water Heat Pump Split Versati SPLIT TYPE Full Name Displayed Name DC bus under-voltage or voltage drop error DC under-vol. DC bus over-voltage DC over-vol. AC current protection (input side) AC curr. pro. IPM defective IPM defective PFC defective PFC defective Start failure Start failure Phase loss...
Air-to-water Heat Pump Split Versati SPLIT TYPE [Notes]: ●The error log can accommodate up to 20 pieces of error. Name and occurrence time are available for each error. ●When error log exceeds 20, the latest will supersede the earliest. 3.4.5 Version [Operation Instructions] At the “VIEW”...
Air-to-water Heat Pump Split Versati SPLIT TYPE Time & Date Page 2.The roller indicated by the red circle as shown in the figure below can change the date and time value. After it, by touching the “Save” icon, this setting will be saved and directly displayed; while by touching the “Back” icon, this setting will give up and the control panel will directly go back to the “GENERAL”...
Antenna type: PCB ANT Antenna gain: 1.5dBi Label location:paste in the shield Transmission power: 11b:18dBm 11g:14dBm 11n:13dBm 4.1 Installing GREE+ APP [Operation Instructions] 1. Scan the following QR code with your smart phone to download and install GREE+ APP directly.
Page 38
Air-to-water Heat Pump Split Versati SPLIT TYPE 2. Open GREE+ APP and click “Sign up” for registration. 3.Except signing at in the prompt interface, you can also enter the homepage and click the profile picture at the left upper corner to sign in.
Page 39
Air-to-water Heat Pump Split Versati SPLIT TYPE 4. Click "+" at the right upper corner of homepage to add device. (6) Automatically search the nearby devices When a device that can be connected to the network is found nearby, the icon of the device that can be connected to the network will be displayed at the top of the page.
Page 40
Air-to-water Heat Pump Split Versati SPLIT TYPE (7) Add devices by selecting the appliance type If automatically search fails to find the nearby devices, please choose to add devices by selecting the appliance type, and click the type of the device to be added.
Page 41
Air-to-water Heat Pump Split Versati SPLIT TYPE After selecting“VERSATI”, the APP interface will provide relevant operation instructions.
Air-to-water Heat Pump Split Versati SPLIT TYPE 4.2 Setting Other Functions Click the profile picture at the left upper corner of homepage and set each function in the following menu. 4.2.1 Home management Click “Home management” to create or manage family. You can also add family members according to the registered account.
Therefore, once the water tank has been installed, the water tank must be set to ‘’With”, otherwise GREE will not be responsible for this abnormal operation. Never frequently make the unit on/off and close the manual valve of the water system during operation of the unit by users.
Air-to-water Heat Pump Split Versati SPLIT TYPE Malfunctions Reasons Troubleshooting Enhance heat insulation efficiency of the Poor heat insulation of water system. system. Poor heat exchange of evaporator. Poor efficiency of hot water Check if air in or out of unit is normal and Poor refrigerant of unit.
Page 48
Air-to-water Heat Pump Split Versati SPLIT TYPE Full Name Displayed Name Error Code Protection for the flow switch of the heat pump HP-Water Switch Welding protection to the auxiliary electric heater 1 of the Auxi. heater 1 heat pump Welding protection to the auxiliary electric heater 2 of the Auxi.
Page 49
GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI Add: West Jinji Rd, Qianshan, Zhuhai,Guangdong, China, 519070 Tel: (+86-756) 8522218 Fax: (+86-756) 8669426 global@cn.gree.com www.gree.com...
Need help?
Do you have a question about the Versati IV GRS-CQ4.0PdG/NhH3-E and is the answer not in the manual?
Questions and answers
Please give me information how to connet the cables. There are many ways to connect, but what is the right connection.
To connect the cables for the Gree GRS-CQ4.0PdG/NhH3-E:
1. Use power supply wire and earth wire with a minimum sectional area of 1.5 mm².
2. Ensure power cables are protected with rubber or plastic to prevent damage from metal edges.
3. Fix power cables securely near the electric cabinet to protect the power terminal from external force.
4. Ground the power cable reliably.
5. For 2-way valve wiring:
- For a Normally Open valve: connect to wire (OFF) and wire (N).
- For a Normally Closed valve: connect to wire (ON) and wire (N).
- (OFF) and (ON) are line signals from the PCB; (N) is the neutral signal.
Power supply requirement: 400V, 3-phase, 50Hz. Use a 16A leakage switch.
This answer is automatically generated
How do i find information which cable belongs to which socket ?
To find information about which cable belongs to which socket for the Gree GRS-CQ4.0PdG/NhH3-E, refer to the electric wiring section of the manual. It includes wiring principles, signal types (e.g., ON, OFF, N for 3-way valve control), and cable specifications. Only qualified electricians should perform the wiring, and copper wires must be used. Power cables must be laid through proper channels and protected to prevent damage.
This answer is automatically generated
