Before using this air conditioner, please read the following instructions carefully and keep
this manual along with your proof of purchase in a safe place for future reference.

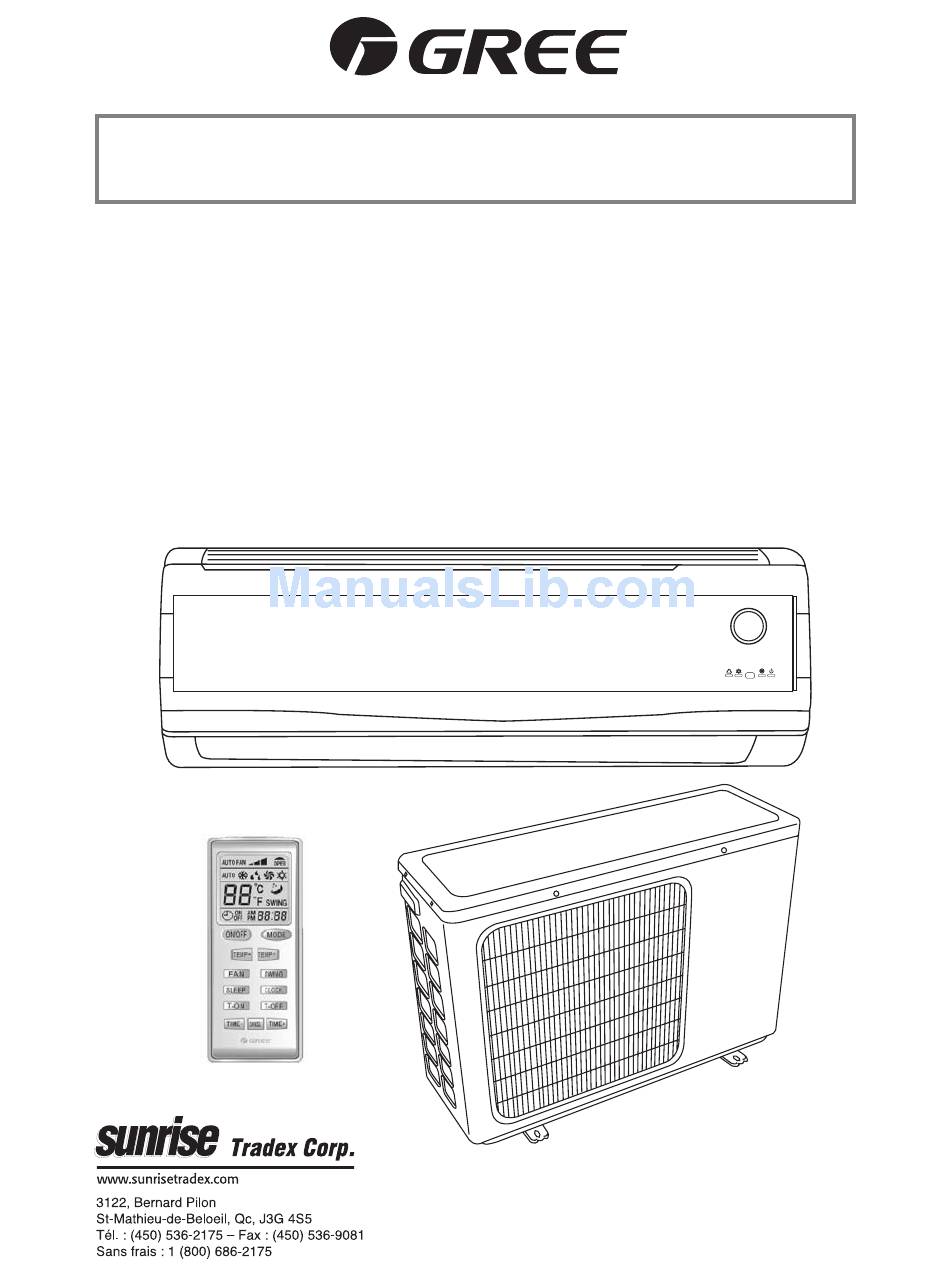

OWNER'S MANUAL
CANADIAN STANDARDS
MINI-SPLIT HEAT PUMP (SEER 16)
12,000 BTU
12,000 BTU COOLING
13,000 BTU HEATING
MODELS: 13-05020 / 13-05024
© Copyright, Sunrise Tradex Corp., 2007
00228-16/01/07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 13-05020 and is the answer not in the manual?

Questions and answers

John
July 3, 2025

I need a new remote. Where can i find a new one please?

0

Related Manuals for Gree 13-05020

Summary of Contents for Gree 13-05020

  • Page 1 OWNER’S MANUAL CANADIAN STANDARDS MINI-SPLIT HEAT PUMP (SEER 16) 12,000 BTU 12,000 BTU COOLING 13,000 BTU HEATING MODELS: 13-05020 / 13-05024 © Copyright, Sunrise Tradex Corp., 2007 00228-16/01/07...

  • Page 2: Table Of Contents

    CONTENTS Safety precautions .........2 Air conditioner diagram .

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Legend of symbols used in this manual : Not to do. Feature of the appliance (not a defect). Pay attention. Disconnecting switch Only to the attention of electricians or technicians : To eliminate risks of short circuits and fire hazards, do not unplug the air conditioner or switch off the circuit breaker when unit is running.

  • Page 4: Air Conditioner Diagram

    AIR CONDITIONER DIAGRAM Actual model may differ from the diagram INDOOR UNIT Surface panel Louvers Auto Heating Cooling OUTDOOR UNIT Air in Front case Display Air in Air out Remote control Power/Run Drain hose Air out Suction and liquid refrige- rant piping and wiring...

  • Page 5: Remote Control

    REMOTE CONTROL 2 AAA - 1.5V BATTERIES POWER THE REMOTE CONTROL • Do not use rechargeable batteries How to insert the batteries 1. Following the arrows (see Figure), remove the battery cover. 2. Insert the 2 batteries, making sure that the terminals (+/-) are correctly fitted.

  • Page 6: Remote Control Operation

    REMOTE CONTROL OPERATION MPORTANT: Some functions on this remote control are not available on models sold in Canada. The usage and operation of these functions are therefore not detailed in this manual. NOTE: • Make sure that there is no obstruction between the remote and the inside unit. •...

  • Page 7: Remote Control Operation

    REMOTE CONTROL OPERATION LIQUID CRYSTAL DISPLAY Show all set functions. ON/OFF Press this key to turn the unit on or off. Press T-ON to start the air conditioner at a desired time. Once pressed, ON and clock icon will flash. With the TIME- and TIME + button, set the desired start up of the unit.

  • Page 8: Safety Notes

    SAFETY NOTES Always set the most adequate temperature. It is recommend to set the temperature about 5°C cooler than the outside temperature to reduce energy costs. Keep doors and windows closed when the air conditioner is running, otherwise it could affect the air conditioner cooling efficiency.

  • Page 9: Maintenance

    MAINTENANCE CAUTION Turn power off and then cut the circuit-breaker off before cleaning the air conditioner. Never spray water on the indoor and outdoor units when cleaning the air conditioner. Always use a dry soft cloth and warm water, without or with a mild detergent. Cleaning the front panel 1.

  • Page 10: Maintenance

    MAINTENANCE Active-carbon air filters 1. Remove the air filters, as described in step #1 of “Cleaning the air filters” section. 2. Take the active-carbon air filters out of the bag and place them into the filter frames. • Be cautious not cut yourself on the fins. 3.

  • Page 11: Troubleshooting

    TROUBLESHOOTING WARNING: Do not attempt to repair your system by yourself. It can cause electric shock or fire. Please verify the following items before calling for a technician, it can save you time and money Problem The air conditioner does not run immediately after the power key is pressed on.
  • Page 12 TROUBLESHOOTING If any of the following situations occur, stop all operations and call the Sunrise Tradex Corp. Customer Service: 1-800-686-2175 Unusual noise can be heard during operation. Power fuse or switch often breaks. Carelessly splash water or something into air conditioner. Electrical lines and power plug are very hot.

  • Page 13: Technical Specifications

    Do not operate unit if outside temperature range as shown below, or you could damage compresssor and void the warranty Working temperature range Maximum cooling Minimum cooling Maximum heating Minimum heating 13-05020 / 13-05024 Cool/Heat Air cleaner 2,500 W (1,350-3,200 W) 2,700 W (1,750-4,000 W) 115 V 60 Hz 3.53/3.86 A...

  • Page 14: Installation Setup Diagram

    INSTALLATION SETUP DIAGRAM Space to the wall IMPORTANT NOTES • The installation must be done by trained and qualified service personnel with reliability according to this manual. • It is important to have your mini-split air conditioner installed by a Sunrise Tradex Corp. certified installer for your warranty to be valid.

  • Page 15: Installation Location

    INSTALLATION LOCATION INDOOR UNIT 1. The inlet and outlet should not be covered so that the outflow air can reach all parts of the room. 2. Install in a location where is permitting easy connection with the outdoor unit. 3. A location from which the condensation water can be drained out conveniently. 4.

  • Page 16: Installation Instructions

    INSTALLATION INSTRUCTIONS INSTALL THE REAR PANEL 1. Always mount the rear panel horizontally. 2. Fix the rear panel on the selected location with screws supplied with the unit. 3. Be sure that the rear panel has been fixed firmly enough to withstand the weight of an adult of 60 kg (132.3 lbs.), furthermore, the weight should be evenly shared by each screw.

  • Page 17: Electrical Wiring - Indoor Unit

    INSTALLATION INSTRUCTIONS ELECTRICAL WIRING - INDOOR UNIT *Only an electrician must do the connection of this unit. Note: The power of indoor unit is supplied by the outdoor unit.The outside disconnect switch must be installed between electrical panel and condensing unit. Operation procedures: 1.
  • Page 18 INSTALLATION INSTRUCTIONS Note: Wiring must be done by an electrician according to the local rules & regulations and this manual. The connecting wire should be correctly connected to circuit interface. Otherwise, it can cause a fire, electrical malfunction or cause damage to the unit. The diagram is shown as below: 1.

  • Page 19: Electrical Wiring - Outdoor Unit

    INSTALLATION INSTRUCTIONS ELECTRICAL WIRING - OUTDOOR UNIT • Open the cover of outdoor unit. • Make the wire connections according to the following instructions. 1.Remove the big handle 2.Remove the wire clamp and connect the end of the power connection cord with screws to the wiring terminal board.

  • Page 20: Installation Instructions

    INSTALLATION INSTRUCTIONS Installation of the indoor unit 1. When routing the piping and wiring from the left or right side of the indoor unit, cut off the tai- lings from the chassis in neces- sary (shown in Fig.4, (a), (b) (c)). (1) Cut off the tailings 1 when routing the wiring only.

  • Page 21: Air Purging And Leakage Test

    AIR PURGING AND LEAKAGE TEST 1. Take out the nut cover of the inlet for refrigerant. 2. Connect the tube of the vacuum watch with the vacuum pump, having the low- pressure end linking to the inlet for refri- gerant. 3.

  • Page 22: Test Operation

    TEST OPERATION 1. Before test operation (1) Do not switch on power before installation is finished completely. (2) Electric wiring must be connected cor- rectly and securely. (3) Cut-off valves of the connection pipes should be opened. (4) All the impurities such as scraps and thrums must be clear from the unit.

  • Page 23: Important Notice

    IMPORTANT NOTICE • Always consult a qualified electrician to install the unit. • Please contact the after sales service for any problems. • If you have to carry your air conditioner in down position, it is suggested to wait 12 hours before you restart the machine.

  • Page 24: Warranty

    LIMITED WARRANTY This air conditioner is covered by a warranty against defects in materials and workmanship including the compressor, if used for the applications specified in this owner’s manual, if installed by a Sunrise Tradex Corp. certified installer, for a period of ONE (1) year from the date of original purchase in Canada.
