0088
ACCU-CHEK and SOFTCLIX
are trademarks of Roche.
Made in Ireland for export to:
Roche Diagnostics
201 Boul. Armand-Frappier
Laval, Québec
CANADA, H7V 4A2
Accu-Chek Customer Care:
Montreal area: (450) 686-7100
Outside Montreal (toll free): 1-800-363-7949
www.accu-chek.ca
Roche Diagnostics GmbH
D-68298 Mannheim, Germany
www.accu-chek.com
A A
CCU-
CCU-
Compact Plus
BLOOD GLUCOSE MONITORING SYSTEM
C
HEK
HEK
User's Manual
for
Acoustic Mode
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Roche accu-chek compact plus
Summary of Contents for Roche accu-chek compact plus
- Page 1 ® Compact Plus BLOOD GLUCOSE MONITORING SYSTEM User’s Manual Acoustic Mode 0088 ACCU-CHEK and SOFTCLIX are trademarks of Roche. Made in Ireland for export to: Roche Diagnostics 201 Boul. Armand-Frappier Laval, Québec CANADA, H7V 4A2 Accu-Chek Customer Care: Montreal area: (450) 686-7100 Outside Montreal (toll free): 1-800-363-7949 www.accu-chek.ca...
- Page 2 On the packaging, on the type plate of the meter and on the lancing This user’s manual for the acoustic mode features three symbols that device you may encounter the following symbols shown here with draw your attention to important information. their meaning: This symbol indicates a possible risk of injury or of damage to Please consult User’s Manual...
- Page 3 The acoustic mode is intended for people who are visually impaired. The user’s manual for the acoustic mode contains separate descriptions When the acoustic mode is turned on, the meter will guide the user of how to use the meter and the lancing device. These are provided to through the testing process using beep tones;...
-
Page 4: Table Of Contents
The user’s manual for the acoustic mode does not replace the Contents user’s manual for the Accu-Chek Compact Plus meter. Please study the user‘s manual carefully and completely before using the meter in acoustic mode. It will provide you with all the infor- Description of the meter ............ -
Page 5: Description Of The Meter

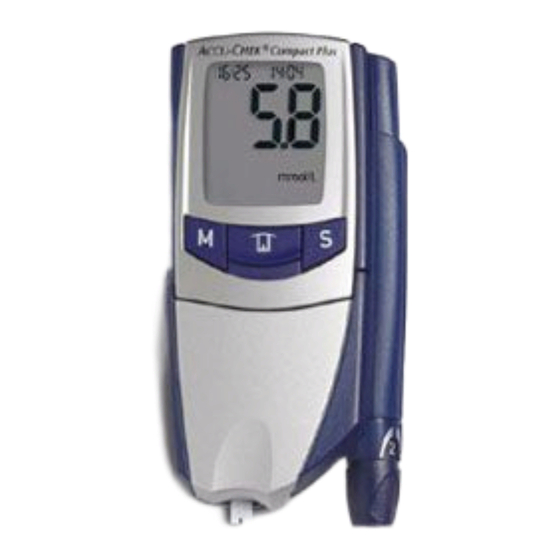

Description of the meter The meter is supplied with a lancing device docked onto it. Test strip guide Below the depression in the drum compartment cover, i.e. at the short end of the meter nearest to you, is the test strip guide. This is where the test strip will emerge. -
Page 6: The Lancing Device
The lancing device The lancing device is not round like a ballpoint pen, but has four sides that are different, and have rounded edges. On the two narrow sides of When the buttons are facing upwards, the lancing device is located on the lancing device are two narrow grooves that start below the plunger the right side of the meter. -
Page 7: Turning On The Acoustic Mode
Turning on Acoustic Mode Inserting or replacing batteries With the meter turned off, press the right-hand button When the batteries are low, the meter emits three double beeps (2 short (S button). beeps three times in quick succession) when you turn it on. The meter turns on without advancing a test strip. - Page 8 Insert new batteries. When you replace the batteries, the year, time and date settings Ensure that the flat, smooth end of the right-hand battery (minus only remain saved as long as end) is pointing downwards and the end with the rounded projection you do not take longer than two minutes to change the (plus end) is pointing upwards.
-
Page 9: Inserting Or Replacing The Test Strip Drum
Inserting or replacing the test strip drum The test strip drum is a short cylinder that resembles a full spool of If there is a test strip drum in the meter: thread. One end of the test strip drum has a hole in the middle, the other Keeping hold of the drum compartment cover turn over the meter so end has a central, ring-shaped ridge. -
Page 10: Preparing The Lancing Device
Preparing the lancing device When the lancing device is docked onto the meter, the cap is at the end The lancet is a small rectangle with a flat and a rounded end. The of the meter where the test strip guide is also located. At the upper end rounded end is the protective cap that is attached to the lancet needle. -
Page 11: Testing Your Blood Glucose
Testing blood glucose The cap rotates and is used to adjust the lancet penetration depth. Be- When you turn on the meter to test blood glucose, shield it from very strong light sources (e.g. direct sunlight, studio lighting, spot tween the cap and the lancing device there is a gap. The wider the gap, lights, etc.) until the test has finished and the result has been the smaller the depth setting. - Page 12 Press the plunger all the way down. The meter beeps when the test strip has drawn up sufficient blood. The plunger returns about a third of the way. The lancing device is Measurement starts automatically and 000 will appear in the display. now primed.
-
Page 13: Announcement Of The Results As Beeps
Announcement of results as beeps Numbers are announced through a corresponding number of short Following two short beeps signifying the end of measurement the meter beeps, e.g. four short beeps signify the numeral 4. announces the result – tens first, then units, then the decimal point as a very short beep, and finally the tenths. -
Page 14: Ejecting The Test Strip
Ejecting the test strip Ejecting the lancet Hold the meter over a waste bin with the test strip pointing Pull the cap off downwards and remove it from the lancing device. downwards. Hold the lancing device upright above a waste bin. Press the middle button (Test button) to turn the meter off. -
Page 15: Retrieving The Results From Memory
No beep sounds if the average of the last 7 days cannot be (see chapter entitled “Using Accu-Chek Compact Plus as an electronic calculated. notebook” in the User’s Manual for the meter). However, only the most... -
Page 16: Warnings And Error Messages
Warnings and error messages In the case of warnings, flashing symbols appear in the display. In the While you are retrieving the most recent result from memory, acoustic mode, the meter emits three double beeps to indicate a warn- following the double beep preceding announcement of the result ing. -
Page 17: Local Customer Support And Service
If you have any questions or concerns, call the Accu-Chek customer Information service If you have any questions on how to use your Accu-Chek Compact Plus care line: meter or Accu-Chek Softclix Plus lancing device, if any of the results you...
