Summary of Contents for Teufel ultima 20 mk 2

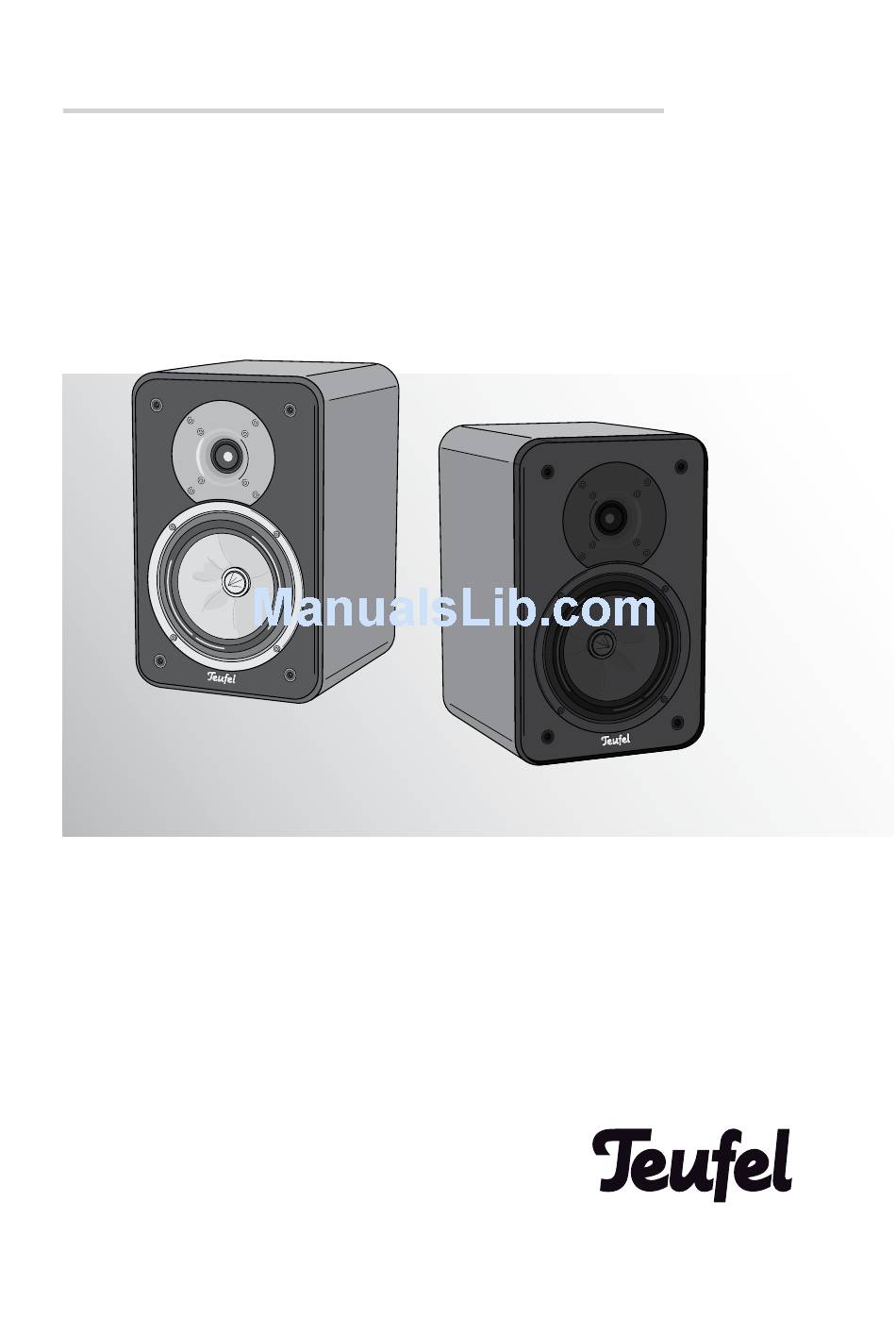

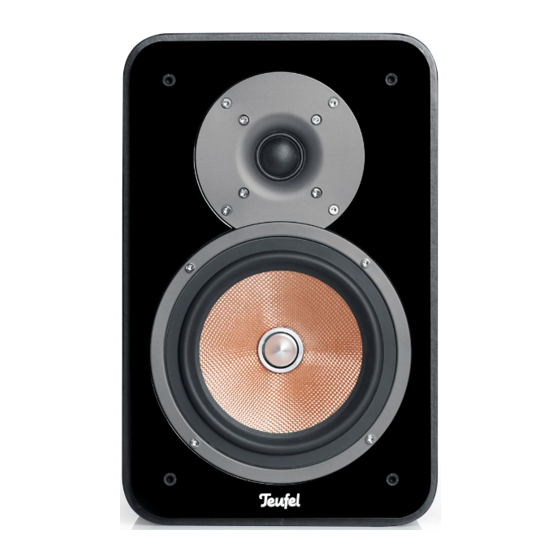

- Page 1 Technical Description and Operating Instructions Ultima 20 Mk 2 Stereo Shelf Speakers...
-
Page 2: Table Of Contents
Check to be sure ............................5 Location tips ..............................5 Removing the cover grill ..........................5 Connecting ..................................6 Connection variations ............................. 6 Connecting the cables ............................ 6 Care and cleaning .................................7 Protecting the environment ............................7 Technical data ................................8 • Ultima 20 Mk 2... -
Page 3: General Notes And Information
4322543. 2. Serial number and batch number respectively Located on the back of the unit, e.g. serial number: UL 04007480121A Many thanks for your support! • Ultima 20 Mk 2... -
Page 4: Safety Notes
• When the volume is set high, always keep a certain distance from the unit and never place your ear directly on the speaker. • To avoid damage to health, avoid extended listening at high volume. • Ultima 20 Mk 2... -
Page 5: Unpacking And Setup
When the cover grills are removed, high frequency output becomes clearer in particular. When reattaching the grids, ensure that the installation pins slide into the cor- responding holes on the speaker. • Ultima 20 Mk 2... -
Page 6: Connecting
3. Split the single wire down to approx. 30 mm on both ends and strip approx. 10 mm of insulation off of each cord. Twist the stripped single wire ends together so that no wire protrudes. • Ultima 20 Mk 2... -
Page 7: Care And Cleaning
For this reason, electrical equipment is labelled with the sumer is required by law to dispose of used displayed symbol. devices separate from household waste, e. g. at a collection point run by the communal authority • Ultima 20 Mk 2... -
Page 8: Technical Data
Technical changes reserved! You can find further technical data on our website. For questions, suggestions or other issues please contact our customer service department: Lautsprecher Teufel GmbH Tel.: 00800 200 300 400 (toll-free) No liability is accepted for the BIKINI Berlin Fax: +49 (0)30 - 300 930 930 accuracy of this information.
