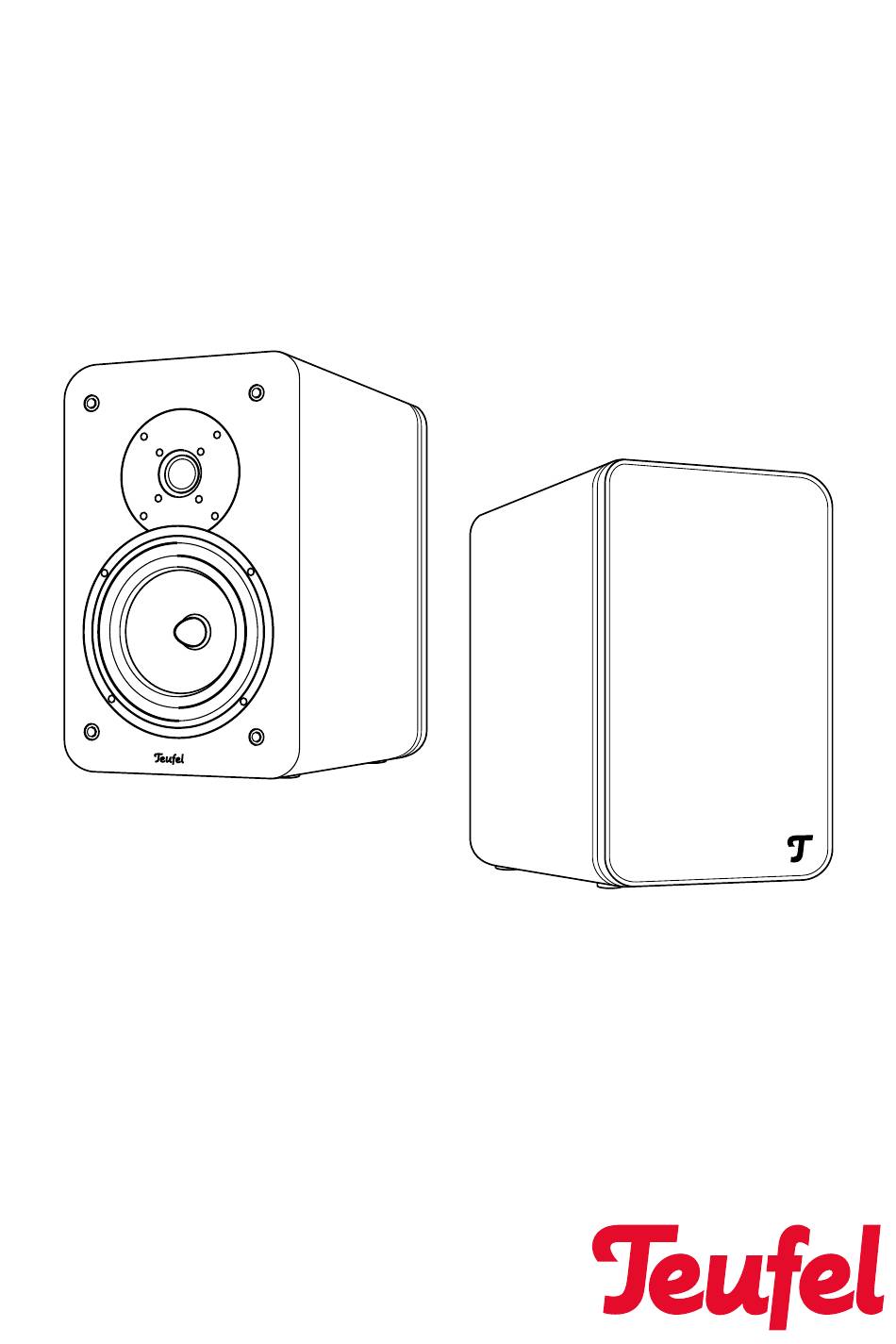

- Page 1 Technical Description and User Manual ULTIMA ® ULTIMA 20 MK4 Stereo bookshelf speakers...
-
Page 2: Table Of Contents
Lautsprecher Teufel We can only accept the return of the GmbH. speakers WITH THE ORIGINAL PACK- AGING. -
Page 3: For Your Safety
Only use the speakers as described in this user manual. Any other use will be deemed as not in accordance with the instructions and may lead to damage of property or even persons. • ULTIMA 20 MK4... -
Page 4: Explanation Of Terms
CAUTION This signal term indicates a low risk, which, if not avoided, may result in minor or moderate injury. NOTICE This signal term warns you of potential damage. • ULTIMA 20 MK4... -
Page 5: Unpacking And Setup
– Select a location away from heat sources and direct sunlight. – Lay the connector cords so that they do not pose a tripping hazard. – Do not place any heavy objects on the cables or the speakers. • ULTIMA 20 MK4... - Page 6 Rather, the speakers must be angled towards the wall Alternatively, you can create a greater distance by placing the speakers higher than 1.20 m (e.g. also on the ceiling) or further away • ULTIMA 20 MK4...
- Page 7 Close the connector The terminals are each marked red terminal by turning them clockwise. (+) and black (-). The cable has now been clamped in place. • ULTIMA 20 MK4...
-
Page 8: Removing The Protective Grids
(www.teufelaudio.com) in the “Acces- sories” area. They are mounted using the M6 threaded hole located in the speaker base. It also serves to fix corresponding speaker stands, which you can also purchase in our webshop. • ULTIMA 20 MK4... -
Page 9: Care And Cleaning
In case of stubborn marks, a mild soap solution may be used. – Do not use caustic cleaning products, white spirit, thinners, petrol or similar under any circumstances. Such cleaning agents may damage the delicate surface of the housing. • ULTIMA 20 MK4... -
Page 10: Technical Data
Low-range speaker: 165 mm High-range speaker: 25,4 mm Volume: 10,5 Liter Dimensions (W × D × H): × 251 × 335 Net weight: 6,2 kg You can find further technical data on our website. Technical changes reserved! • ULTIMA 20 MK4... -
Page 11: Declaration Of Conformity
Declaration of Conformity Lautsprecher Teufel GmbH declares that this product complies with the relevant European and national directives. The full text of the CE Declaration of Conformity can be found at this web address: www.teufel.de/konformitaetserklaerungen www.teufelaudio.com/declaration-of-conformity • ULTIMA 20 MK4... - Page 12 Telephone: 0800 200 300 40 (toll- free) Online support: teufelaudio.com/support Contact: teufelaudio.com/contact No responsibility is assumed for the correctness of this information. Technical changes, typographical errors and other errors reserved. Teufel ULTIMA 20 MK4 UM EN V...
