Summary of Contents for Teufel Ultima 60

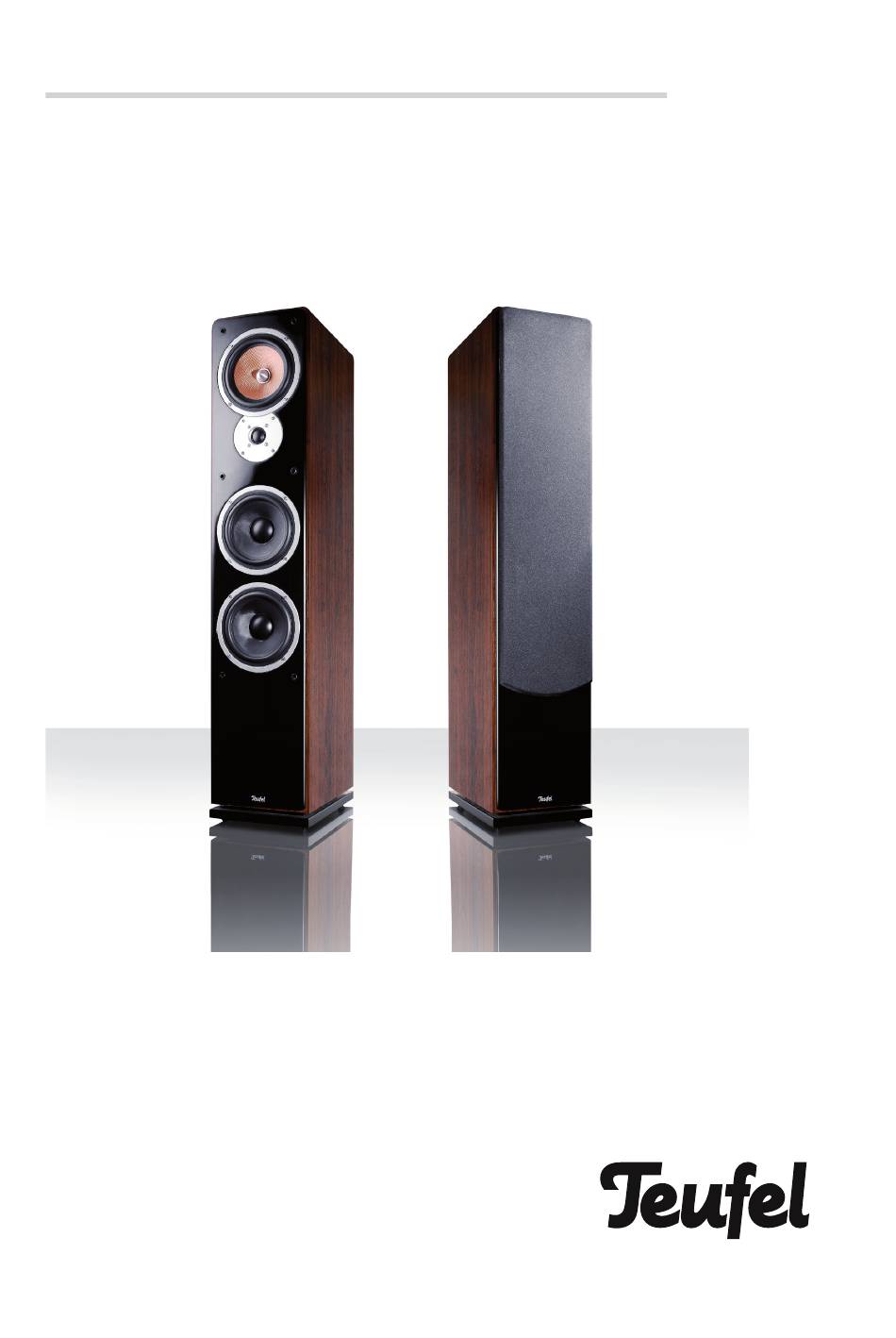

- Page 1 Technical description and operating instructions Ultima 60 Stereo column speakers with bi-wiring/bi-amping...
-
Page 2: Table Of Contents
Connecting ..................................6 Connection variations ............................. 6 Standard connection ............................6 Bi-wiring ............................... 6 Bi-amping ..............................6 Connecting the cables ............................ 6 Care and cleaning ................................7 Protecting the environment ............................7 Disposal of the unit ............................7 Technical data ................................7 • Ultima 60... -
Page 3: General Notes And Information
© Lautsprecher Teufel GmbH only possible if these components are also sold individu- Version 1.0 ally by Lautsprecher Teufel. In the case of the return of May 2009 one or more individual components the package price reduction offered by Lautsprecher Teufel on all com- Original packaging ponents in a package no longer applies. -
Page 4: Safety Notes
• When the volume is set high, always keep a certain distance from the unit and never place your ear di- rectly on the speaker. • To avoid damage to health, avoid extended listening at high volume. • Ultima 60... -
Page 5: Unpacking And Setup
Connector cables Due to differing customer requirements, the Right speaker Left speaker Ultima 60 series is shipped without connector cables. You can find suitable cables in our webshop (www.teufel.eu) in the “Accessories” area. Check to be sure Stereo triangle •... -
Page 6: Connecting
Turn the connector Standard connection terminals counterclockwise until With this connection, the Ultima 60 speakers are loose and then pull the contact connected like conventional speakers with one 2-core bridges out to the side. The top speaker cable each. -
Page 7: Care And Cleaning
2.54 cm (1“) Volume 45 litres Dimensions (W x H x D) 1,027 x 213 x 317 mm Net weight 18.5 kg This product conforms with Council of the European Union guidelines 2004/108/EC and 2006/95/EC Technical changes reserved. • Ultima 60... -
Page 8: Ultima
For questions, suggestions or criticism please contact our customer service department: Lautsprecher Teufel GmbH Tel.: +49 (30) - 300 9 300 No liability is accepted for the accuracy of Gewerbehof Bülowbogen - Aufgang D1 Fax: +49 (30) - 300 9 30 30 this information.
