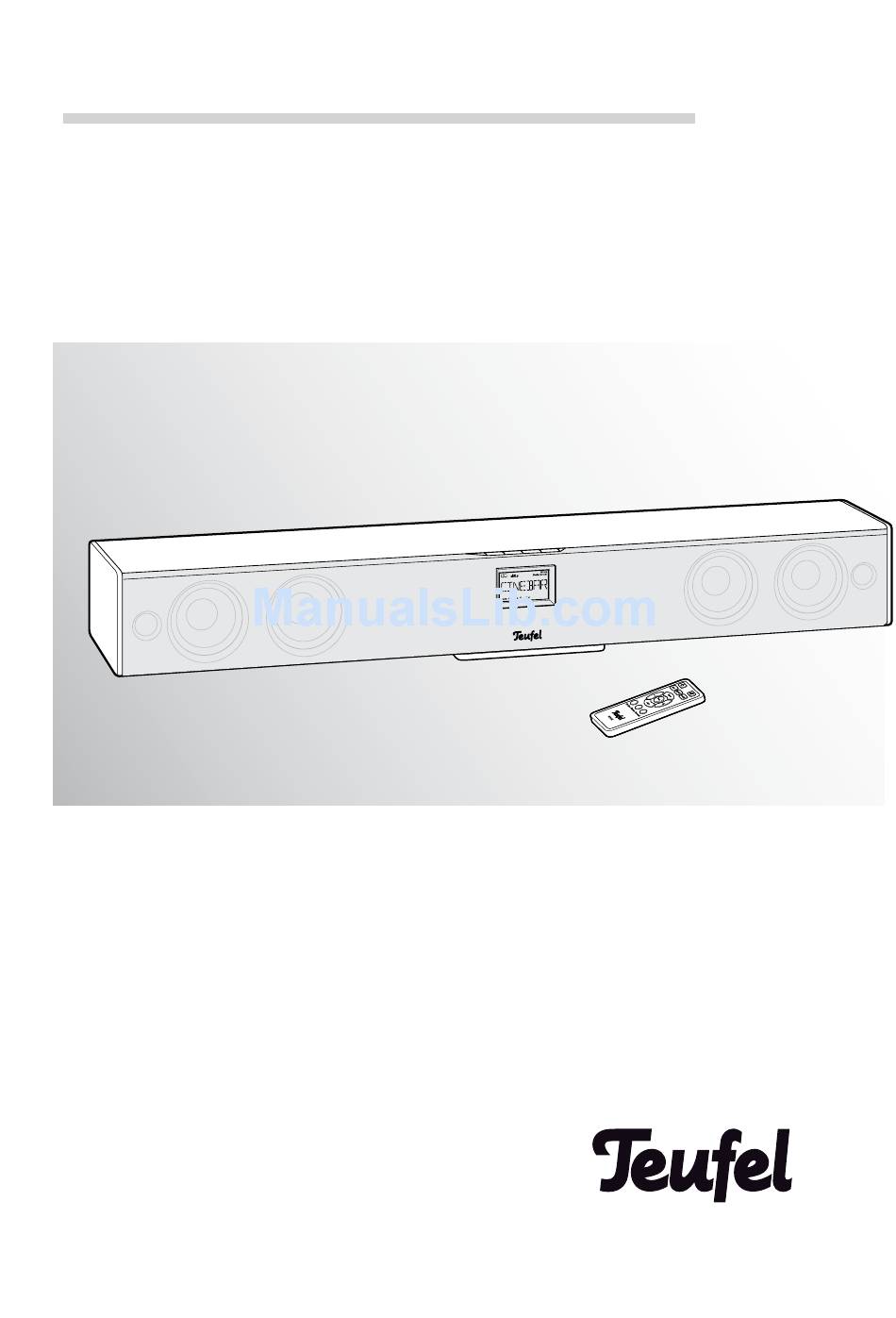

- Page 1 Technical Description and Operating Instructions Cinebar 21 Mk2 ® 2.1 Soundbar...
-
Page 2: Table Of Contents
Contents General notes and information ........ 3 Connection example ..........10 Notice ..............3 Settings ..............11 Original packaging ..........3 Basic functions ..........11 Trademarks ............3 Activating and deactivating .......11 Dolby ..............3 Selecting a source ..........11 DTS ............... 3 Adjust the volume ..........11 Complaints ............3 Mute (switching to mute) ........11 Contact ...............3... -
Page 3: General Notes And Information
In case of complaint we will need the following infor- prior notice and in no way constitutes any liability on mation to process your enquiry: the part of Lautsprecher Teufel GmbH. 1. Invoice Number No part of these instructions may be reproduced in... -
Page 4: Safety Notes
Safety notes Caution icons • Never open the unit’s housing. Repairs may only be carried out by an authorised You will find the following caution icons in these specialist workshop. Only parts which conform instructions: with the original unit specifications may be used Danger! Indicates a hazardous situation in this case. - Page 5 Fire hazard! Risk of damage! Improper use may lead to damage or fire. External influences may damage or de- stroy the device. • Do not place open flames such as burning can- • If the unit is to be left unsupervised for a long dles or similar on the unit.
-
Page 6: Overview
Overview Product contents a 1 x Cinebar 21 Mk2 ® b 1 x stand for Cinebar 21 Mk2 ® c 1 x remote control CB 21 RC d 1 x power cord e 1 x RCA cable for Cinebar subwoofer connection The active subwoofer is delivered separately. -
Page 7: Setup/Wall Mounting
Setup/wall mounting 1. Mark the hole distance between the two wall Setup location mounting profiles of 61.25 cm on the wall where you intend to install the Cinebar 21 Mk2. Use a ® Cinebar 21 Mk2 ® folding rule, pencil and level for this purpose. A location directly under the TV set is ideal. -
Page 8: Control Elements And Connections
Control elements and connections Cinebar 21 Mk2 – Top and front side ® Item Name Description Switch the device on or to standby Power Select an input jack (Aux In, Digital Source In Optical, Digital In Coaxial Increase (+) / Vol –/+ reduce (–) volume Display... - Page 9 Remote control Item Name Description Switch the Cinebar 21 Mk2 on/ ® to standby Select Digital In Optical (9) as a Optical source Mute the speakers Coaxial Select Digital In Coaxial (8) as a source Sub +/– Reduce subwoofer volume Activate and deactivate surround Sur- sound effects...
-
Page 10: Connection Example
Connection example TV set AUDIO OUT DIGITAL AUDIO OUT Cinch audio cable AUDIO OUT DVD-Player Cinebar 21 Mk2 ® Optical cable Cinch- coaxial cable Subwoofer DIGITAL AUDIO OUT COAXIAL Sat-Receiver AUDIO OUT This connection example only provides a few pos- Make sure that the sockets are easily accessible. -
Page 11: Settings
Settings Basic functions Activating and deactivating • With the Power (1) button or (11), you can switch your Cinebar 21 Mk2 on or to standby. The stand- ® by indicator (5) will illuminate in red in standby mode. Selecting a source Also see page 10, table 1. -
Page 12: Adjusting Bass And High-Range Tones
Adjusting bass and high-range tones In addition to the sound effects, you can also in- crease or decrease the bass and high-range tones individually. 1. Push the button Tone (20) several times if necessary. You will either see the setting for the bass tones (e.g. ) or for the high-range tones (e.g. -
Page 13: Care And Cleaning
Care and cleaning Clean your Cinebar 21 Mk2 regularly with a soft, ® Risk of damage! damp microfibre cloth. When doing so, please be Using the wrong cleaning materials may absolutely sure to observe the following instructions: damage the delicate surface of the case. •... -
Page 14: Technical Data
Technical data This product conforms with Council of the Dimensions (WxHxD) 91,8 x 11,5 x 11,0 cm European Union guidelines 2004/108/EC and Weight 6,6 kg 2006/95/EC. Operating voltage: 230 V~/50 Hz Max. power consumption 100 watts For further technical information, please view the product description on our website at www.teufelaudio.com. - Page 15 • Cinebar 21 Mk2 ®...
- Page 16 For questions, suggestions or other issues please contact our customer service department: Tel.: 00800 200 300 40 (toll-free) No liability is accepted for the ac- Lautsprecher Teufel GmbH Fax: +49 (0)30 - 300 930 930 curacy of this information. Technical Gewerbehof Buelowbogen - Aufgang D1 www.teufelaudio.com...
