SM82S
STEREO LINE MIXER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM82S and is the answer not in the manual?

Questions and answers

Related Manuals for Rane SM82S

Summary of Contents for Rane SM82S

  • Page 1 SM82S STEREO LINE MIXER...

  • Page 2: Important Safety Instructions

    • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by Rane Corporation could void the user's authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES-003.
  • Page 3 • Consulter un revendeur ou un technicien radio / TV expérimenté. ATTENTION: Les changements ou modifications non expressément approuvés par Rane Corporation peuvent annuler l'autorité de l'utilisateur à manipuler cet équipement et rendre ainsi nulles toutes les conditions de garantie.

  • Page 4: Stereo Mixer

    LOOP SEND outputs, and so on. No real magic there. You should be aware, however, that if you want to connect a mono source to the SM82S, use only the LEFT Input of a channel so that the mono source will drive both the Left and the Right channels.

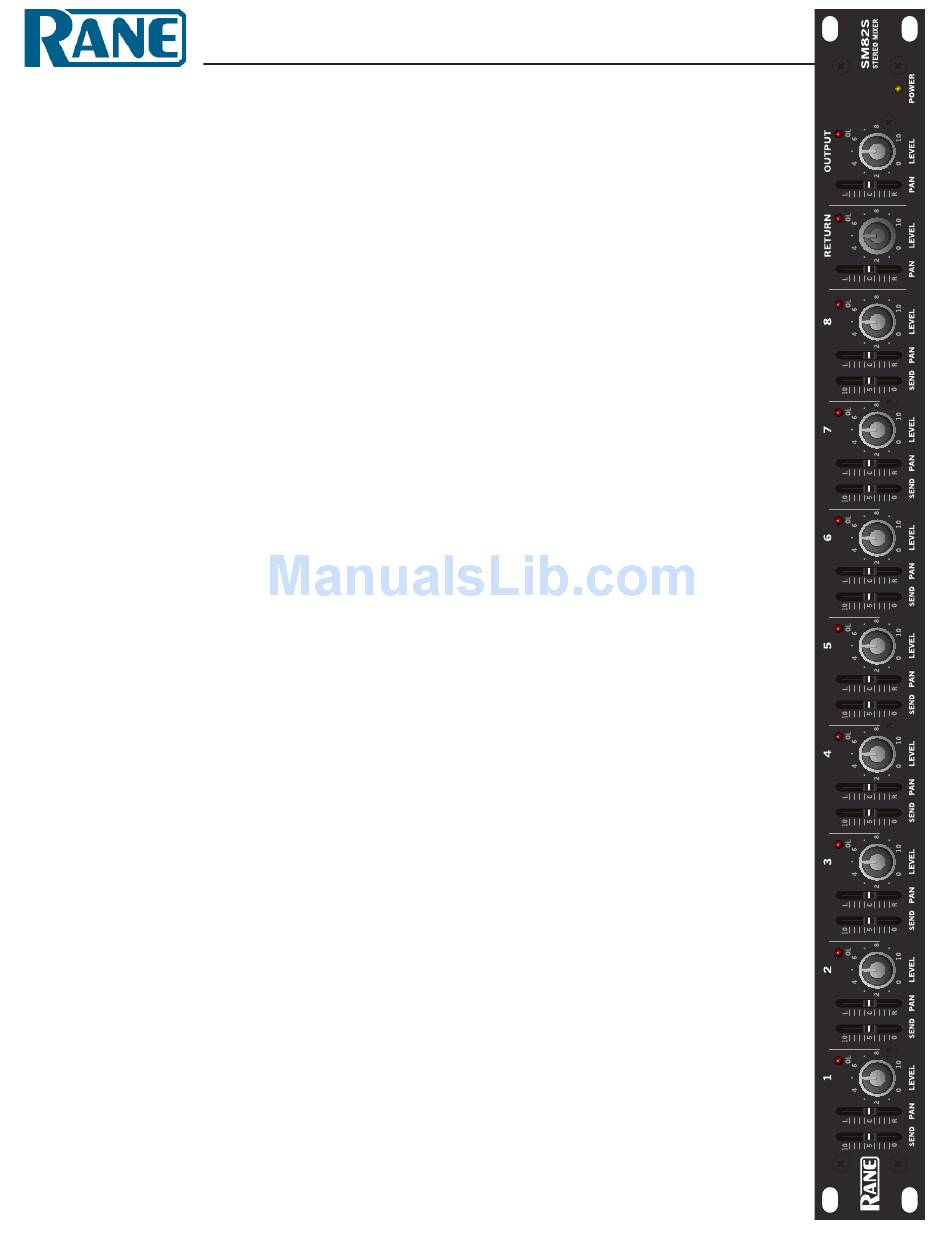

  • Page 5 FRONT PANEL DESCRIPTION RETURN OUTPUT SM82S STEREO MIXER SEND PAN LEVEL SEND PAN LEVEL SEND PAN LEVEL SEND PAN LEVEL SEND PAN LEVEL SEND PAN LEVEL SEND PAN LEVEL SEND PAN LEVEL LEVEL LEVEL POWER 1 Input LEVEL controls: are rotary stereo attenuators that adjust the amount of both Left and Right signals applied to an Input.
  • Page 6 1 Channel Input jacks: consist of eight pairs of unbalanced ¼" tip-sleeve jacks, used to connect any line-level signal source to the SM82S. As indicated, only the LEFT is to be used if the Input is mono and should therefore appear in both Left and Right chan- nels, depending on the position of the front panel PAN control.

  • Page 7: Block Diagram

    0 dB (MONO) RECEIVE BALANCE CH 7 LEFT (MONO) CH 8 RING RIGHT LOOP LEFT EXPAND INPUT RING RIGHT MAIN LEFT EXPAND INPUT ©Rane Corporation 10802 47th Ave. W., Mukilteo WA 98275-5000 USA TEL 425-355-6000 FAX 425-347-7757 WEB rane.com Manual-4 107271...
